ZPN-1000: How do I remove and install a module?

Topic

Remove ZPN Module
Install ZPN Module

Environment

  • Product:
  • Component: ZPN Series
  • Control System:

Steps

Remove Module

  1. Disconnect power to the display.

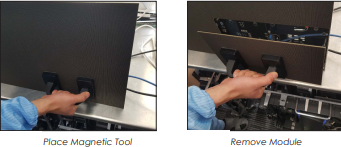

  2.  Place the supplied magnetic removal tool on the center of the module.
  1. Attach the tool to the module being removed and pull the module directly out. Refer to Figure 24.
Do not tilt the module, as this can result in broken LEDs. Reverse these steps to install a module.
Do not push on the edge of a module, as this will break LEDs. Place a palm on the surface of the module to push modules to the center of the display.

Module Removal Tool
  • Magnetic RT Part Number: TH-4157123
  • Vacuum RT Part Number: PR-589074-01
  • Provided with contract for installation, not expected to be a serviceable part.
  • There are two module removal tools:

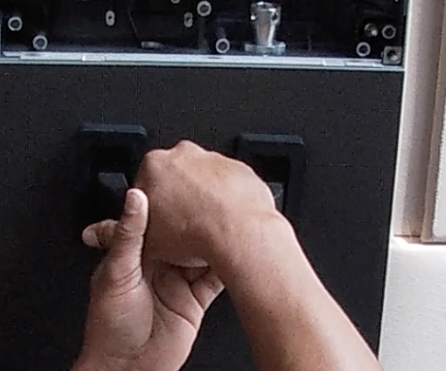

    • Magnetic tool - to be used with the standard design
      ZPN Mag Tool.png
  • Vacuum tool - to be used if the optional Aluminum housing plate is included on the modules

KB ID: 000027910
