FL-3000/4500: How do I measure output voltage on a new style power supply?

Topic

  • How do I measure output voltage on a new style power supply?
  • How do I measure output voltage on a new style power supply in a display manufactured after July 25th, 2023?

Environment

  • Product Family:  Digit and Price Displays​
  • Product: FL-3000, FL-4500
  • Component: Power Supply
  • Control System:

Steps

  1. There may be one power supply or two depending on the model of the display.
  2. Unplug the power plug from J3 on the driver.
  3. For a single power supply setup measure voltage between the red and black wire. You should get 24vDC.

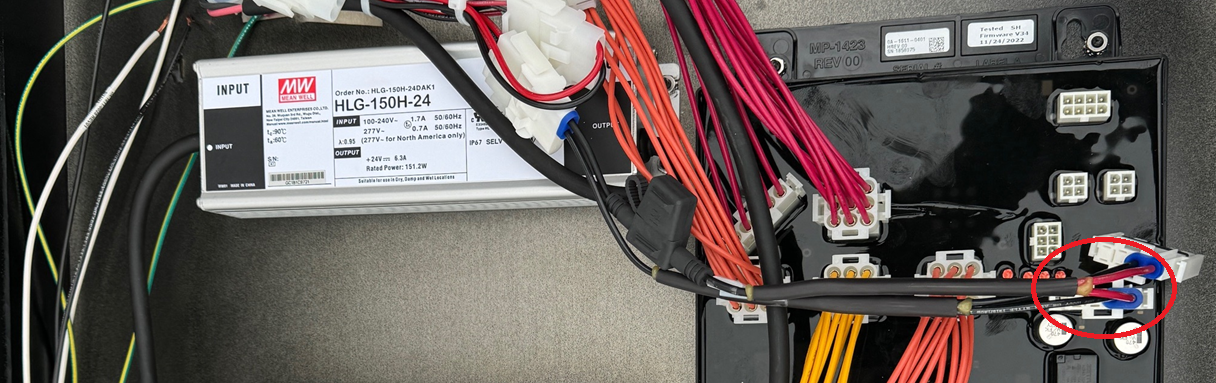

    1. Example of a single power supply setup.
      1. image.png
  4. For a dual power supply setup measure voltage across both sets of the red and black wires. You should get 24vDC.
    1. Example of a dual power supply setup.
      1. ​​​​​​​image.png
