BB-216X; Switch settings for built-in light strips

Topic

What are the settings for switches located at the top of the Transparent Shot Clock to control the tenths of a second shown on the digits and the light strips built into the clocks?

Environment

Product:  BB-2160/2161 Shot Clock
Component: BB-2160/2161 Shot Clock
Control System:  All Sport 5000 Series Console

Steps

TOP VIEW:
Top ViewBB-2160 Light Strip Dial Location.jpeg image.png

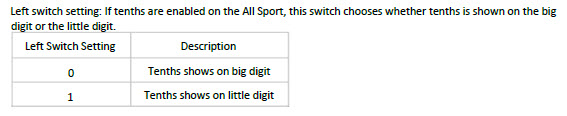

LEFT SWITCH:
Left Switch

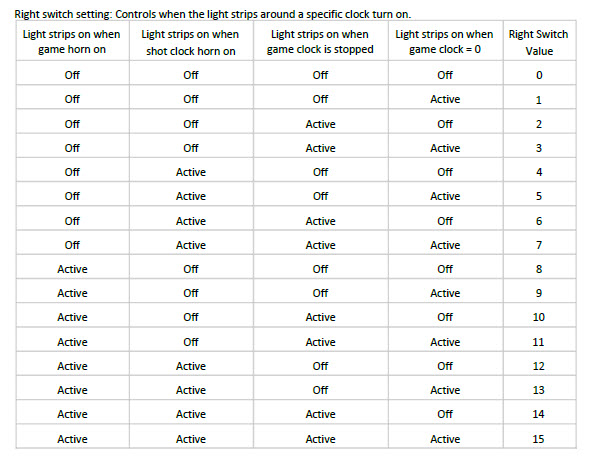

RIGHT SWITCH:
Right Switch

NOTE: Backboard light strips are controlled by the control enclosure. For switch settings see Shot Clock: What are the two sided transparent clear shot clock dip switch settings for the driver in the enclosure?
