Daktronics

RC-200 used as a start/stop handheld not operating the game clock, failed RJ-11 cable

Potential Symptoms

  • RC-200 handheld used as a start/stop handheld connects to the base station and we are able to control the game clock with the All Sport 5000 but we are not able to control the game clock with the RC-200.

Environment

  • Product: LED Scoreboard
  • Component: RC-200 used as a start/stop remote
  • Control System:

Cause

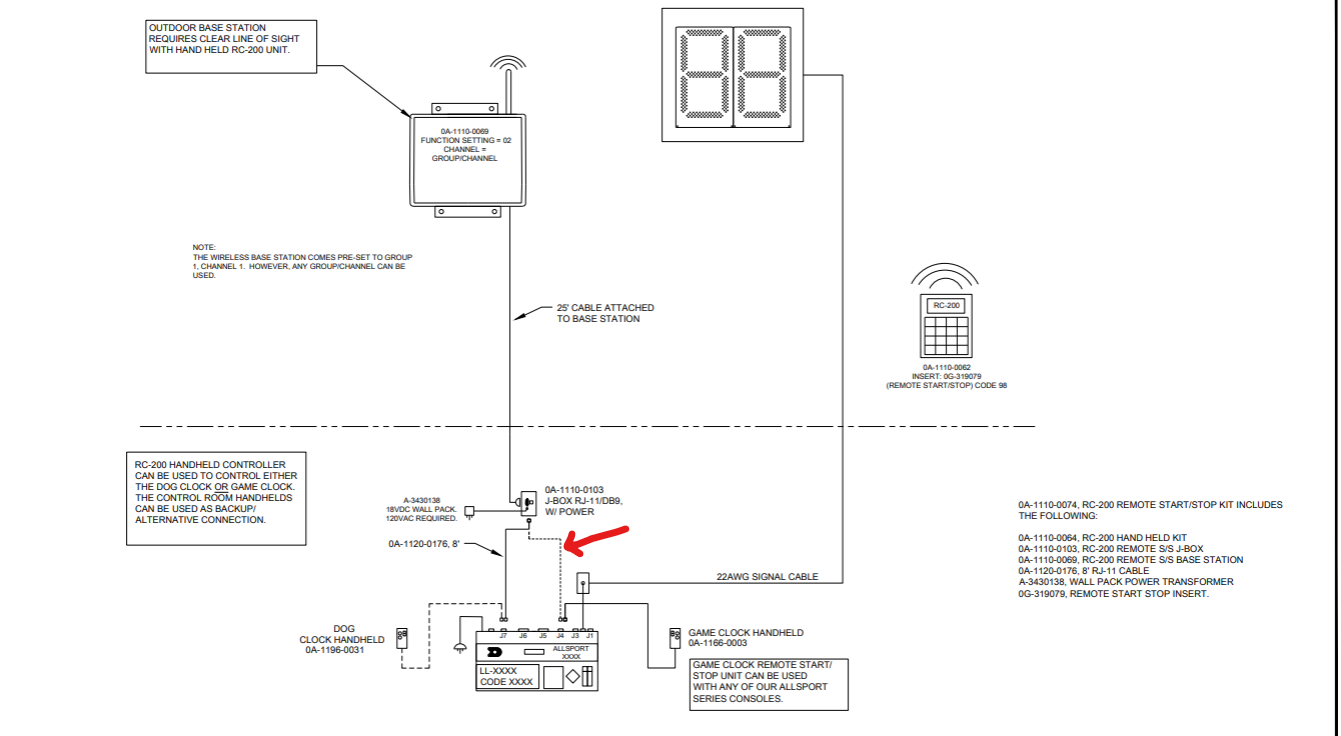

  • Failed RJ-11 cable between the base station j-box and J4 on the All Sport 5000.image.png

Resolution

  • Replace the RJ-11 cable.

KB ID: 000027724
