No Audio Out of SSR-100 Multimedia Mixer

Potential Symptoms

Inputs on the mixer show signal on the LEDs, but nothing on the output meters even when turned up.


Environment

  • Product Family: Audio Systems
  • Product: SSR-100 Gen III with Multimedia Mixer
  • Component: A-3505915 Multimedia Mixer
  • Control System: SSR-100

Cause

The fire alarm mute Normally Open / Normally Closed selection switch on the back of the mixer is set to the wrong position.
or
The fire alarm system is active or malfunctioning if connected to the mixer


Resolution

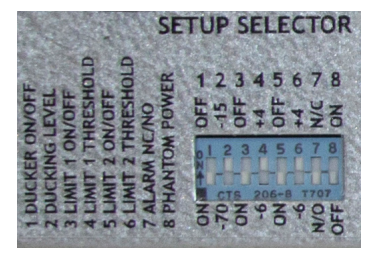

Switch 7 should be set to N/O position if no fire alarm wiring is connected
If fire alarm wiring is connected, verify with a fire alarm technician what setting the mixer needs to be set to and set the switch accordingly.

KB ID: 000027705
