LCD Digital Signage: Content is displaying on LCD upside down

Potential Symptoms

  • Image is upside down on LCD
  • VCS is showing content correct
  • DMP Monitor is showing content correct

Environment

  • Product: LCD
  • Component: DMP-8121, DMP-8122, DMP-8124
  • Control System: Venus Control Suite

Cause

  • LCD display was mounted upside down causing the image to display upside down as well.
    • This generally only occurs with Portrait setups, although it can potentially happen with a Landscape Setup;
      • Landscape Rotation is configured to 0 by default
      • Portrait Rotation is configured to 90 by default

Resolution

  • Mount the LCD in the correct physical orientation

Note: The steps for a multi LCD setup may become much more involved. It is recommended to have the display physically oriented the correct way if at all possible

For Temporary Operation


Follow the steps below only if the physical orientation cannot be corrected

1x1 single LCD systems

  • Access DMP interface
    • Select Outputs
      • Sign 1 - Sign Configuration
      • Output Location

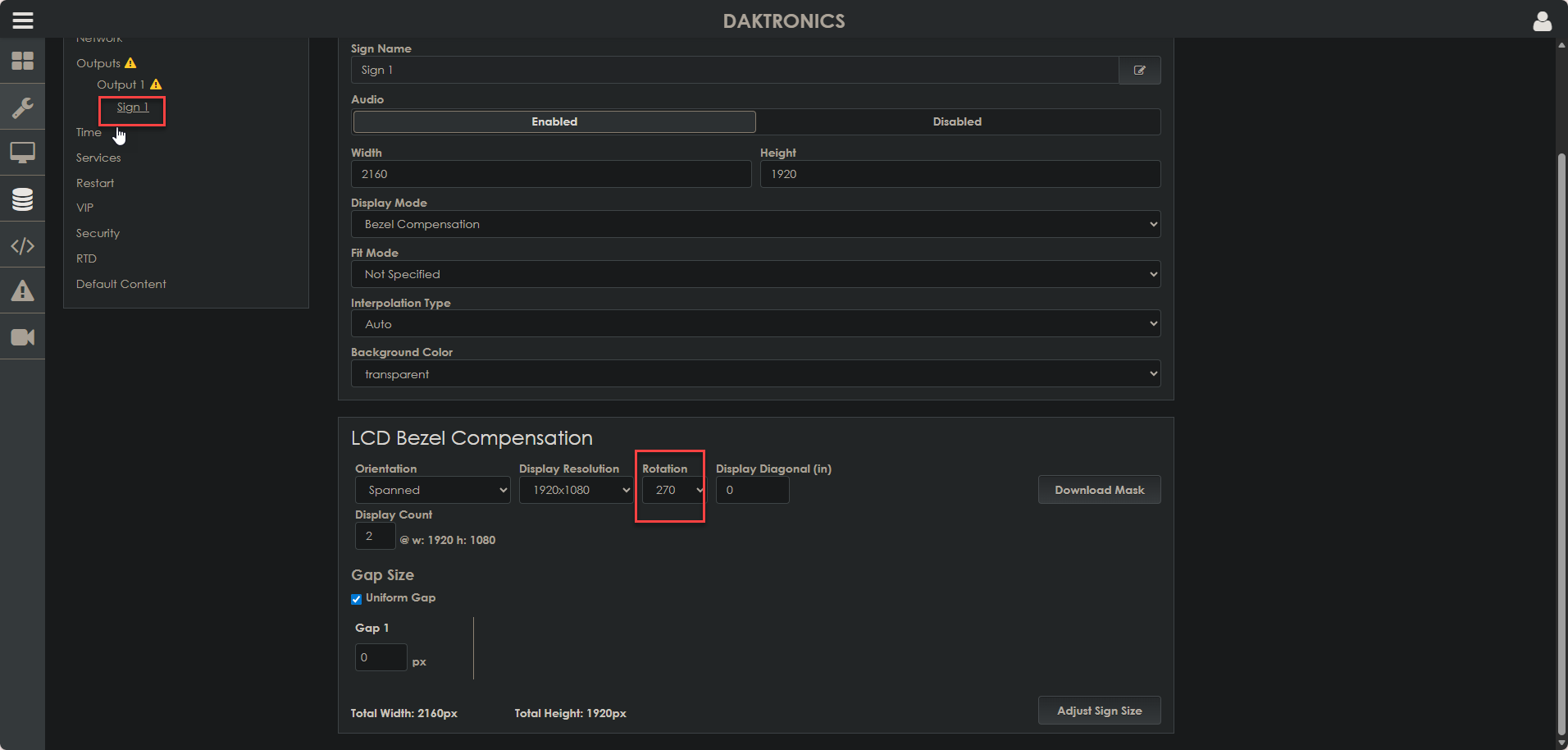

        • Note: If the display has Bezel Compensation, Rotation will be found under Bezel Compensation
          • Will need to change "Display Mode" to "Manual"
      • Edit "Rotation" accordingly
        • If Portrait - 270
        • If Landscape - 180

Multiple Display Setups

  • Access the DMP interface
    1. Access View Mode
      1. Under Outputs select Sign 1

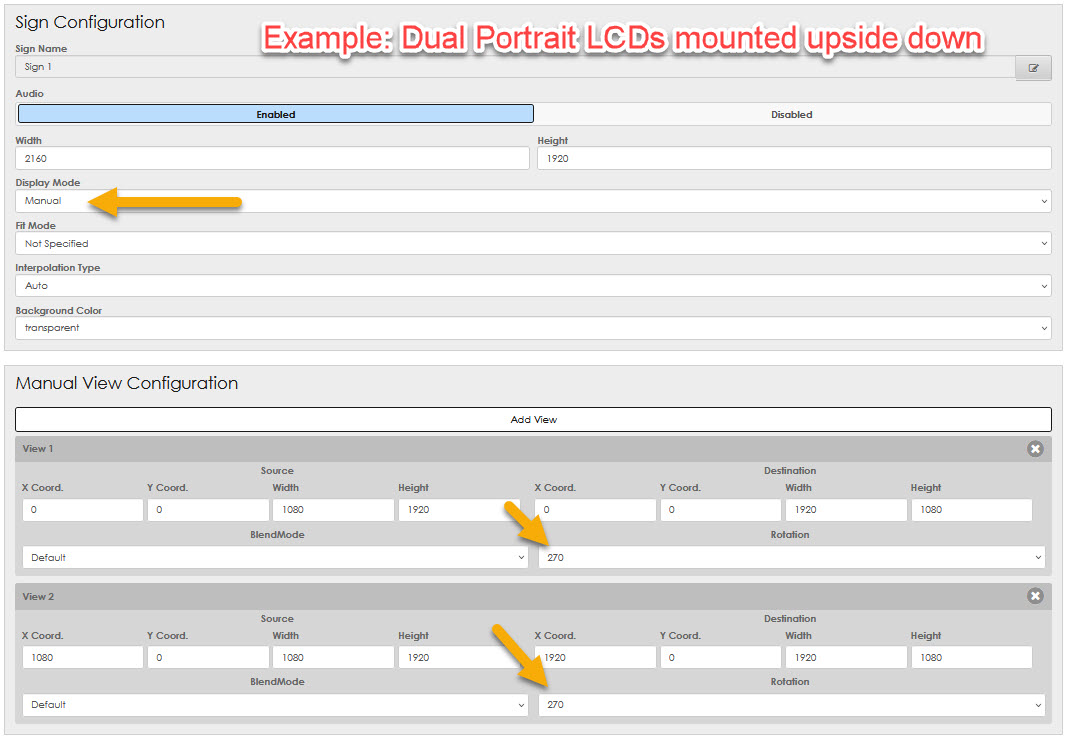

      2. Within the “Sign Configuration” change “Display Mode” from “Single Rectangle” to “Manual”
      3. Once set to Manual the “Manual View Configuration” window will open below
        1. Each physical display will have a View
          1. View 1 will coincide with display 1 (Left most)
          2. View 2 will coincide with display 2
            1. It is important that these values are entered according to the display and view
    2. Once the View Modes are presented - Manual View Configuration, the rotation can be edited
      1. Within the appropriate View, select the applicable Rotation
    3. Once completed select Save



Note: It may be necessary to manually configure the Views and Source/Destination Values. Only if they are not already populated, follow the steps below



Utilize the linked Spreadsheet for some guidance on the Source, Destination and X/Y values - Manual View Mode Configuration



  1. Once Manual View mode is accessed there may only be one View mode showing - This represents the entire canvas. There will need to be Views added for each individual display
    1. Click the "Add View: button
  2. From within the “Manual View Configuration” we will need to configure the x/y and width/height of each View (display). An example worksheet has been saved for review and insight
    1. Width/Height - “Source” within each view is the LCD. It will follow portrait values
      1. 1080x1920 – width/height
    2. Width/Height - “Destination” within each view is the GPU of the PC. Since it is configured to a landscape output it will follow landscape values
      1. 1920x1080 – width/height
    3. x/y coordinates – with the addition of each display after View 2 the value of the:
      1. Source x will be the sum of the total displays portrait – 1080 x # of displays
      2. Destination x will be the sum of the total displays landscape – 1920 x # of displays
  3. With the views built out for each display we can then select the appropriate View and rotate as needed
  4. Once the views have been edited select save to save the configuration



KB ID: 000027661
