Scoreboard is randomly power cycling or off, surge card sending short to power supply

Potential Symptoms

  • Scoreboard is randomly power cycling.
  • Scoreboard is blank with no POST.

Environment

  • Product: Outdoor LED Scoreboard
  • Component: All sport 5000
  • Control System:

Cause

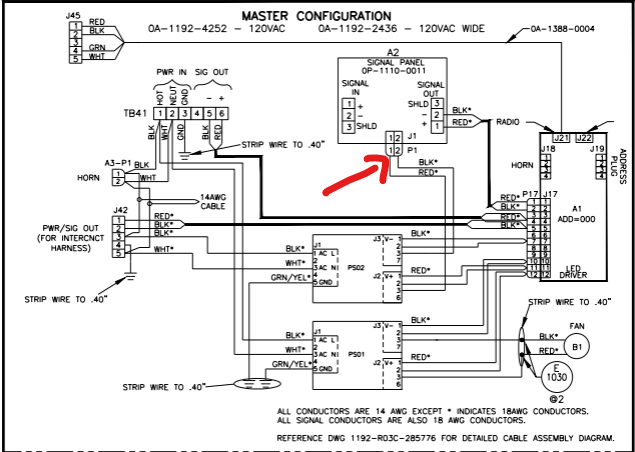

  • Power input pins are sending a short to the power supply causing the power supply to send the short to the driver.
  • image.png

Resolution

  • Replace the surge card.

For Temporary Operation

  • Adjust the pins on the power input of the surge card so that they are not shorting.

KB ID: 000027623
