J45 harness not connected back to anything the driver compartment, Gyrus driver installed

Potential Symptoms

  • Schematic says to plug the new gen 6 receiver into J45 but J45 isn't connected to anything on the driver.
  • There is no 4 pin J21 plug on the driver to connect the J45 harness into.

Environment

  • Product: Indoor and Outdoor LED Scoreboards
  • Component: Gen 6 Wireless All Sport
  • Control System:

Cause

  • A gyrus driver was installed in the scoreboard.

Resolution

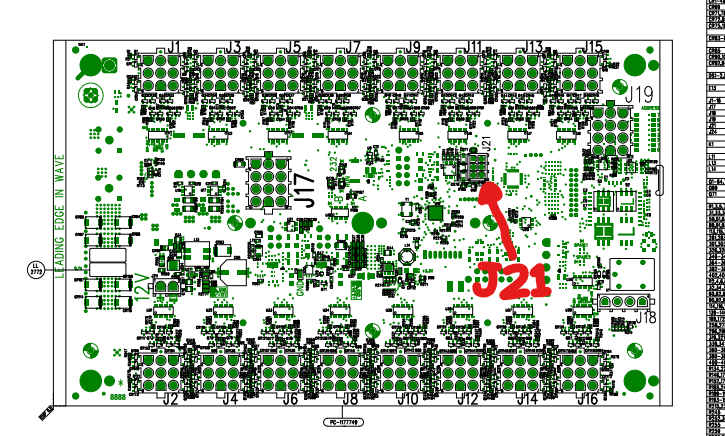

  • Plug the 6 pin harness from the receiver directly into the 6 pin J21 plug on the gyrus driver.
  • image.png


KB ID: 000027609
