TI-2041 or TI-2042 Pitch Time Displays are blank

Potential Symptoms

  • TI-2041 or TI-2042 Pitch Time Displays are blank

Environment

  • Product Family: Sports Hardware, Timing
  • Product: Pitch Time Display
  • Components: TI-2041, TI-2042
  • Control System: All Sport 5100

Cause

Multiple Possible Causes

Resolution

  • Verify the driver in each pitch time display is addressed to H=0, L=1
    • Open the pitch time display(s) from their front-access doors by using a Flathead Screwdriver

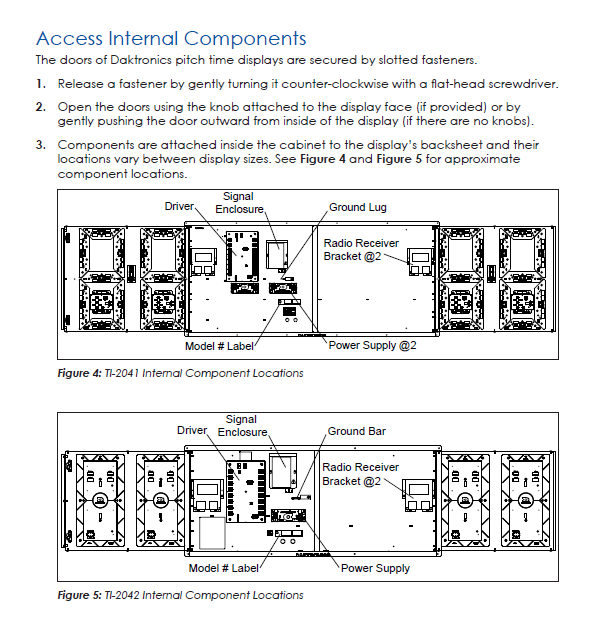

    • Pitch Time Display - Access Internal Components.png
    • Using the rotary address switches on the driver, set H to 0 and L to 1

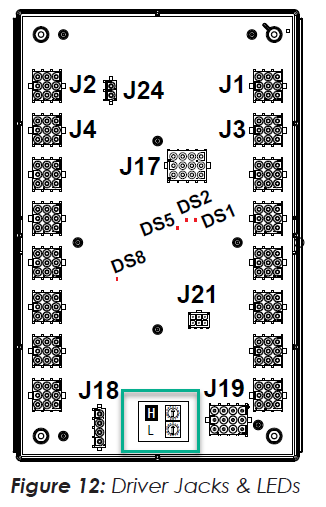

    • Driver Address Location.png
    • After driver addressing is confirmed to be H=0, L=1, Turn console ON and press CLEAR to RESUME GAME
    • Enter code 5001 and confirm Broadcast Group is 1 and Channel Number is also 1 for radios (modify if needed)
    • Wait for 30+ seconds and turn console OFF
    • Wait for several seconds and turn console back ON, then press ENTER to RESUME GAME
    • Allow time for the radios to connect (1-30 seconds) and show information on scoreboards
    • At this point, it should be fine to turn the console OFF and ON followed by RESUME GAME as needed.

KB ID: 000027215
