NPN Series: Content on display is showing incorrectly/out of order.

Potential Symptoms

  • Image is out of order on the display.
  • Content isn't displaying properly on display.
  • Content is showing in wrong place on display, verified wiring in panels & TT was correct.

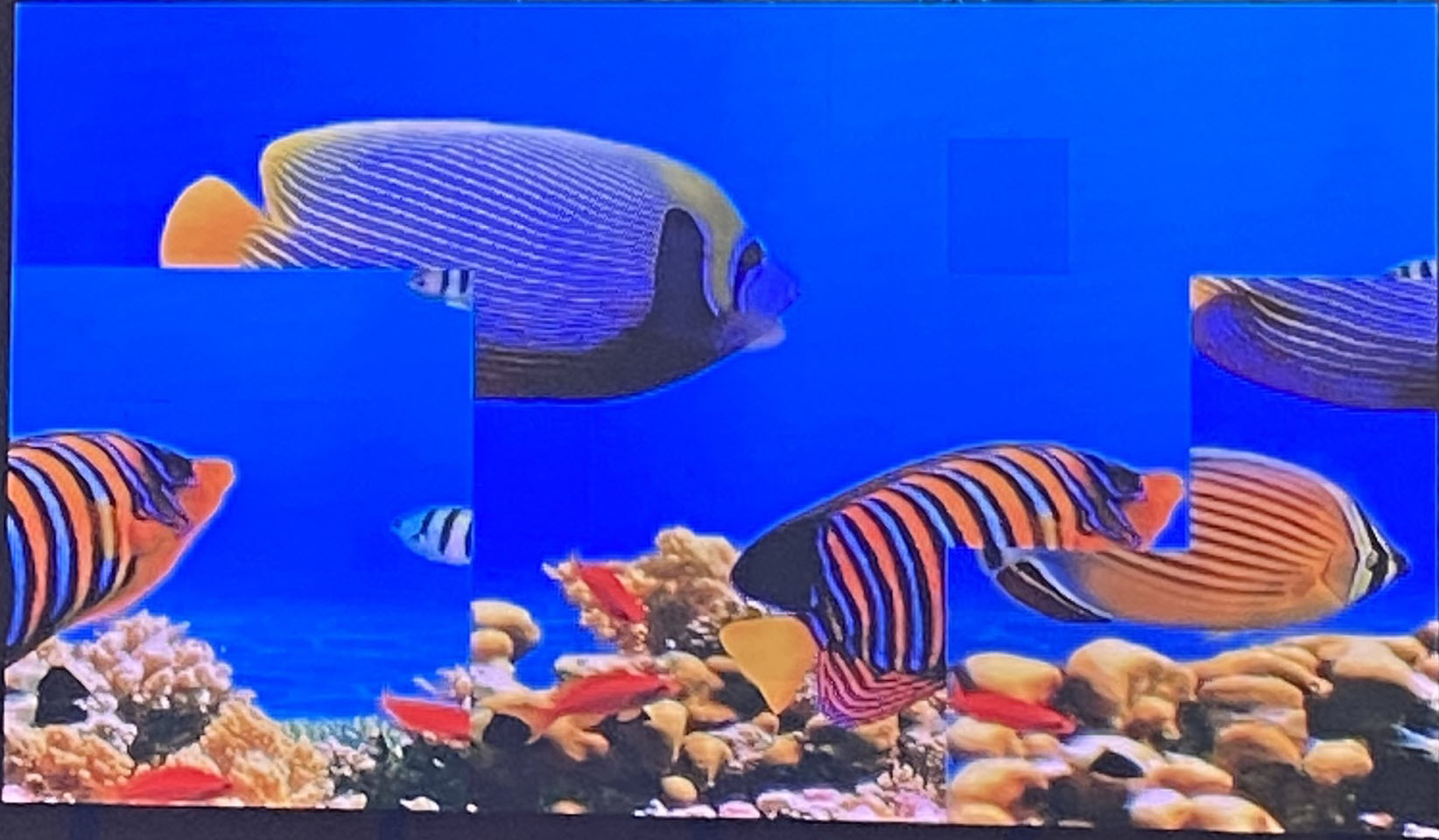

Incorrect pLr connections.jpg


Environment

Product Family: NPN Series
Product: NPN-6200, NPN-6400
Component: PL8


Cause

Wiring at the PLR has been switched around causing content to display in the wrong sections of the display.


Resolution

  • Verify & correct wiring at PLR to match the control schematic.

KB ID: 000027192
