Control Racks: How do I install a EN-2212 Rack Rail
Topic
Environment
- Product:
- Component: EN-2212 Rack Rail installation
- Control System: Control Racks
Steps

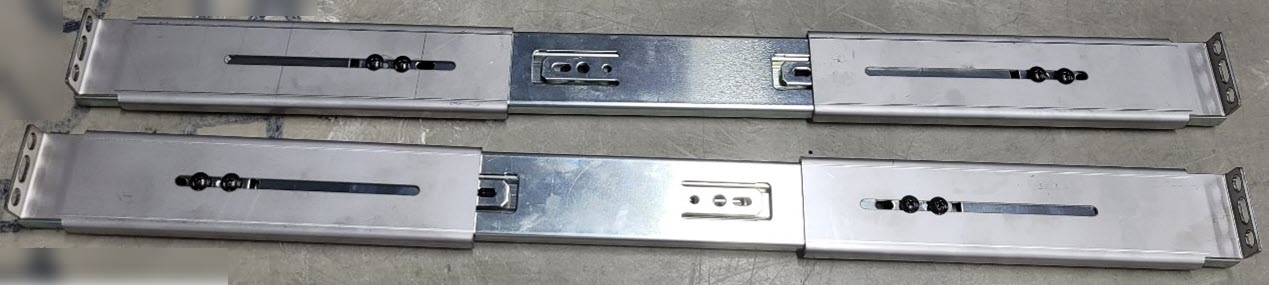

- Unbox the Rack Rails.

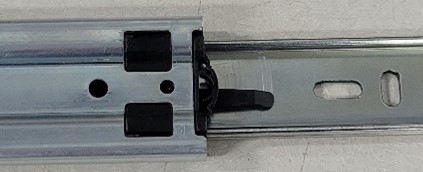

- Remove the inner slide assembly from the outer slide assembly using the release lever.

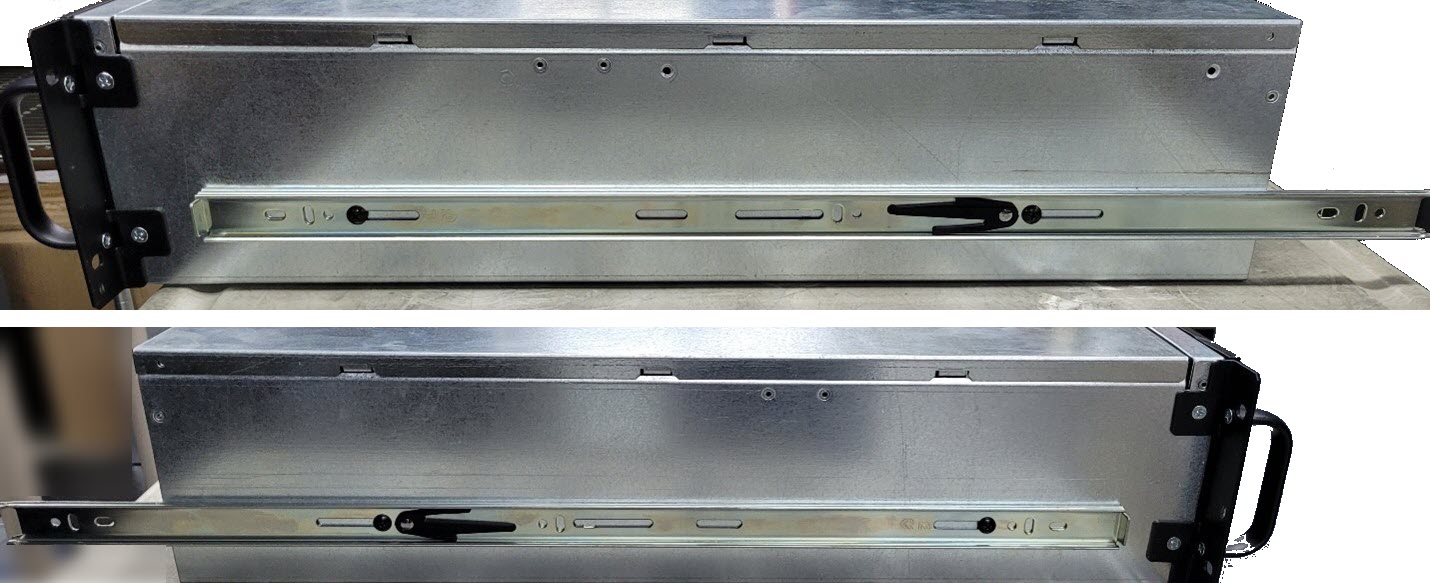

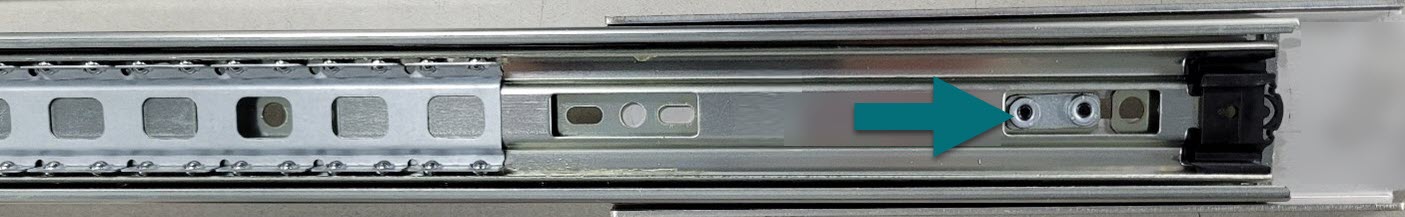

- Remove the screws from the chassis. Use those screws to install the inner slide assembly on the sides of the chassis as shown.

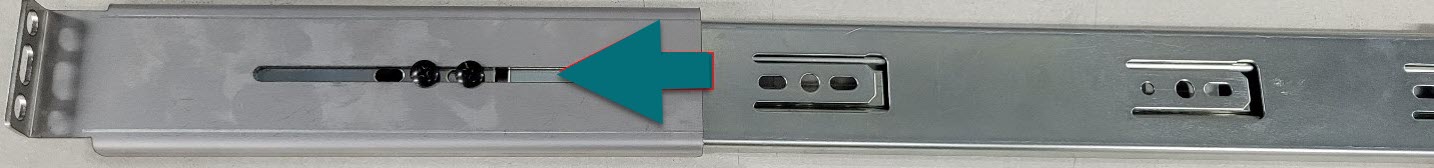

- Adjust the size of the rack rails as needed to fit the rack by loosening the screws and sliding the bracket forward or backward on the rail. Tighten the rails once the rails are at desired length.
- Adjust the bracket on the outer slide assembly as needed to accommodate the chassis and the rack. This can be moved up or back depending on where the rail sits compared to the chassis.

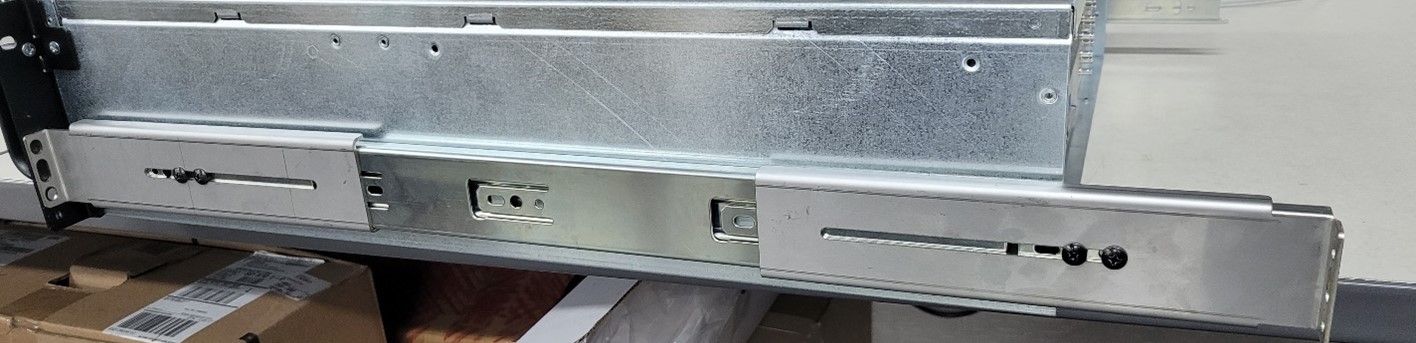

- Test fit the outer slide to ensure the outer slide assembly reaches all the way to the ear mounts on the front of the chassis.

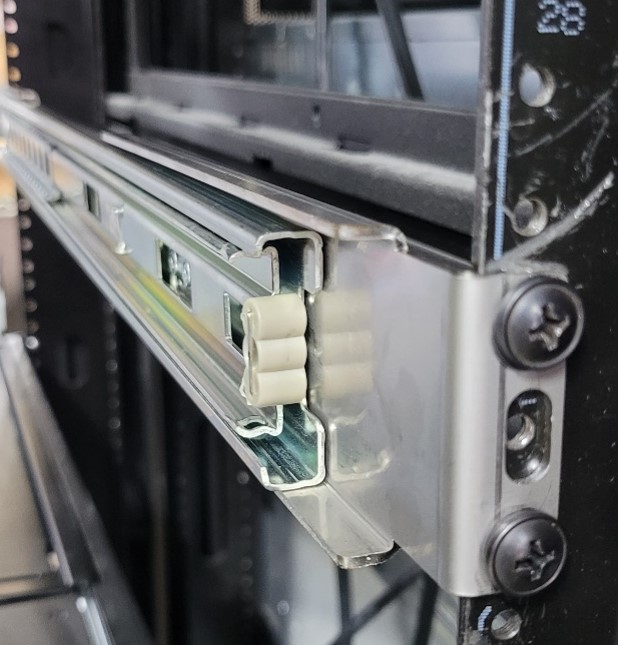

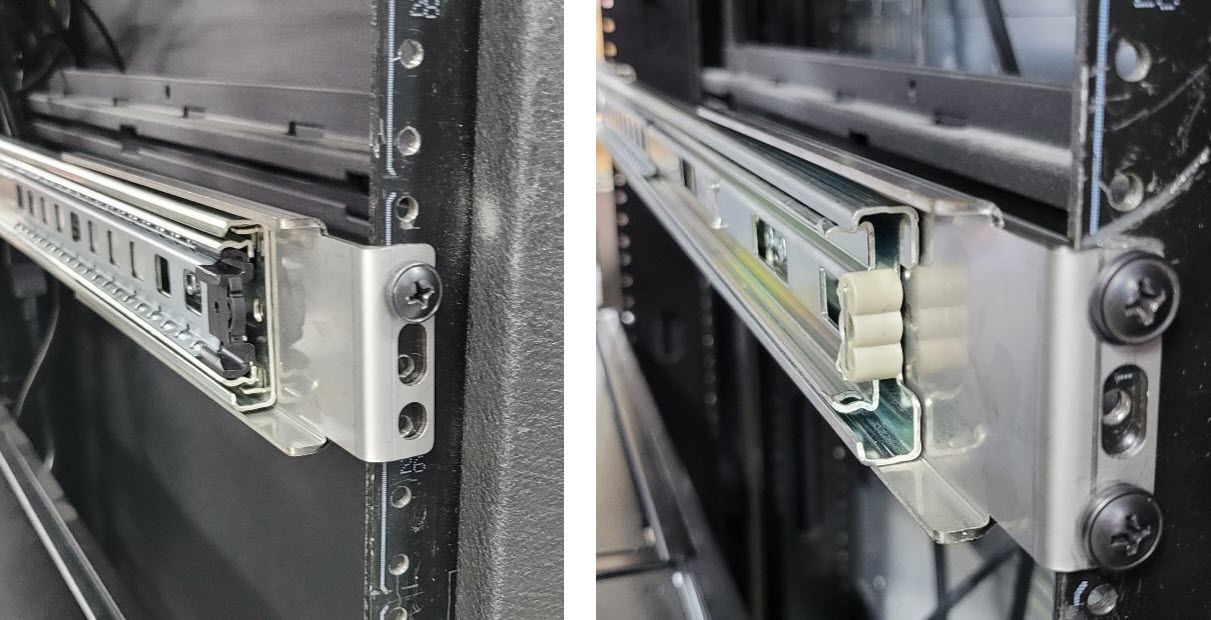

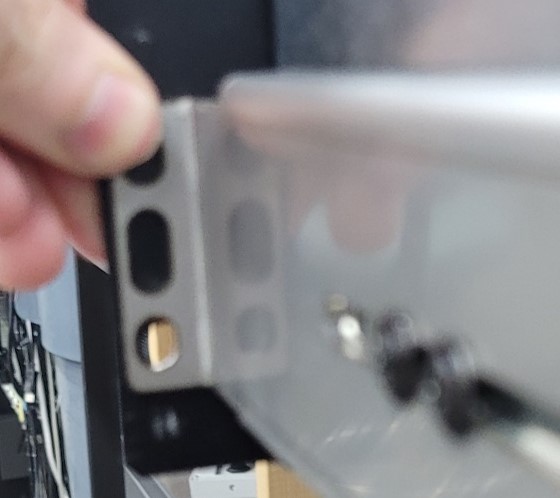

- Install the outer rack rail bracket in the server rack.
- Loose fit all the screws in place before fully tightening down so the bracket position can be adjusted as needed.

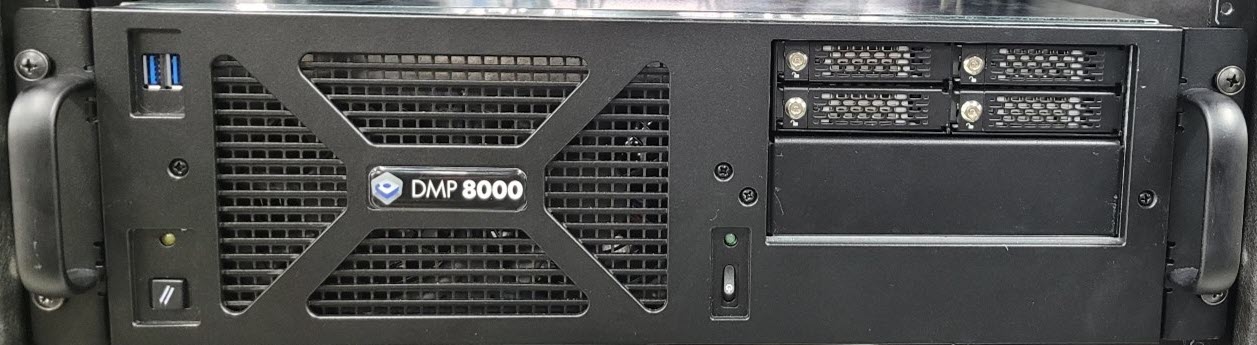

- Install the chassis into the mounted rack rails.

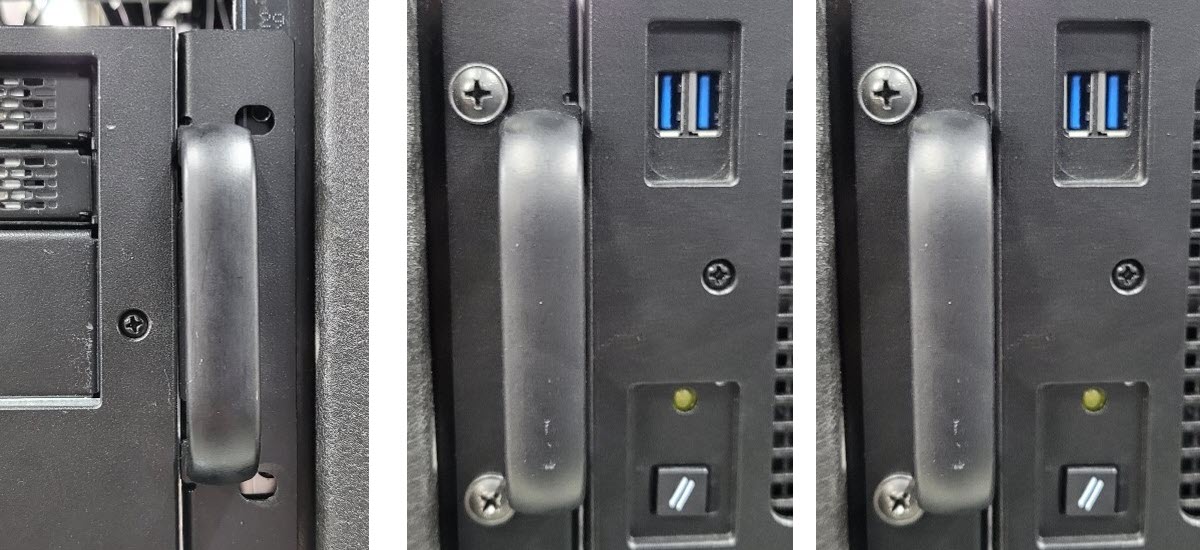

- Push the Chassis into place. The mounting ears on the chassis may appear not to line up with the holes on the rack, but the rails have enough play that you can lift up on the chassis and install the mounting screws.
KB ID: 000027127
