FL-5000, each fuel grade display is set to the same price, unable to edit individual fuel prices; Incorrect price setting.

Potential Symptoms

  • Multiple-line sign with all lines showing the same prices, or data appears on the wrong line
  • Unable to set each fuel grade to a different price.
  • Newly installed displays are showing the same price.

Environment

  • Product: FL-5000
  • Component:
  • Control System: FLR5-400

Cause

  • Display line addressing not set/mapped correctly.

Resolution

  • Refer to FLR5-400: How do I change content and style settings for individual price or message displays?
  • To line-map:
    • Navigate to the Configuration Menu -> Content
      • Select price display using ◁ and ▷ arrows to toggle between displays, and use the  symbol to select.
        • In Content menu select Mode then select Price.
        • Set the price # to map to the desired line.
        • follow the above steps for each price display.

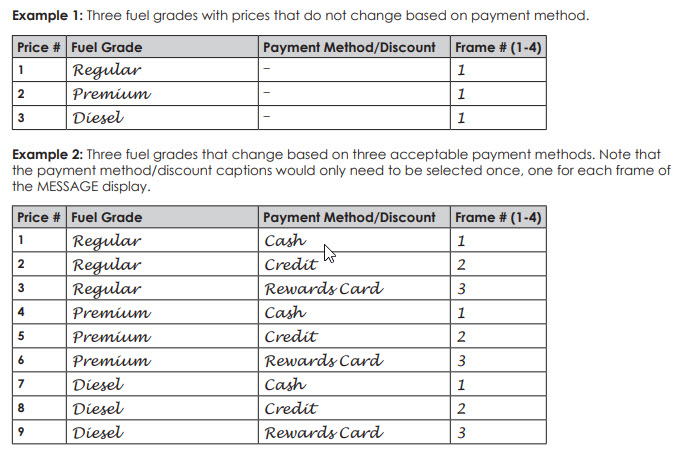

  • The guide below describes how to configure fuel prices with single and multiple frames.
fl5000 line mapping.jpg

KB ID: 000027126
