DakLink: How do I Integrate Presto or Genius stats

Topic

  • 3rd party integration for pre-configured systems
  • Configuring All Sport 5000

Currently Daktronics integrates to the XML output from Genius or Presto Live Stats. It is the responsibility of the customer to provide a way to deliver the file from their stats computer to the Daktronics machine (DSTI or Venus-P).

Environment

  • Product: DakLink, All Sport 5000 Communication Hub
  • Component: Presto Stats, Genius Stats Integration
  • Control System: All Sport

Steps

Daklink Configuration

  1. Connect your All Sport to your stat laptop (will be a USB to serial cable)
  2. Open up the DakLink menu and select Config.
  3. Select the COM port in which your Serial to USB cable is connected to your laptop:

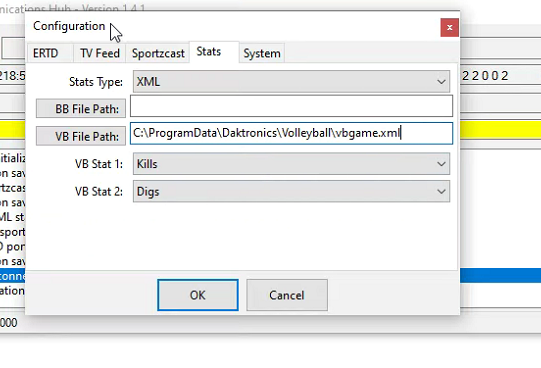

  1.  Go to the Stats XML tab, select BB File Path or VB File Path to select the correct local XML from the stat provider. Make sure to enter the file path.

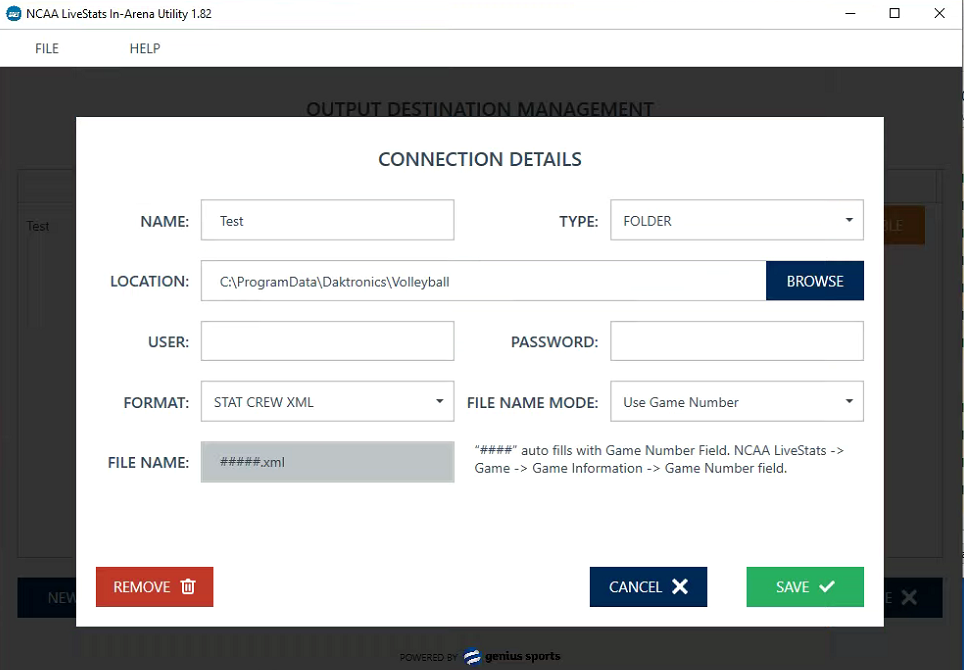

5. Use In Game Arena Utility, to set the connection details

KB ID: 000026969
