PPX-1001 How identify issues with the indicator lights?
Potential Symptoms

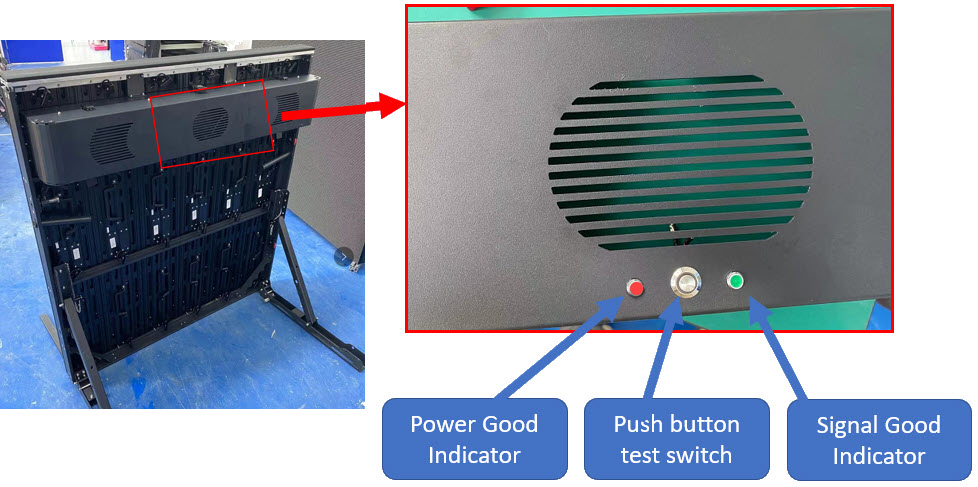

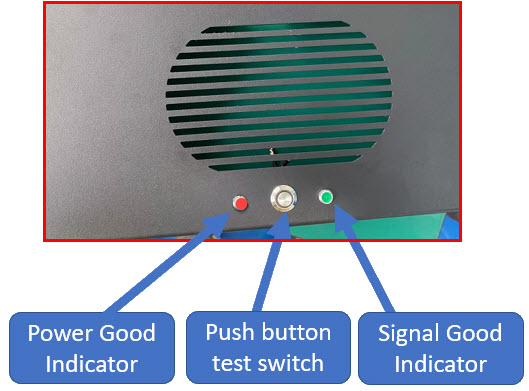

PPX power indicator
PPX test patterns
Environment
- Product Family: Pitch Perimeter displays
- Products: PPX-1001
- Components:
- Control Systems:
Cause
Resolution
| Symptom | No Redundancy | Sending Box Redundancy |
|---|---|---|
| No failed components | Solid green (display runs normally) | Solid green (display runs normally) |
| Wire signal failed | Green light off (display has some outages) | Green light blinking (display runs normally) |
| Receiver card failed | Green light off (display has some outages) | Green light is off (display has some outages) |
| Symptom | No Redundancy | Sending Box Redundancy |
|---|---|---|
| No failed PSU | Solid red (display runs normally | Solid red (display runs normally) |
| 1 failed PSU | Red light off (display has some outages) | Red light blinking (display runs normally) |
| 2 failed PSU | Red light off (display has some outages) | Red light is off (display has some outages) |
| Function |
| Cycles through color pattern when the display is connect to power |
