SportApp: How do I use the Page Field Description and Call Up Number features for Insert Graphics?

Overview

The new Insert Graphics features can be used in these ways:

• enabling the Page Field Description for a player-specific page shows the CU# field on the Page Field Editor panel and the details in the page description under the Show panel.
• enabling the Page Field Description for a team-specific page does not show a CU# field on the Page Field Editor panel and the team must be selected, the details are shown in the page description under the Show panel.
• disabling the Page Field Description for a player-specific page will show the CU# for the player but the details in the page description do not show the player information - only the custom description.
• disabling the Page Field Description for a team-specific page does not show a CU#, the team must be selected, the details are not shown in the page description - only the custom description.
• disabling the Page Field Description for a generic page uses the auto-generated CU# and will not show the details in the page description.

Call Up Number (CU#)

The second digit of the CU# determines if the player is on the Visitor or Home team.
0 = Visitor, 1= Home.

To add a specific player, the last two digits of the call up number is the player's jersey number:

• 0024 is a visitor player with jersey number 24
• 0144 is a home player with jersey number 44

Use the CU# to add a player to a New Page to bring in the player details.
The CU# requires four digits but extra zeros are automatically added to the beginning of any number.


Add a Player Page with Page Field Description Enabled

1. Select the show from the Show drop-down list and click the green plus sign to add a page.
2. Select a player-specific template from the Template drop-down list.
3. Toggle the Page Field Description to ON. This is the default.
4. Enter the Call up Number for the player and click OK.



5. Confirm that the page description under the Show panel shows the the player information separated by |.



Note: If player content is added to the page under Page Field Editor, it is also added to the page description.

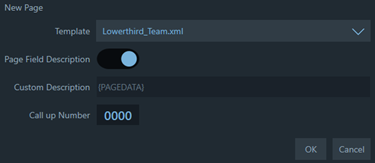

Add a Team Page with Page Field Description Enabled

1. Select the show from the Show drop-down list and click the green plus sign to add a page.
2. Select a team-specific template from the Template drop-down list.
3. Toggle the Page Field Description to ON. This is the default.



4. Confirm that the page is added but with Unknown listed in the page description under the Show panel.



5. Select the team in the Page Field Editor panel and any other content.



6. Confirm that the page field description information is updated.

Note: If team any content is added to the page under the Page Field Editor, it is also added to the page description.

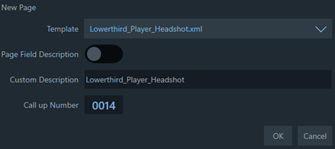

Add a Player Page with Page Field Description Disabled

1. Select the show from the Show drop-down list and click the green plus sign to add a page.
2. Select a player-specific template from the Template drop-down list.
3. Toggle the Page Field Description to OFF.
4. Enter the Call up Number for the player.



5. Confirm that the Page Field Editor panel shows the player but the page field description does not show the player details (only the Custom Description).




Note: If player content is added to the page under Page Field Editor, it is not shown in the page description.

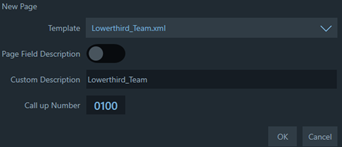

Add a Team Page with Page Field Description Disabled

1. Select the show from the Show drop-down list and click the green plus sign to add a page.
2. Select a team-specific template from the Template drop-down list.
3. Toggle the Page Field Description to OFF.



4. Confirm that the Page Field Editor panel shows no team has been selected and the page field description does not show any team details (only the Custom Description).




Note: If team content is added to the page under the Page Field Editor, it is not shown in the page description.

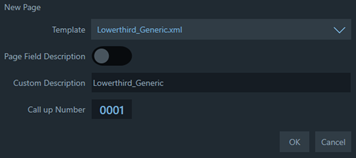

Add a Generic Page with Page Field Description Disabled

1. Select the show from the Show drop-down list and click the green plus sign to add a page.
2. Select a generic template from the Template drop-down list.
3. Toggle the Page Field Description to OFF.
4. Leave the auto-generated Call up Number and click OK.



5. Confirm that the page description under the Show panel shows only the Custom Description.
