LCD Digital Signage - Persistent Display Emulation Alert - Setup EDID Emulation

Topic

  • Seeing Alert when rebooting a player
  • How to set up EDID BIOS level EDID emulation on the Intel NUC based Players.

Environment

  • Product Family: LCD Digital Signage
  • Product: DMP-8121 (SM/SE-100), DMP-8122 (SM200), SM400
  • Components: Intel NUC machine
  • Control System: Venus Control Suite

Steps

A keyboard connected to the player locally is required.

  1. Connect all active HDMI cables to the HDMI ports prior to boot up.
  2. Connect a keyboard to the media player.
  3. Boot up the media player.

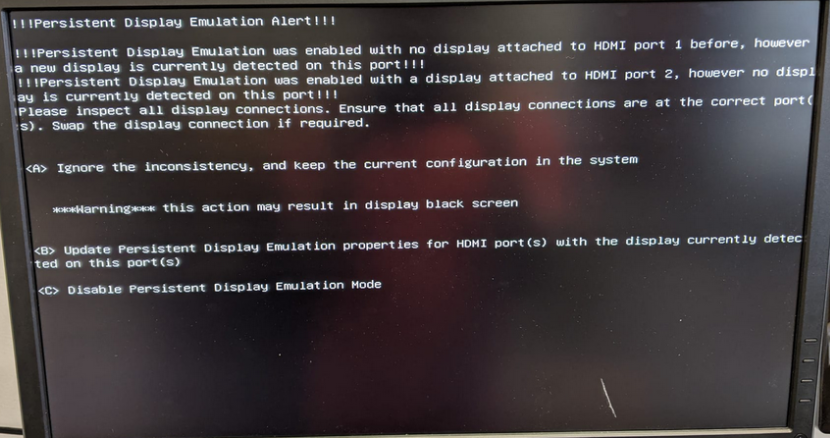

  4. At the "Persistent Display Emulation Alert" page during system boot-up, press "B" on the keyboard to learn the new EDIDs.image.png


Note: The alert page will not appear unless a new screen is connected or existing screens are disconnected from the media player.

KB ID: 000024453
