What are the 8 button switch interface looks?

Topic

HSPR FY22 Switch Interface Looks

The 8-button network controller is included in the FY22 Standard Video racks to send the display in different modes if/when the Studio One laptop is not available.

Environment



  • Product: Video Systems
  • Components: 8 Button Network Controller
  • Control System: Standard Video Rack FY22 Shipped after April 2021

Steps

There are 8 buttons :
Button 1 Full Screen  BB/FB game information
Button 2 Full Screen VB/SO game information
Button 3 Full Screen WR/LAX  game information
Button 4 Full Screen Video
Button 5 Full Screen Practice
Button 6 Full Screen Add Loop
Button 7 Scaled Video
Button 8 Scaled Scoreboard

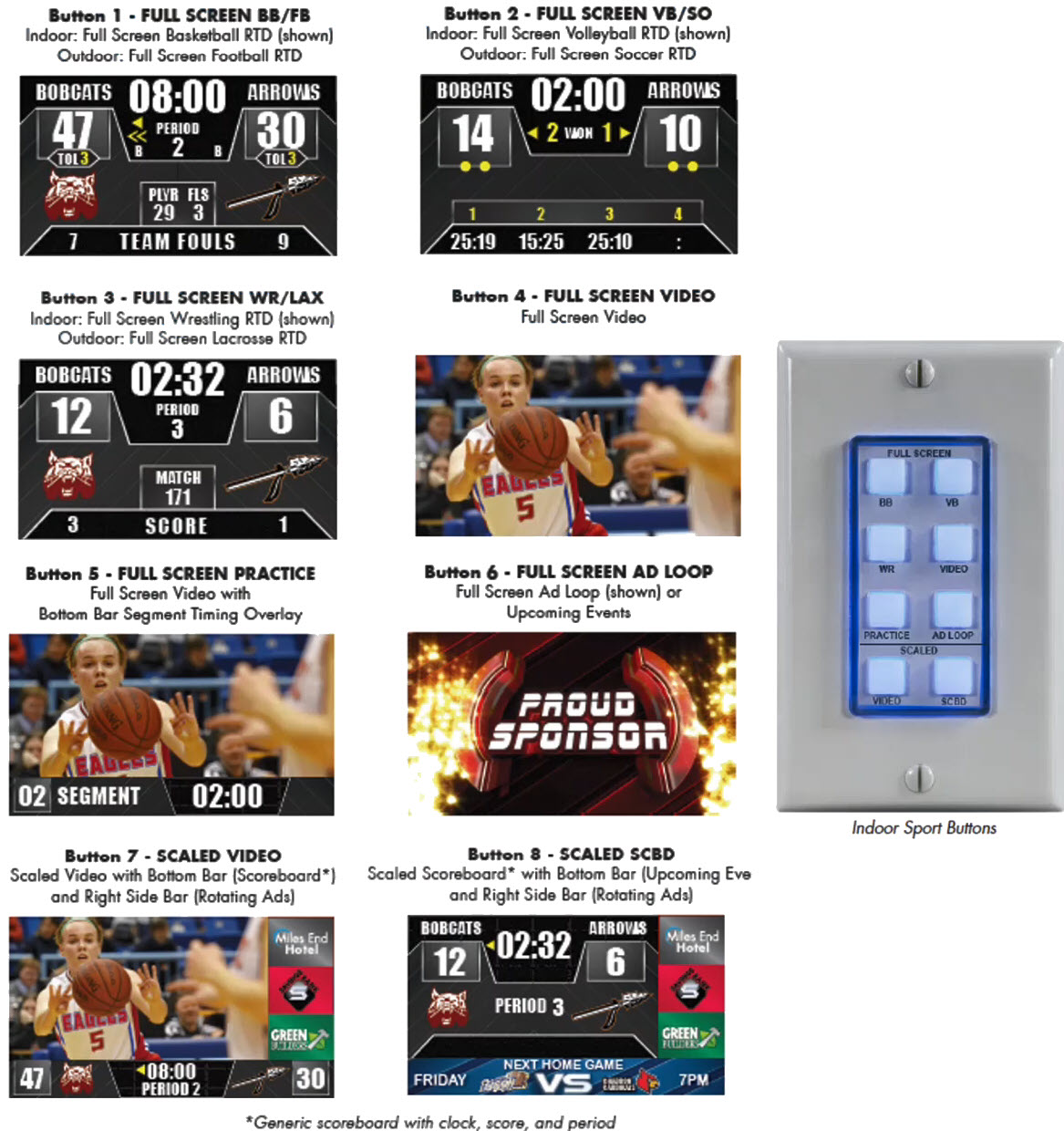

See examples below:
8 button mapping.jpg

KB ID: 000024196
