How do I use the Nucleus Server Database utility to transfer or save a database?

Topic

  • How do I use the Nucleus Server Database Utility?
  • How do I backup my Venus 1500 v4, Display Studio, or Vanguard Database?
  • How do I restore my database to a clean or fresh database?
  • How do I load a backed-up database to a new or different computer?
  • How do I move the existing schedule and images from one PC to another?

Environment

  • Product:
  • Components: Nucleus Server Database Utility, Display Studio Database, Venus 1500 v4 Database
  • Control System: Venus 1500 v4 Software, Display Studio - Show Control Software, Vanguard v4 Software
What is Show Control?

What is Show Control?  Show Control is our live event control system solution that consists of various hardware and software components.  These components include players, processors, data interfaces, content creation, display control, etc.  The names of these products include DMP players, VP processors, Data Studio, VCS, Content Studio, Display Studio, etc.

Steps

⚠️Microsoft SQL server is not backwards compatible. Be sure to check Microsoft SQL versions on each computer; the computer the database is being transferred to must have equal to or greater than SQL versions than the computer the database is being transferred from. Ex. If original database is using SQL2014, it cannot be loaded to a computer using SQL2008 or SQL2005.

  1. Determine operating system and locate Nucleus Database Utility as shown below. To determine if Windows 32-bit or 64-bit, please refer to How do I tell what type of Windows Operating System my computer is running?
    • 32 Bit System: C:\Program Files\Daktronics\Nucleus Server\Database Utility\
    • 64 Bit System: C:\Program Files (x86)\Daktronics\Nucleus Server\Database Utility
  2. Double-click on Daktronics Database Utility.

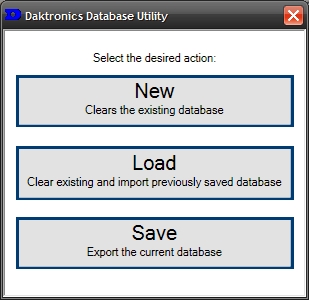

Nucleus Server Database Utility
  • The Nucleus Server Database Utility is used by different Daktronics software platforms:
    • Venus 1500 v4 Software
      • Vanguard v4 Software
      • Show Control Software (Display Studio + Content Studio)
  • The Nucleus Server Database Utility as shown above can be used in different scenarios:
    • Clear the database to the original install state.
    • Migrate a user's database from one computer to another.
    • Create an on-demand backup of the database for later use or for testing.
  •

Performing a clean setup

Executing this will completely erase the database currently on the computer, and this action is irreversible. You will receive a prompt: Do you want to save the existing database before proceeding with New Setup?

  1. Only click "Yes" if you need to save the current database and have not already done so.
  2. Only click "No" if you want to clear current database.
  3. On the second prompt: Loading setup will overwrite your existing data, Continue? and click Yes
Performing a save/backup

This process will save the database on the computer, enabling it to be backed up or transferred to another machine.
Note - this backup file contains all of the database information including presentation file and schedules. It is important that the file name not be change or renamed.

  1. Click the Save button.
  2. Save the backup file —browse to a desired location to save or backup the database such as Shared/Network Drive, Flash Drive and/or desktop, click Save. (the file will look like this: Backup.nucbak )
Performing a load/restore

Before loading the backup file onto the new computer, make sure that Venus 1500 V4 is in the same Playlist Mode as it was on the old computer.  If you need to switch playlist modes, then follow Venus 1500: How do I switch between Continuous Mode and Schedule Mode? , DD1996807 to do so.

  1. Click the Load Setup button.
  2. You will receive a prompt: Do you want to save the existing database before proceeding with Load Setup?
    • Only click "Yes" if you need to save the current database and have not already done so.
    • Only click "No" if you want to clear current database.
    • Typically, if this is a new computer, you can click No due to there is no database to save.
  3. On the second prompt: Loading setup will overwrite your existing data, Continue? and click Yes.
  4. Browse to the location where you saved the backup.nucbak file and double-click it, or highlight it and click Open.
  5. After loading is complete you will receive a message saying "Backup Loaded Successfully" and you can then open Venus 1500 V4.

Considerations

    1. If running a 32-bit version of Windows, Nucleus Database Utility.exe is installed at [Program Files]\Daktronics\Nucleus Server\Database Utility. If running a 64-bit version of Windows, the Nucleus Database Utility will be in [Program Files (x86)]\Daktronics\Nucleus Server\Database Utility.
    2. The database backup includes all data files and content for M3 widget, it may take several minutes if the system has many files.

Reference Training Video

  •

    If unable to run the Nucleus Database Utility, a copy of the most recent backup can be obtained by following: How do I know if Venus 1500 v4 automatically backs up my database? , DD2433671 A copy of the database will need to be saved from the location mentioned. Once saved continue with step 1 under Performing a Load/Restore, above.
