DWP/AWP - Setting or Checking the Network configuration

Topic

  • How to access the network settings on an LG display running the Dak Web Player (DWP) or the Adflow Web Player (AWP).

Environment

  • Product Family: Software and Controllers
  • Product: DWP, AWP
  • Components: LG Screen,
  • Control System:

Steps


The LCD display can operate over a Wired or Wireless network connection.
An LG brand remote is Required to access the settings.  It is possible to use a universal remote, however the use of a universal remote is unsupported.

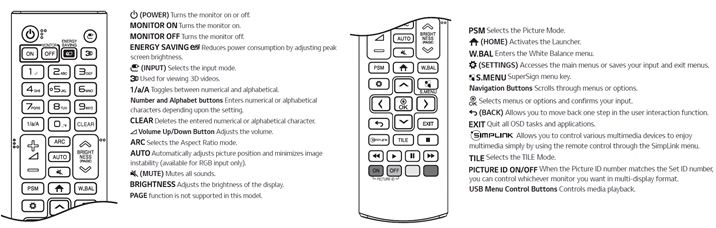

LG Remote reference

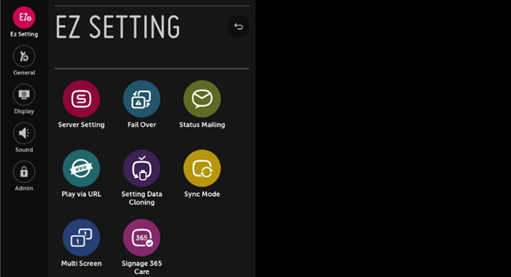

  1. Using the Remote, locates and press the “Settings” button.  Note: Settings button location may vary.

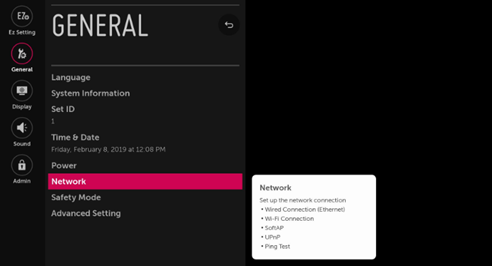

  1. Using the Up/Down buttons, select "General" from the left-hand side and then select “Network".

​​​​​​​

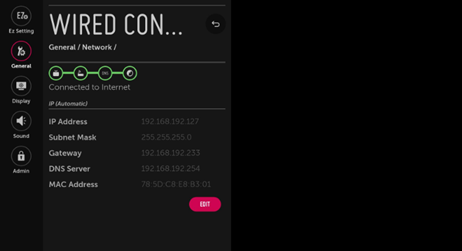

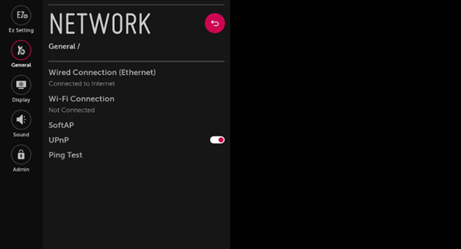

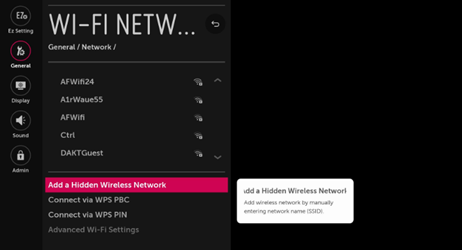

  1. Within the Network tab, you may select Wired Connection or Wi-Fi Connection to setup a static IP or a wireless profile.

​​​​​​​

                            ​​​​​​​

KB ID: 000020102
