DMS: Creating a DS style campaign for Kiosk displays

Topic

How does one schedule a Digital Signage like campaign to Kiosk Displays in Adflow DMS.
This guide is helpful in understanding how to leverage a modified workflow to transform Kiosks into a non-interactive/Touchless display.

Environment

  • Product Family: Adflow Kiosk Displays or Media Players
  • Product: Player 10.x and higher
  • Components: N/A
  • Control System: Adflow DMS

Quick Note

Home Button content must be an image file and it must be flagged as an “Interactive” Spot by clicking the check box.  This flag will identify the spot as part of the "Kiosk Spots" folder



The DS or Attract spots need to be saved with the “Interactive” left unchecked - This will flag the spot as a "Digital Signage Spots" folder


Steps



Creating a KMap

Once logged into ADflow DMS

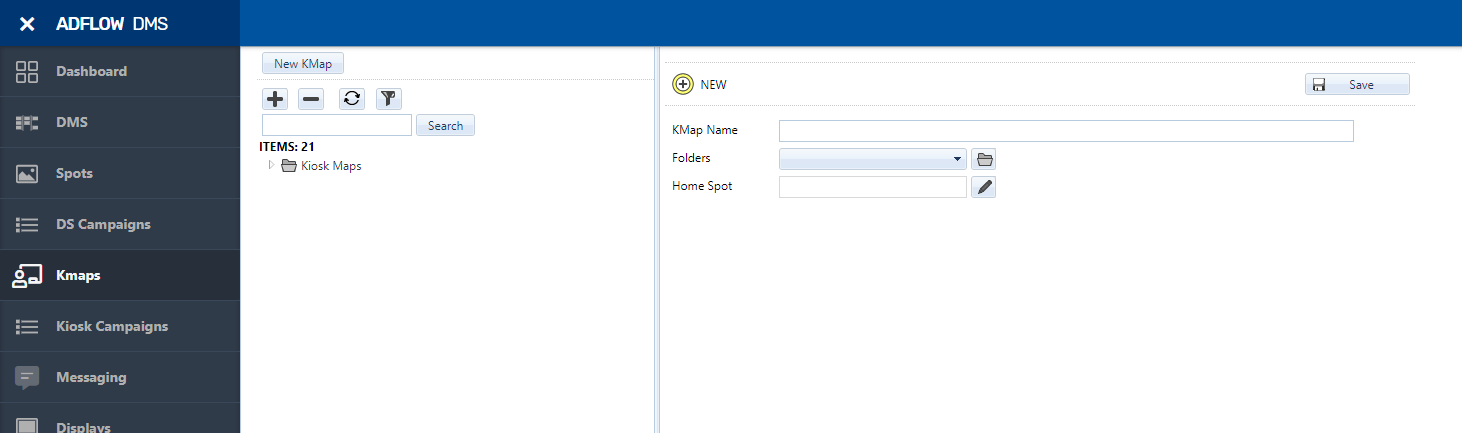

Start by KMaps menu option and being creating a new KMap that we will use to manage the Static spots

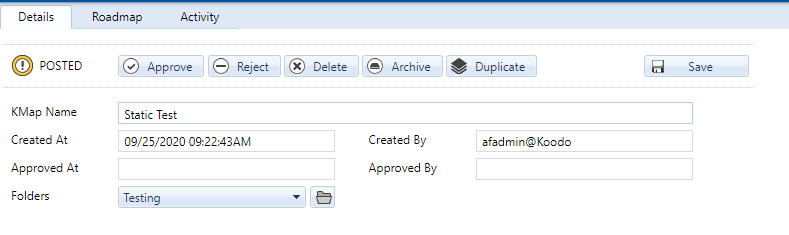

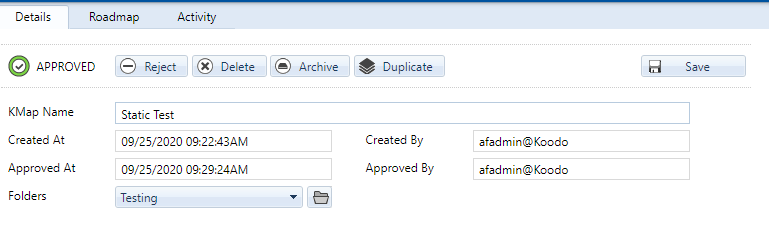

Name your KMap and pick the storage folder


For the home spot we suggest a generic image like a Logo or another branding image.
The home spot is a required feature of a KMap

Note: The Home spot will only be triggered if someone presses the touchscreen. After a few seconds of idle time (no touches, duration is set on the Spot itself) the screen will return to the attract loop.  Using a image with a 10 second duration is recommended.  Using a video is not recommended.

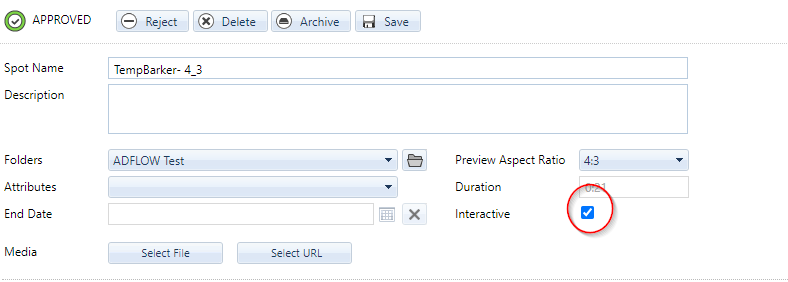

The Home spot content does need to be flagged as Interactive

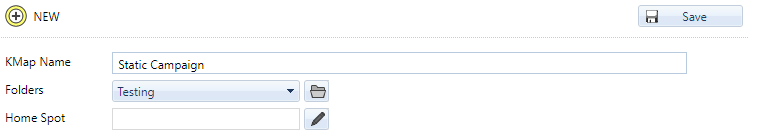

Click the Pencil icon to open the spot selector popup

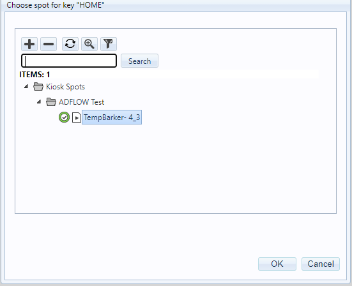

Select your desired Home spot from the content tree, click OK with the spot selected

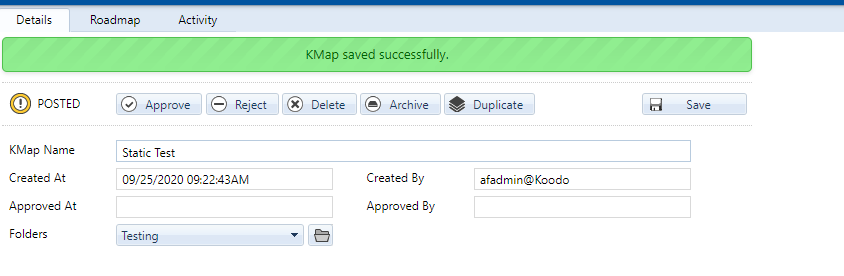

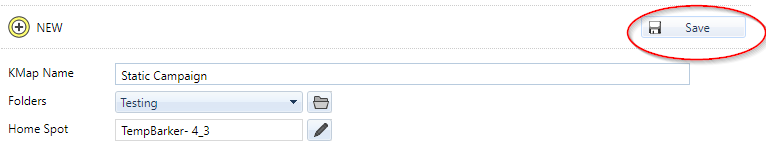

With your Home Button now selected and showing in the “Home Spot”, click Save to move on to the RoadMap

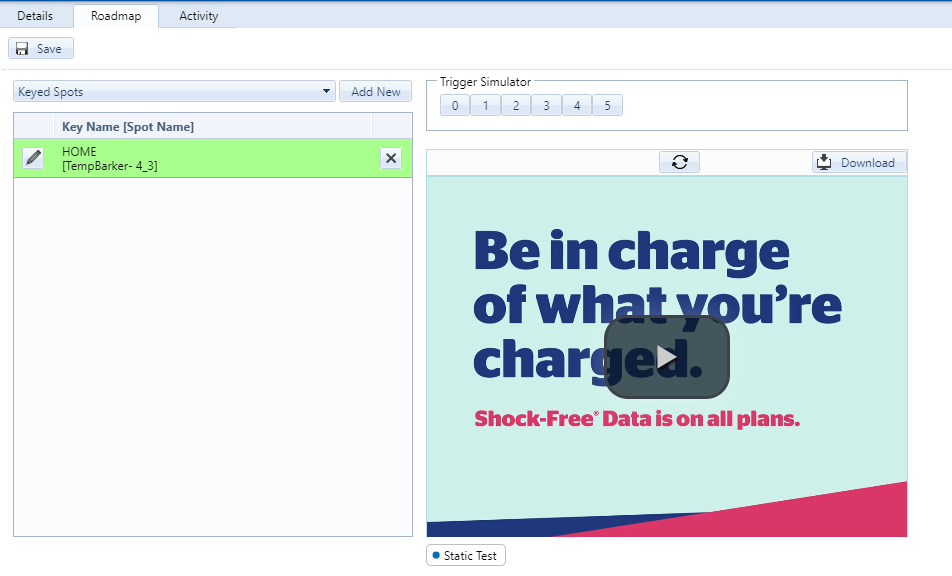

Click the "Roadmap" tab at the top of the window

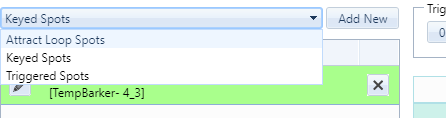

Select “Attract Loop Spots” from the drop down


*Attract spots are stored in the "Digital Signage Spots" folder

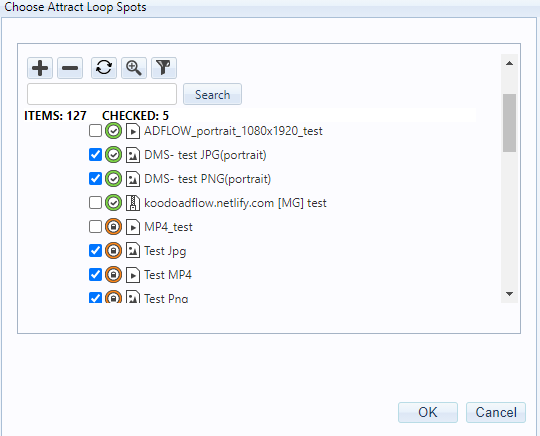

Click the “Add New” button to open the spot selector popup



Select the spots to add, you can make changes (add or remove spots) until you assign the KMap to an active Campaign

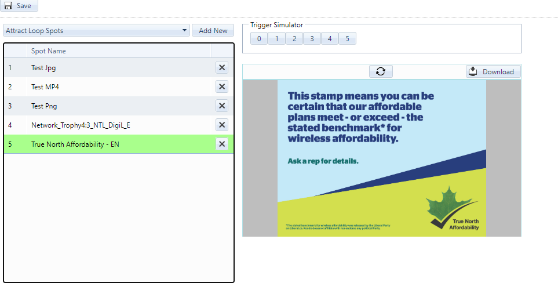

The spots in the attract loop will be displayed along with the spot preview



Click the “Save” button when you are happy with the loop


Next click the “Approve” button to finalize the your new KMap




Creating a Kiosk Campaign

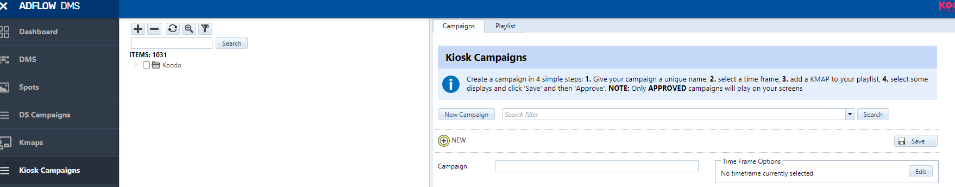

Click the “Kiosk Campaigns” menu to open the Kiosk Campaign scheduler

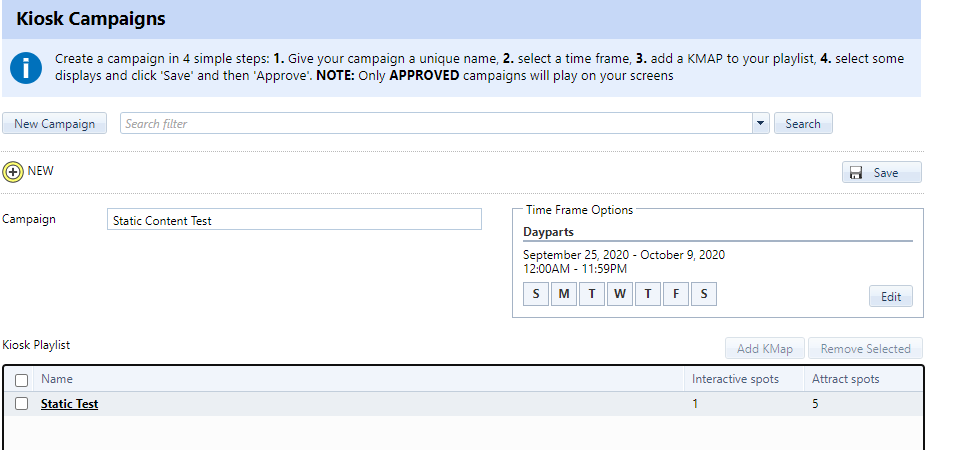

Create a new campaign by providing the campaign with a unique name

Next click the “Edit” button in the “Time Frame Options” section next to the Campaign name

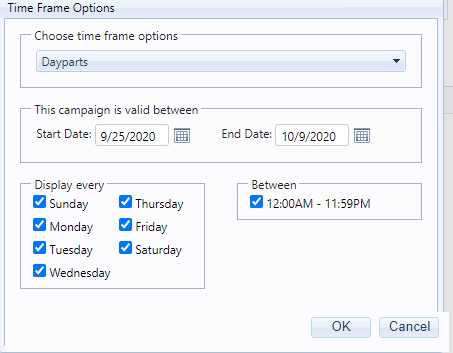

Select the Time Frame for the campaign and then click “OK”

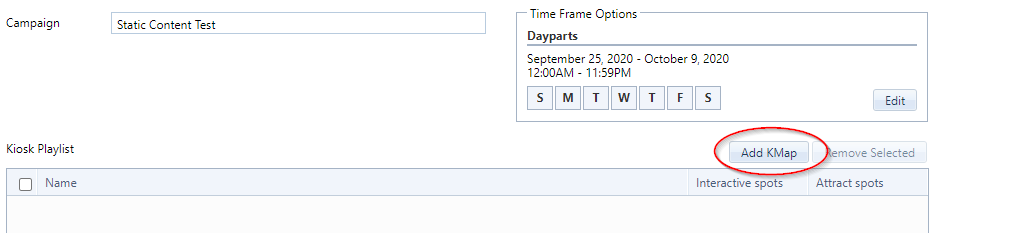

Next click the “Add KMap” button to open the KMap selector

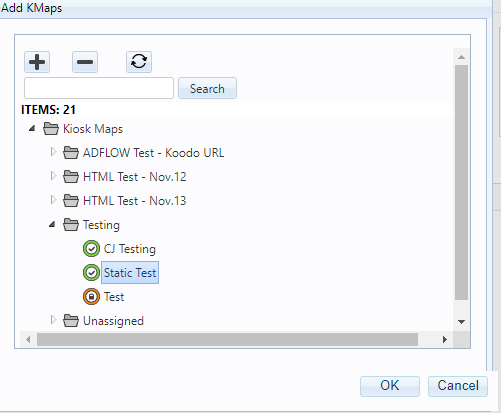

Locate your newly created KMap from the tree and click “OK” when you have it selected

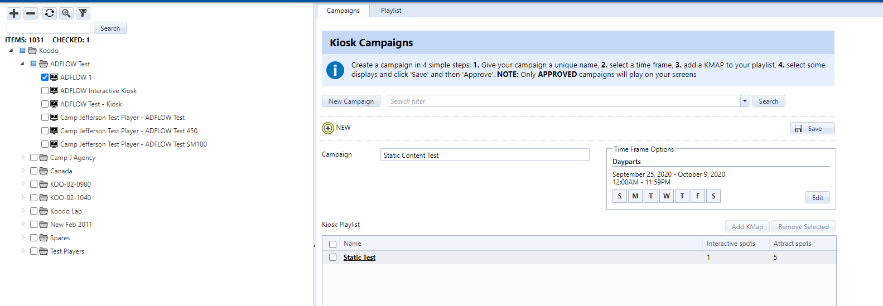

Next, we need to assign this Campaign to one or more Displays.
Select the Displays from the network tree

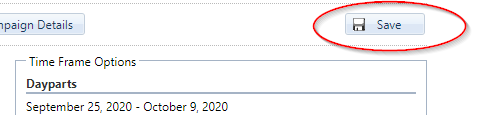

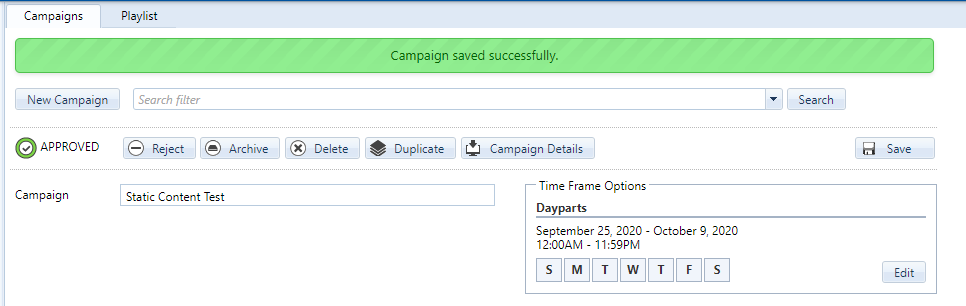

Click the “Save” button to complete the scheduling process
