All Sport Lite App: How do I operate Practice Timer?

• How do I operate the Practice Timer mode for All Sport Lite (formerly DAK Score)?

• Product: All Sport Lite (formerly DAK Score) app
• Components:
• Control System: Scoreboard with All Sport MX-1

1. After connecting to the MX-1, tap the main menu button (), and select Settings. Under Select Sport, ensure Practice is selected. If it is not, select it and tap OK.

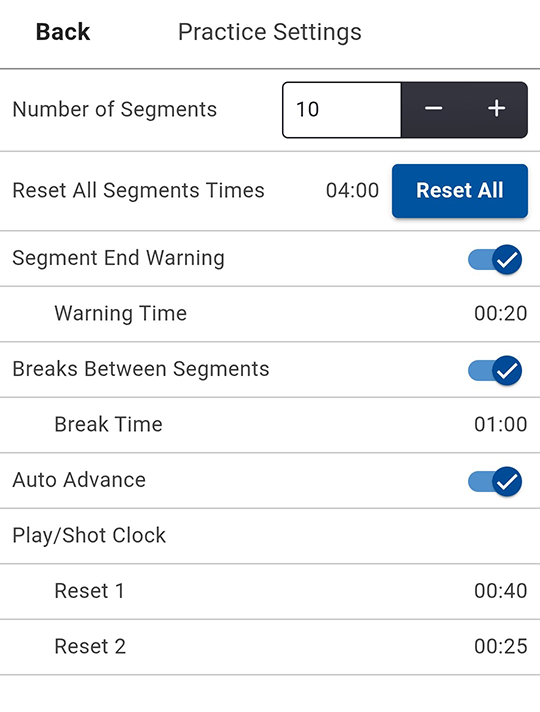

2. Tap Back, tap the main menu button () again, and this time select Practice Timer Settings.


3. Select the Number of Segments from 1 to 40.
4. Set the Segment Time from 00:00 to 59:59.

   Note: Tapping Reset All will change every segment to that time, even if certain segments have been manually edited.

5. Enable or disable the Segment End Warning and set the Warning Time. By default, this is enabled with a time of 0:30. When the warning time is reached, the segment number flashes until the main clock reaches zero. The warning time displays in yellow in the app.
6. Enable or disable Breaks Between Segments and set the Break Time. By default, this is enabled with a time of 1:00.
7. Enable or disable Auto Advance. When enabled (default), segments will automatically proceed to the break (if enabled) and then to the next segment. When disabled, users must manually move to the next segment using the next button (), and there will be no break time between them.
8. If any of the segments will require the use of a play/shot clock, set the Reset 1 and Reset 2 time values.
9. Tap Back when finished setting up the practice session.

Operation

To customize a segment, tap Edit and then tap the segment in the list. Tap the default name and use the onscreen keyboard to enter a new name (max 15 characters). Set the minutes and seconds values and then tap Done. Continue tapping other segments to modify them as needed and then tap Save to exit the edit mode.

Tap the play button next to the clock to begin counting down the first segment time. Tap the stop button to pause the clock.

Note: While the clock is running, it is not possible to change to another segment or edit any of the segments in the list.

When the clock reaches 00:00, it will either stop, begin the break time, or begin counting down the next segment time, depending on the current practice timer settings above. The clock will always stop after the last segment time has expired.

To edit the current clock time, first pause the clock, tap the clock menu button (), and then select Edit Clock. Enter the new minutes and seconds and then tap Done. To reset the current segment time, tap the clock menu button (), and then select Reset Clock. This reset function may also be used to end a break time early.

Tap SHOW HORN to reveal the horn button. This is to prevent accidentally sounding the horn. Tap the clock menu button () and select Enable Auto-Horn to make the horn sound automatically at the end of a segment.

Play/Shot Clock

A play/shot clock can be enabled or disabled as needed throughout the practice session. To activate a play/shot clock, tap the clock menu button (), and select Enable Play/Shot Clock. Tap the lower play button to begin counting down the play/shot clock time. Tap the lower stop button to pause the play/shot clock. Tap one of the reset buttons to quickly revert the play/shot clock to the Reset 1 or Reset 2 value as specified in the Practice Timer Settings. The current play/shot clock time can also be edited by tapping the clock menu button () and selecting Edit Play/Shot Clock.
