Content Studio shows incorrect display dimensions, Display configuration set to wrong size
Potential Symptoms
- Venus 1500 V4 is connected to the display and shows the correct display dimensions on the Home tab.
- Creating a new message in Content Studio shows the wrong display size.
- The Venus 1500 V4 Content tab, display configuration settings, and Content Studio Media Library have incorrect display dimensions and color depth.
Environment
- Product: Animated Displays, Galaxy, GalaxyPro
- Component: Display Configuration
- Control System: Venus 1500 V4
Cause
- The display was configured incorrectly in Venus 1500 V4.
Resolution
- Correct the display configuration settings in Venus 1500 V4 and select yes to download the correct Media Library. How do I create and configure a Galaxy display in Venus 1500 V4?
- In Venus 1500 V4
- Click the Orange V in the top left.
- Mouse over Configure and click Displays.
- Double click the display that needs to be edited or select it and click Edit Display.

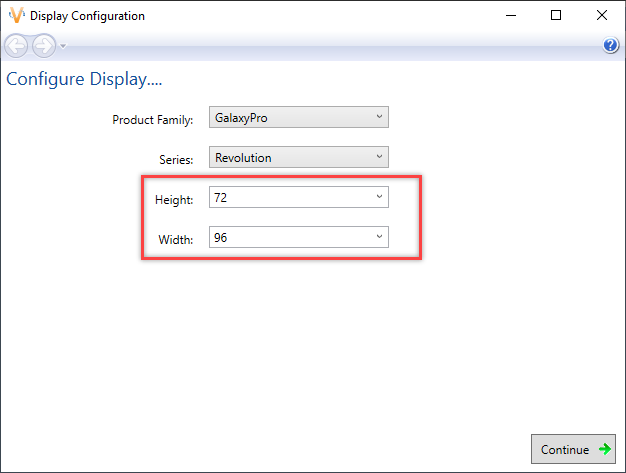

- Change the Height and Width fields to match the pixel dimensions of the display.
- Click Continue until you are at the Summary screen.
- Click Finish.
- Download the correct Media Kit size for the display if desired.
- Verify Content Studio now shows the correct display size when creating a new message.
KB ID: 000012513
