Live Book GFX: What are the common scoreboard feeds in the Sport App football ?

Topic

  • What are the common scoreboard feeds for the Football SportApp?

Environment

  • Product: SportApp
  • Component: Football scoreboard feed
  • Control System: Live Book GFX®

Steps

  1. Click on the SportApp Settings from the bottom right of app.
    Sportapp menu.png

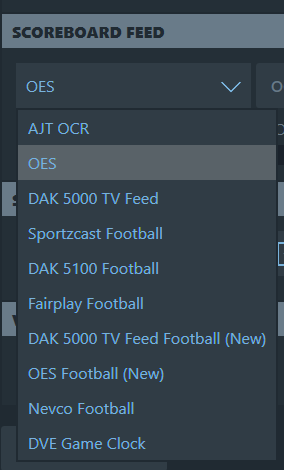

  2.  Each scoreboard option can be found under the Scoreboard Feed dropdown.

Common Scoreboard Feeds

AJT OCR

  • The AJT OCR feed is used to get data from a camera pointed at a scoreboard to the score bug.
  • The OCR clock only pulls the game clock and play clock. The BNC cable from the camera connects to input 1 to get this data to the sportapp.

OES

  • The OES feed takes the clock, period, and score from the controller and sends it to the score bug.
    • OES Code 5833 is the only code supported by the SportApp
    • Football needs to be selected on the controller for the OES scoreboard feed to work

DAK 5000 TV FEED

  • DAK 5000 tv feed pulls data from the DAK scoreboard controller to the SportApp. It sends game clock, play clock, score and period to the score bug and UI.

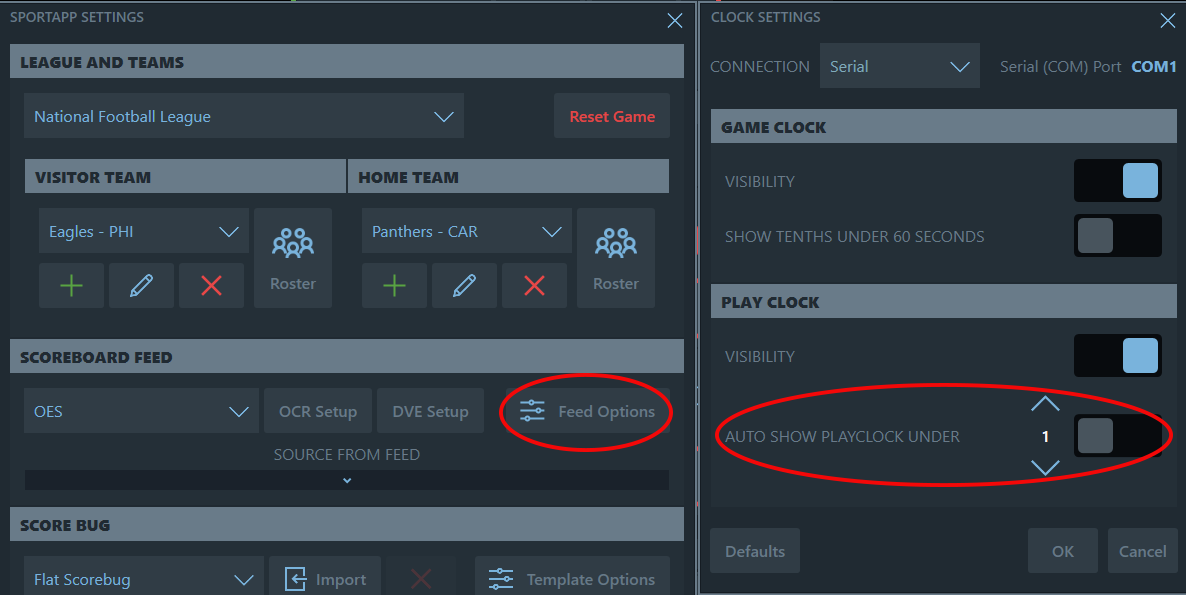

    dak 5000 tv feed football.png

 Auto show play clock

  • When auto show play clock under a specified time is enabled the play clock will show.
  • If auto play show clock is disabled, the play clocks visibility is controller manually.

SportZcast Football

  • SportZcast sends all the clock data plus possession, down, distance, ball on timeout, period and score to the score bug and the UI. The SportZcast data gets to the app via the network connection.
  • To get the data over the network to the sportapp the sbproto.ini file that contains the feed needs to contain the username and bot file number.

DAK 5000 TV FEED Football (New)

  • DAK TV feed new works like the DAK feed above. The main difference is that this new feed carries timeouts, down, distance, ball on, and possession

DAK 5100 Football

  • The DAK 5100 feed gets score, period, clock, timeout, down, distance, ball on and possession
  • DAK 5100 is the back of the DAK without All Sport CG, newer models of All Sport.

Fairplay Football

  • Fairplay feed pulls data from the Fairplay scoreboard controller to the SportApp. It sends clock, score, timeouts, down, distance, ball on, possession and period to the score bug and UI.

    • Fairplay does not use specific sport codes, however the correct sport needs to be chosen to work with the SportApp

OES Football (NEW)

  • OES football new works like the OES feed above. The main difference is that this new feed sends timeout, down, distance, ball on, possession from the controller to the score bug and the UI.

    • OES Code 5833 is the only code supported by the SportApp

    •

      Football needs to be selected on the controller for the OES scoreboard feed to work

Nevco Football

  • Nevco feed pulls data from the Nevco scoreboard controller to the SportApp. It sends clock, score, timeouts, down, distance, ball on, possession and period to the score bug and UI.

    • Nevco Code 827 is the only code supported by the Football SportApp
