Live Book GFX: What are the common scoreboard feeds in the Sport App soccer?

Topic

  • What are the common scoreboard feeds for the Soccer SportApp?

Environment

  • Product: SportApp
  • Component:
  • Control System: Live Book GFX®

Steps

  1.  Click on the SportApp Settings from the bottom right of app.
    Sportapp menu.png

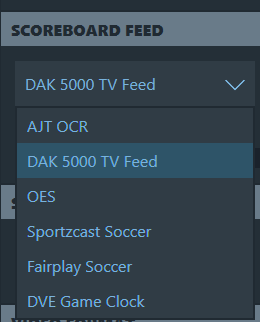

  2. Each scoreboard option can be found under the Scoreboard feed dropdown.

Common Scoreboard Feeds

AJT OCR

  • The AJT OCR feed is used to get data from a camera pointed at a scoreboard to the score bug.
  • The OCR clock only pulls the game clock. The BNC cable from the camera connects to input 1 of the Ioxt to get this data to the SportApp.

OES

  • The OES feed takes the clock, period, and score from the controller and sends it to the score bug.

    • OES Code 5833 is the only code supported by the SportApp

    •

      Soccer needs to be selected on the controller for the OES scoreboard feed to work

DAK 5000 TV FEED

  • DAK 5000 TV feed pulls data from the DAK scoreboard controller to the SportApp. It sends game clock, score and period to the score bug and UI.

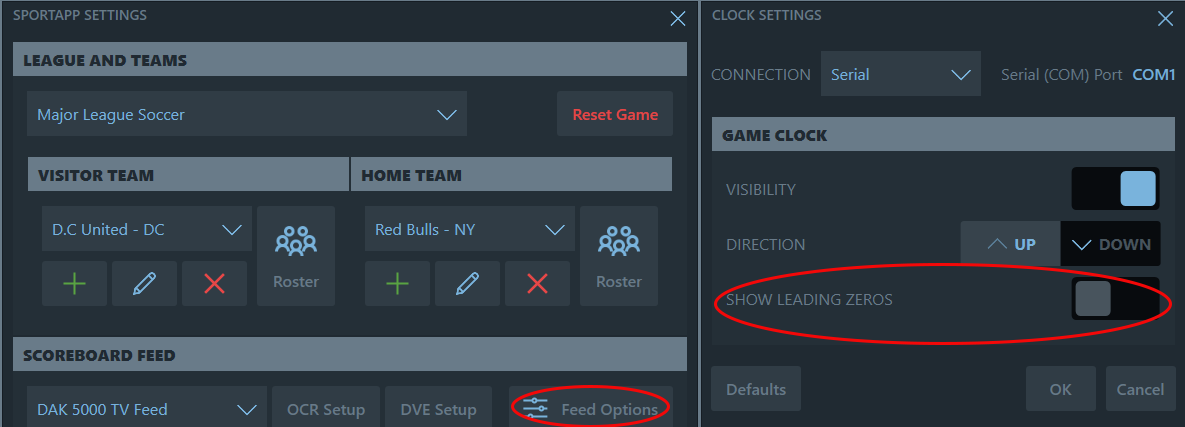

    dak 5000 tv feed soccer.png

Show leading zeros

  • When show leading zeros is disabled the game clock will show :00
  • When show leading zeros is enabled the game clock will show 00:00

SportZcast Soccer

  • SportZcast sends all the clock data plus period and score to the score bug and the UI. The SportZcast data gets to the app via the network connection.
  • To get the data over the network to the SportApp the sbproto.ini file that contains the feed needs to contain the username and bot file number.

Fairplay Soccer

  • Fairplay feed pulls data from the Fairplay scoreboard controller to the SportApp. It sends game clock, score and period to the score bug and UI.

    • Fairplay does not use specific sport codes, however the correct sport needs to be chosen to work with the SportApp

KB ID: 000004609
