How to configure a new or replacement DMP player for a Venus Control Suite controlled display

Topic

  • How to configure a new or replacement DMP player for a Venus Control Suite controlled display.

Environment

  • Product: DB-6400
  • Components: DMP-8000 p/n 0A-1987-0011
  • Control System: Venus Control Suite

Steps

NOTE:  This guide is for use by Technicians or Installers in the field.

NOTE:  This guide is applicable to displays using Venus Control Suite.

NOTE:  Recommended tools to complete this work include: laptop, spare Ethernet cable, Ethernet coupler (RJ45 female-to-female).

  1. Setup laptop for direct (static IP) connection to devices.
    1. Set laptop IP static within range of the DMP.
    1. Refer to How do I set or change a static IP on my computer or USB to Ethernet adapter? for assistance.
  2. Directly plug the Ethernet cable from the DMP to your laptop.
    1. NOTE:  It is recommended to connect an Ethernet coupler to this cable and use a spare Ethernet cable to extend its reach so you can complete this work in a comfortable and safe position.  Alternatively, if the DMP is easily accessible, you may disconnect the existing cable and plug your spare cable directly into it from your laptop.
    1. This should be the cable that is currently plugged into VLAN 1 port 3 of the Meraki router.
  3. Login to the DMP.
    1. Open a web browser window.
    2. Enter the DMP IP address into the address bar.

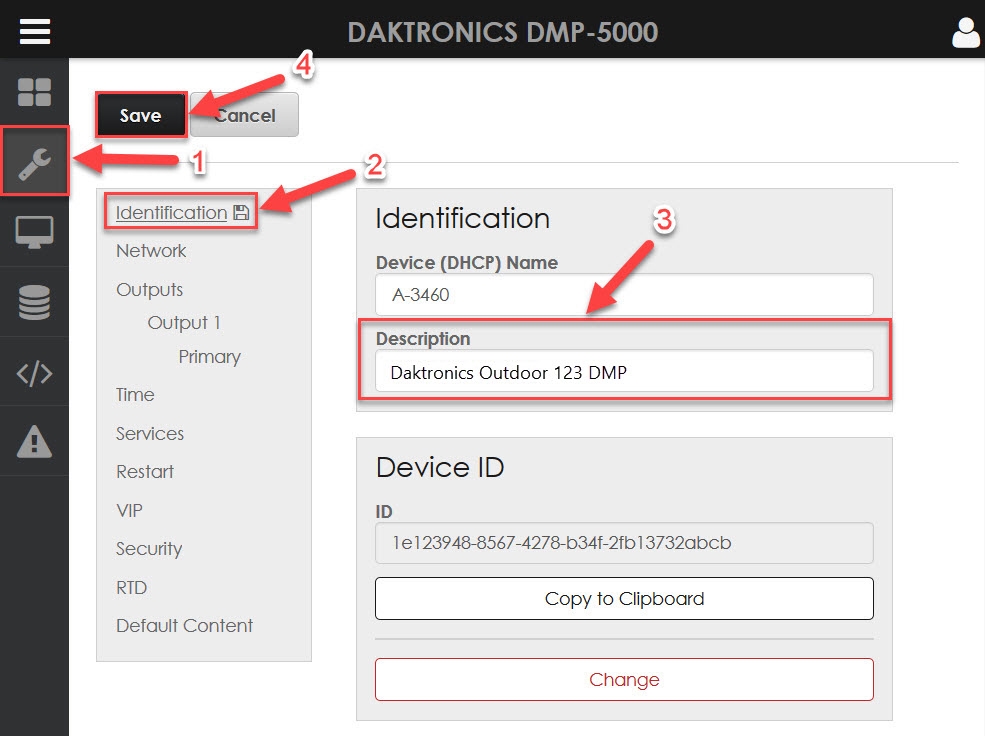

  4. Identification:
    • This information is logged in the case as the site "Description" for you reference.
    1. Click the Configuration menu button.
    2. Ensure the Identification tab is selected.
    3. Update the Description box with the site specific name and number followed by "DMP".
    4. Click Save.
    5. Enter the player's password if prompted.

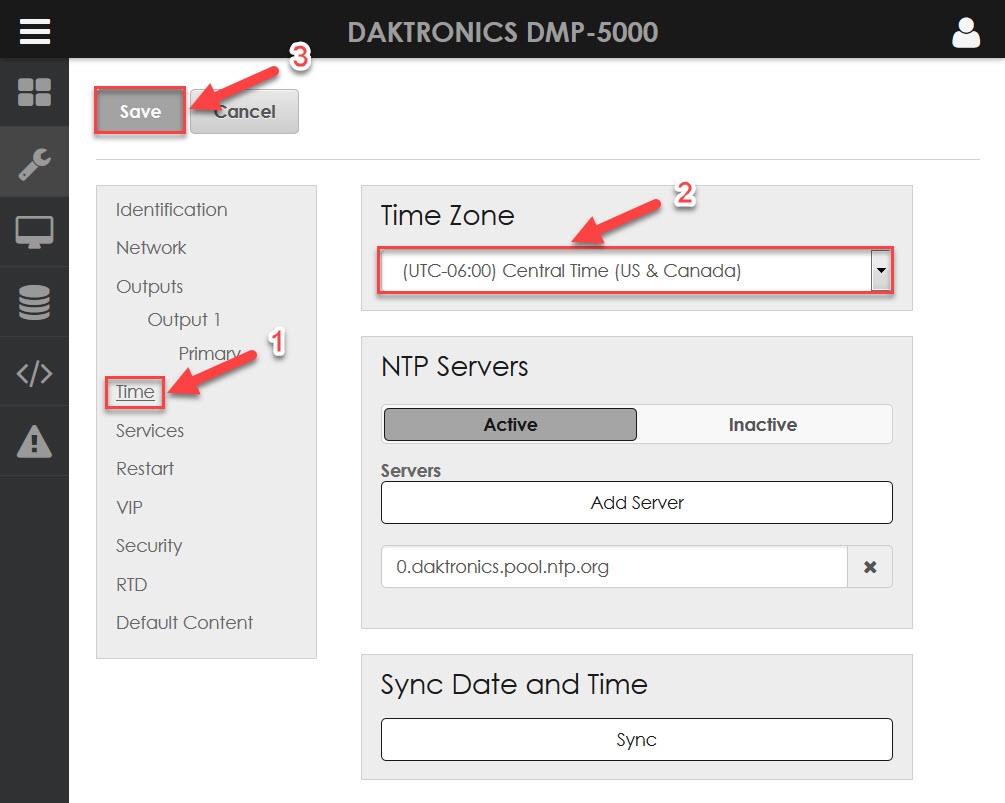

    1. Time Zone:
      1. Select the Time tab.
      2. Select the site specific time zone from the dropdown menu.
      3. Click Save.

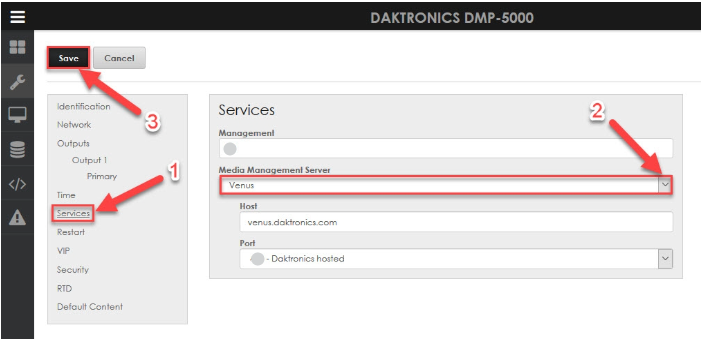

    1. Services:
      1. Select the Services tab.
      2. Select the dropdown arrow next to Media Management Server and select Venus.
      3. Click Save.

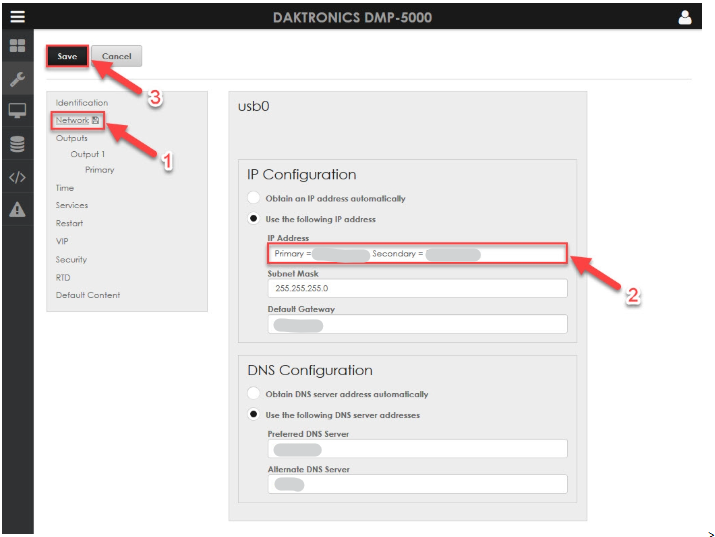

    2. Network:
      • For network information, contact Daktronics Technical Support
          1. NOTE:  Saving this setting may disconnect you from the device.  Repeat step 3 "Login to the DMP" above using the device's new IP to reconnect with the device to continue.
          2. Select the Network tab.
          3. Update the IP Address box with the site specific IP.
          4. Click Save.

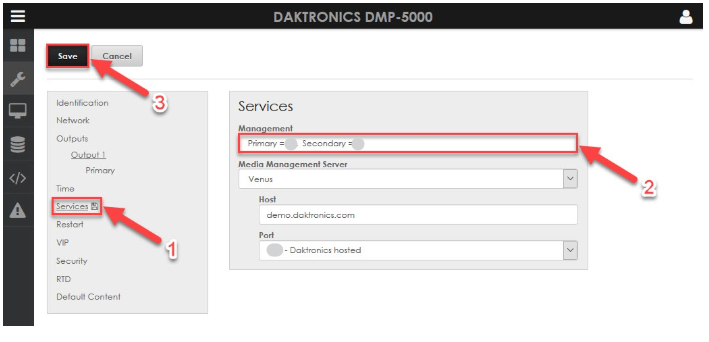

      • Services:
        1. Select the Services tab.
        2. Update the Management box with the site specific port.
        3. Click Save.




        • Contact Daktronics Technical Support at 1-800-DAKTRONICS to have the new device registered.
