Live Clips: How to load configuration profiles for my player?

Topic

  • How to load configuration profiles for my LiveClips player?
This configuration page is useful for LiveClips users that need to adjust their output size to match a specific display area.



Environment

  • Product: Show Control / DMP-8000 version 8.25 or later.
  • Components:
  • Control System: Live Clips

Steps

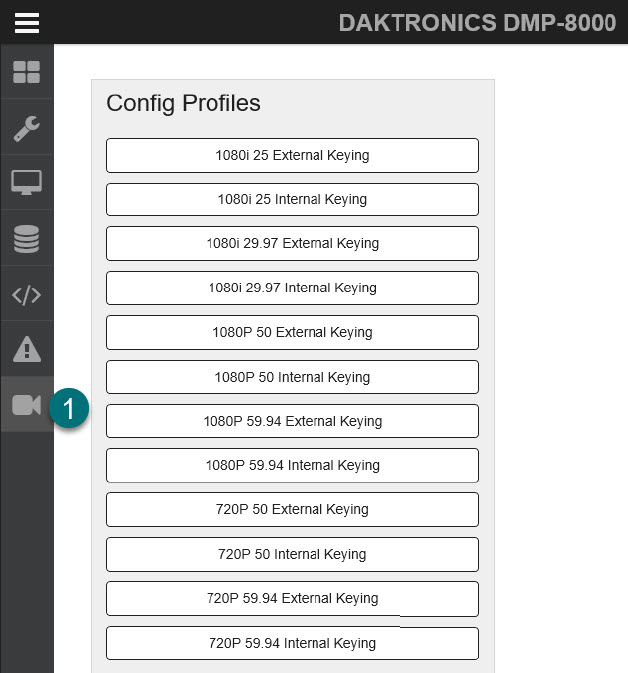

Cong Profiles

  1. Click on the DMP_Profiles icon on the desktop.  (If the icon is not available, go to http://{hostname or IP}/#profiles .)
  2. Pick the desired profile from the list of options.
  3. Click Continue to confirm the configuration changes.  The player will restart.
 8000 profile config tool.gif
  1. The profile change will set after the restart.

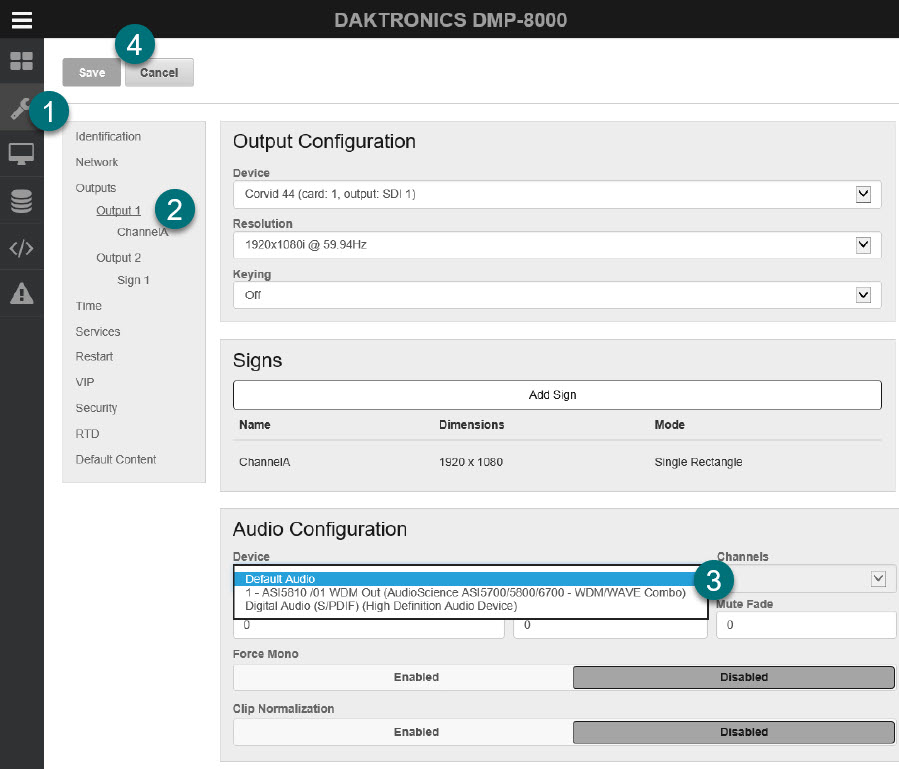

Configure the Audio Output

Change the audio default in the DMP-8000 user interface to finish setting up an XLR audio output.
  1. In the DMP interface, click Config (Wrench) in the main menu to open the configuration menu.
  2. Click the output listed under Outputs. An Output Configuration window opens.
  3. Under Audio Configuration, Select the audio device from the Device drop-down list.
  4. Click Save.
8000 profile config tool2.gif



KB ID: 000004478
