Daktronics

Venus Scheduling: How do I bypass VCS cloud configuration to play content directly from the DMP?

Topic

 How do I bypass cloud scheduling and play content directly from the DMP (no VIP present).

Environment

  • Product: NPN-4100
  • Components: DMP; VCS (Cloud based)
  • Control System: VCS; Venus Control Suite

Steps

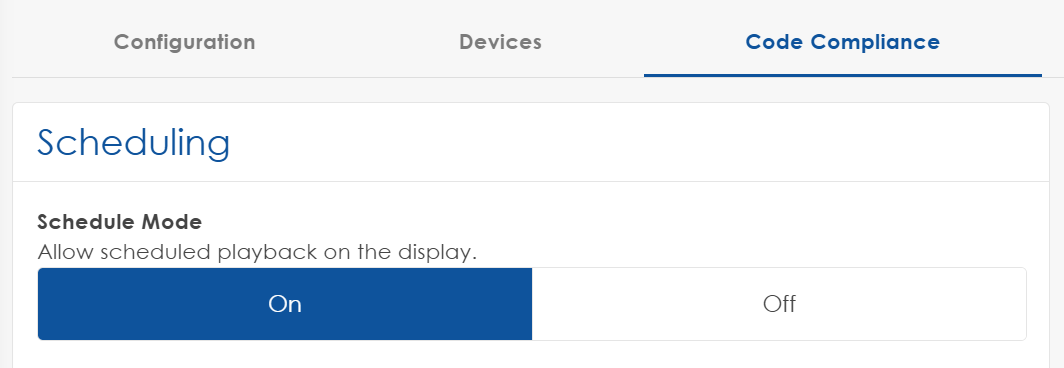

Venus Displays- turn off schedule mode

  1. Log into Venus Control Suite Venus Accounts: How do I log in to Venus Control Suite?
  2. Select Displays from the My Apps menu. (🛠️Admin rights required)
  3. Select the impacting display > Code Compliance tab.
  4. Change the Scheduling mode to off.
  5. Save changes.


DMP

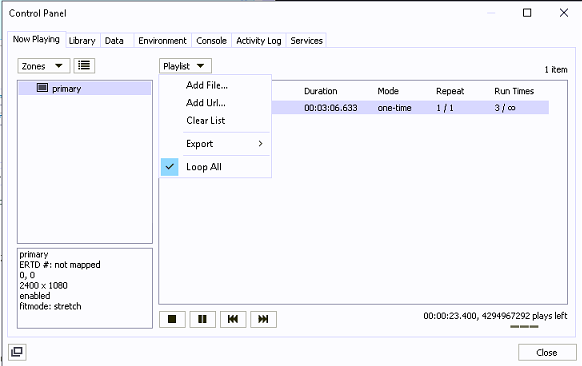

  1. Log into the DMP directly and open the Control Panel.
  2. From the "Now Playing" tab, click the "Playlist" dropdown and add the content needing to be played (if needed, add content locally to DMP's content folder first).
    *If needed, select the Loop All option under the "Playlist" dropdown also.
  3. Enable schedule mode back to VCS when ready to go back to cloud content.

KB ID: 000004345
