Diagnostics: Where do I find display diagnostics in Venus Control Suite?

Topic

  • Where do I find display diagnostics in Venus Control Suite?
  • How do you access IDM in Venus Control Suite?

Environment

  • Product: DI-6000 rev 6.1 and higher, VP-6000 rev 6.1 and higher, VIP-5000 series rev 2018.02.20-b2194 and higher
  • Component: System Health
  • Control System: Venus Control Suite Locally Hosted version 0.1.582 and higher, Venus Control Suite Daktronics Hosted

🛠️Administrators have access the Displays app.

Venus Diagnostics or System Health provides the ability to view diagnostic information of a digital display from computer to module components.  Access and visibility to diagnostics is based on licensing.

Venus Package Requirements: Venus Control Suite Package Choices



Steps

View Diagnostics via Displays App.

  1. Log into Venus Control Suite.  See: Venus Accounts: How do I log in to Venus Control Suite?
  2. Open the Displays App from the Apps Menu located in the top right of the VCS landing page. Venus: My navigation has changed after updates.
  3. Click on the applicable display.

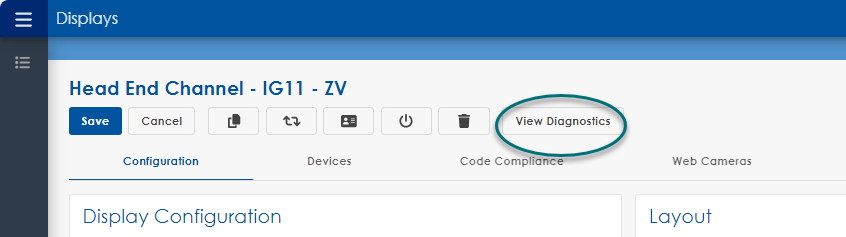

  4. Click on the View Diagnostics button.

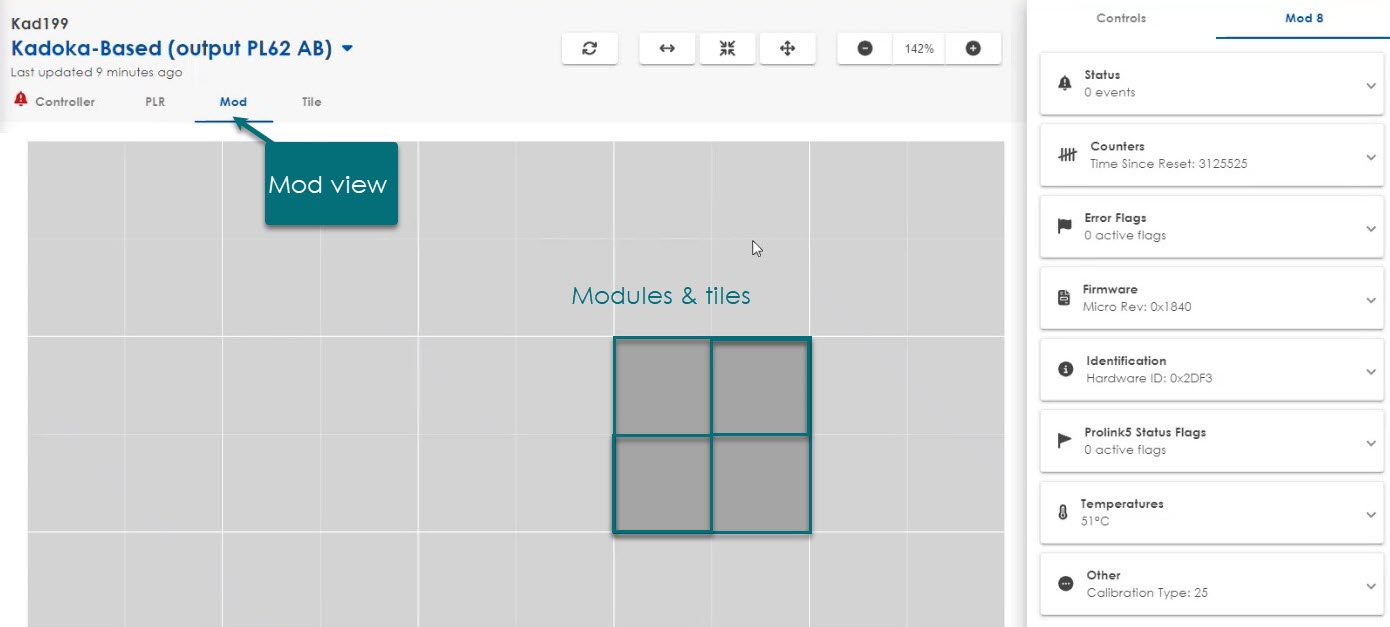

Mod monitoring

Screenshot 2024-05-30 151529.jpg

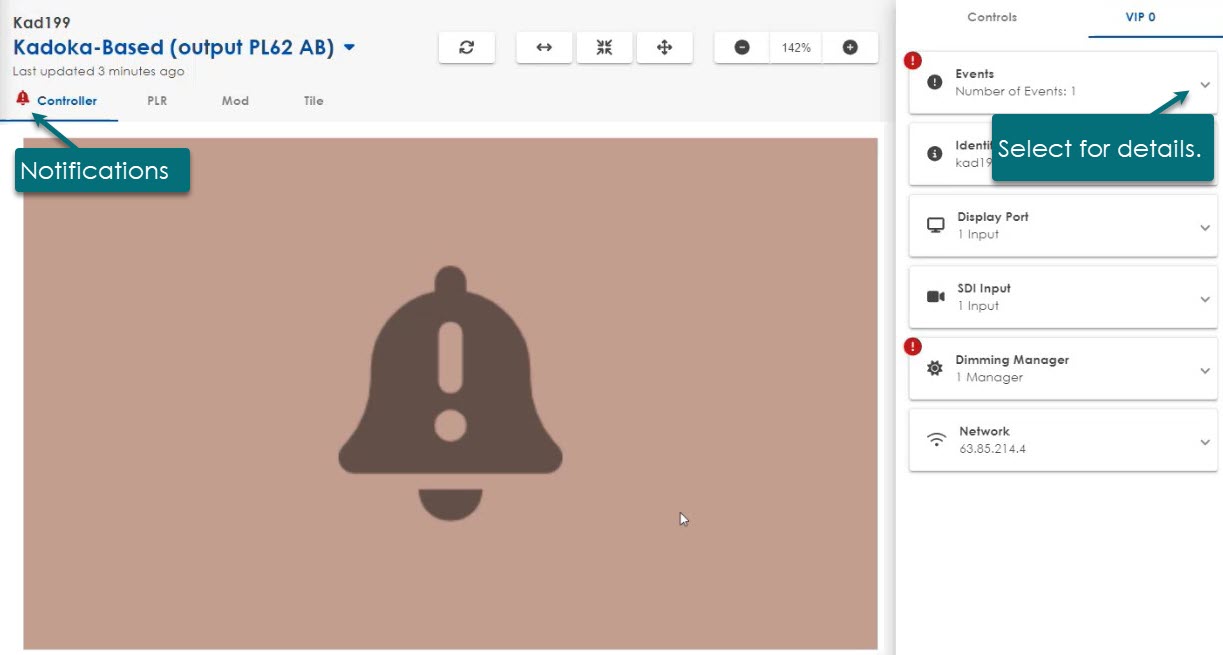

Control monitoring

Screenshot 2024-05-30 132656.jpg

👇Click on the arrows to expand each section.

View diagnostics via the Monitoring app dashboard.
  1. Log into Venus Control Suite.  See: Venus Accounts: How do I log in to Venus Control Suite?
  2. Open the Monitoring App from the Apps Menu located in the top right of the VCS landing page. Venus: My navigation has changed after updates.

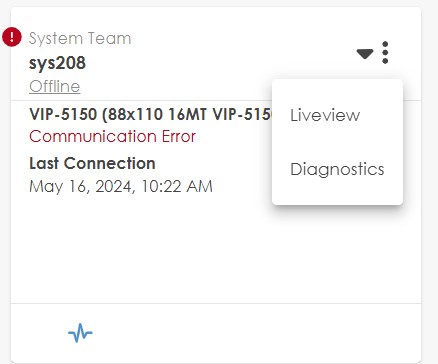

  3. From the top corner of the tile, select diagnostics.

Screenshot 2024-05-30 132713.jpg

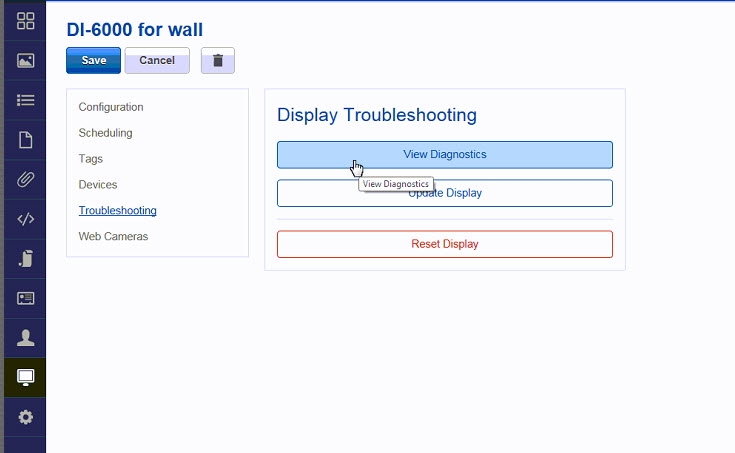

Legacy method without Venus Displays App
  1. Select Displays.
  2. Click the display you wish to view diagnostics for.
  3. Click Troubleshooting.
  4. Click the View Diagnostics button.
    1-16-2017 10-45-34 AM.jpg

If the "View Diagnostics" button is not present:



KB ID: 000002196
