Display Studio: How do I create buttons that trigger look changes for my 6000 Processor?

Topic

  • Buttons to control the VP-6000 looks using PuTTy/ System Control Scripting
  • Show Control's Display Studio script buttons for layout or look changes


Environment

  • Product: VP-6000 Series Processor version 9 or later
  • Component: Display Studio 2.5 or later
  • Control System: Show Control Suite
This article details the original process of triggering looks on a VP-6000. It is considered a legacy workflow. Please see this article for the current process of triggering looks: How do I create display studio scripts to trigger the VP-6000 looks? (VP-6000 version 9 or later and Show Control 2.5 or later)

Steps

To best manage VP-6000 scripts, it is advised to create a series of admin button scripts that can be used as include scripts for look control. These include scripts will permit the user to later embed the admin scripts in a new scripting button in Display Studio.  This will minimize the duplication of admin commands that need to be created.

The VP-6000 look package is configured in the config.js file.

To verify which looks you have for an specific site connect to the VP-6000 with putty using How to log into DI-6000 or VP-6000 using PuTTY

Type the following command:  cat /etc/kadoka/config/vpctld/0/js/config.js
Some potential triggers (names may be different/custom for your config):

Single Looks Package

  • Fullscreen
  • LBar_Left
  • LBar_Right
  • UBar_Bottom
  • UBar_Top
  • Pillars
  • Letterbox
  • LBar_TopLeft
  • LBar_TopRight
  • UBar_Left
  • UBar_Right

Dual Looks Package

  • FullscreenA
  • FullscreenB
  • LBar_LeftA
  • LBar_LeftB
  • LBar_RightA
  • LBar_RightB
  • UBar_BottomA
  • UBar_BottomB
  • UBar_TopA
  • UBar_TopB
  • Pillars_A
  • Pillars_B
  • LetterboxA
  • LetterboxB
  • LBar_TopLeftA
  • LBar_TopLeftB
  • LBar_TopRightA
  • LBar_TopRightB
  • UBar_LeftA
  • UBar_LeftB
  • UBar_RightA
  • UBar_RightB
Note: Looks with A will be on top of B if their area_A and area_B rectangles overlap.

The Sources for Single looks package are as follows:

  • PIP_DMP (DisplayPort Input)
  • PIP_Video_A (HD-SDI input 1)
  • PIP_Video_B (HD-SDI input 2)
  • PIP_Video_C (HD-SDI input 3)
  • PIP_Video_D (HD-SDI input 4)

The Sources for Dual looks package are as follows:

  • PIPA_DMP_ (DisplayPort Input)
  • PIPA_Video_A (HD-SDI input 1)
  • PIPA_Video_B (HD-SDI input 2)
  • PIPA_Video_C (HD-SDI input 3)
  • PIPA_Video_D (HD-SDI input 4)
  • PIPB_DMP_ (DisplayPort Input)
  • PIPB_Video_A (HD-SDI input 1)
  • PIPB_Video_B (HD-SDI input 2)
  • PIPB_Video_C (HD-SDI input 3)
  • PIPB_Video_D (HD-SDI input 4)

Button Creation

      Note: Advanced Scripting must be enabled in Display Studio, See Advanced Option Under System Control is Missing from Display Studio



  1. Create a Script button in Display Studio.
  2. Right click, select New button.
  3. Add Line
    1. System Control
    2. Advanced
    3. Play
    4. Choose the following:
  • Protocol: UDP/IP
  • Address: (ip address of VP6000 to control)
  • Port: 1337
  • Sign Number: 0
  • Drive Letter: J
  • Library: leave this blank
  • File: name of source in config.js

    5. Continuous

    4.  Repeat to script the backup VP-6000 if available. Name the button "display name-name of trigger in config.js (above)"

      • Example Main- LBar_Left

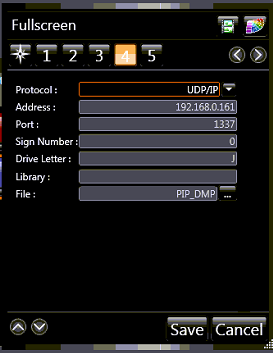

     Look PIP_DMP.png





















            5.   Add line in script button to call out a look for the selected source. Use the same address, port sign number and Driver letter in previously configured line.

            6.   Sources should be scripted before looks

            7.  PIP_DMP only needs to be called out for Fullscreen DMP

    • This will also need to be scripted for the backup VP-6000

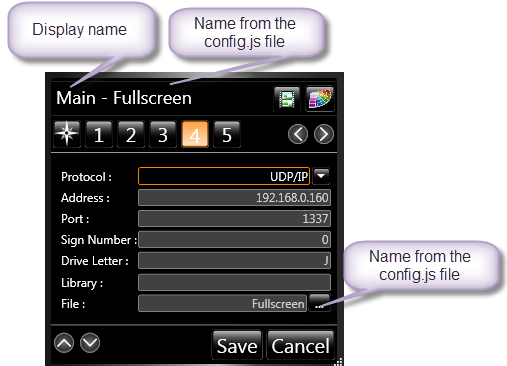

     step 4 script example.png

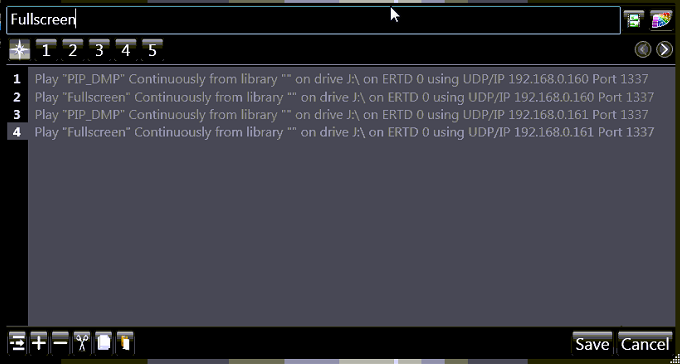

    See example below of what a primary/backup scripting button should look like when finished.

    Look Scripting Lines2.png
