Is it possible to override a BCD activated message

Topic

  • Is it possible to override a BCD-activated message?

Environment

  • Product Family:  Transportation
  • Product: VFC
  • Components: BCD Switch configured VFC
  • Control System: Vanguard Professional software

Steps

  1. Yes, it is possible to override a BCD activated message.  BCD has a priority of 128 (Normal).
    1. The message must be a higher priority than the BCD-activated messages
      1. Create a message with appropriate priority in Vanguard Professional Content Studio.
        Capture 6.PNG
    2. Activate the message with Vanguard Professional software (or other NTCIP-compliant software cable of creating content with specific priority).

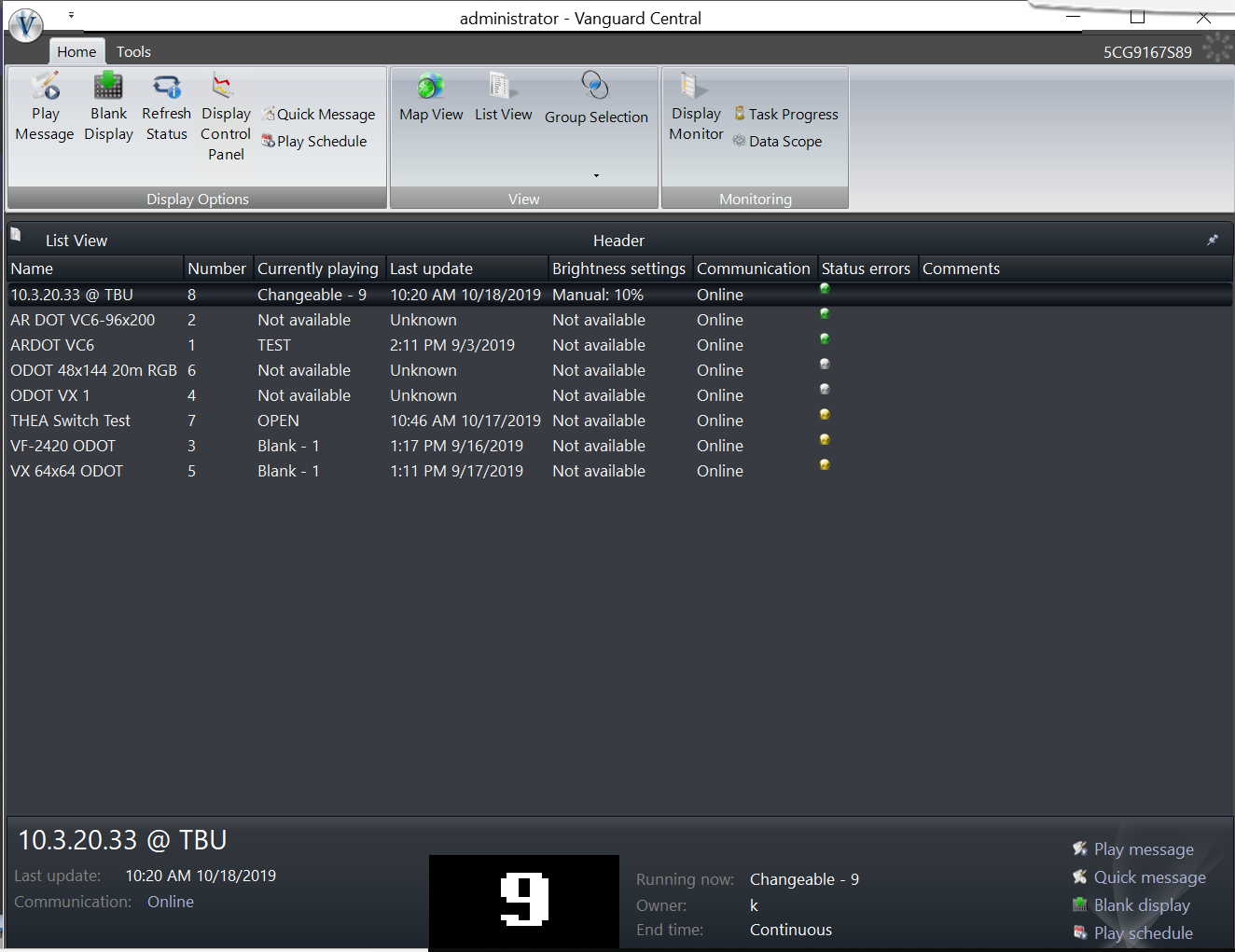

      Capture 1.PNG

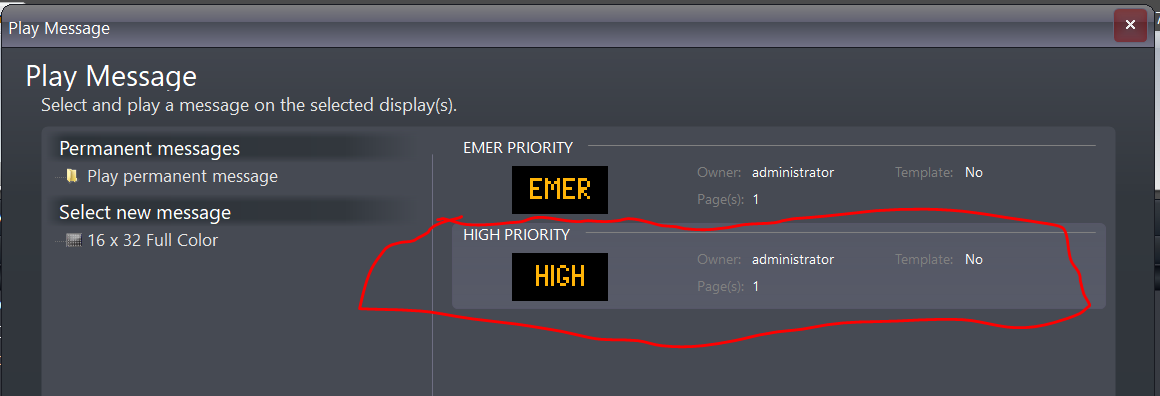

      Capture 2.PNG
    3. Refresh status in Vanguard and verify the message is playing.

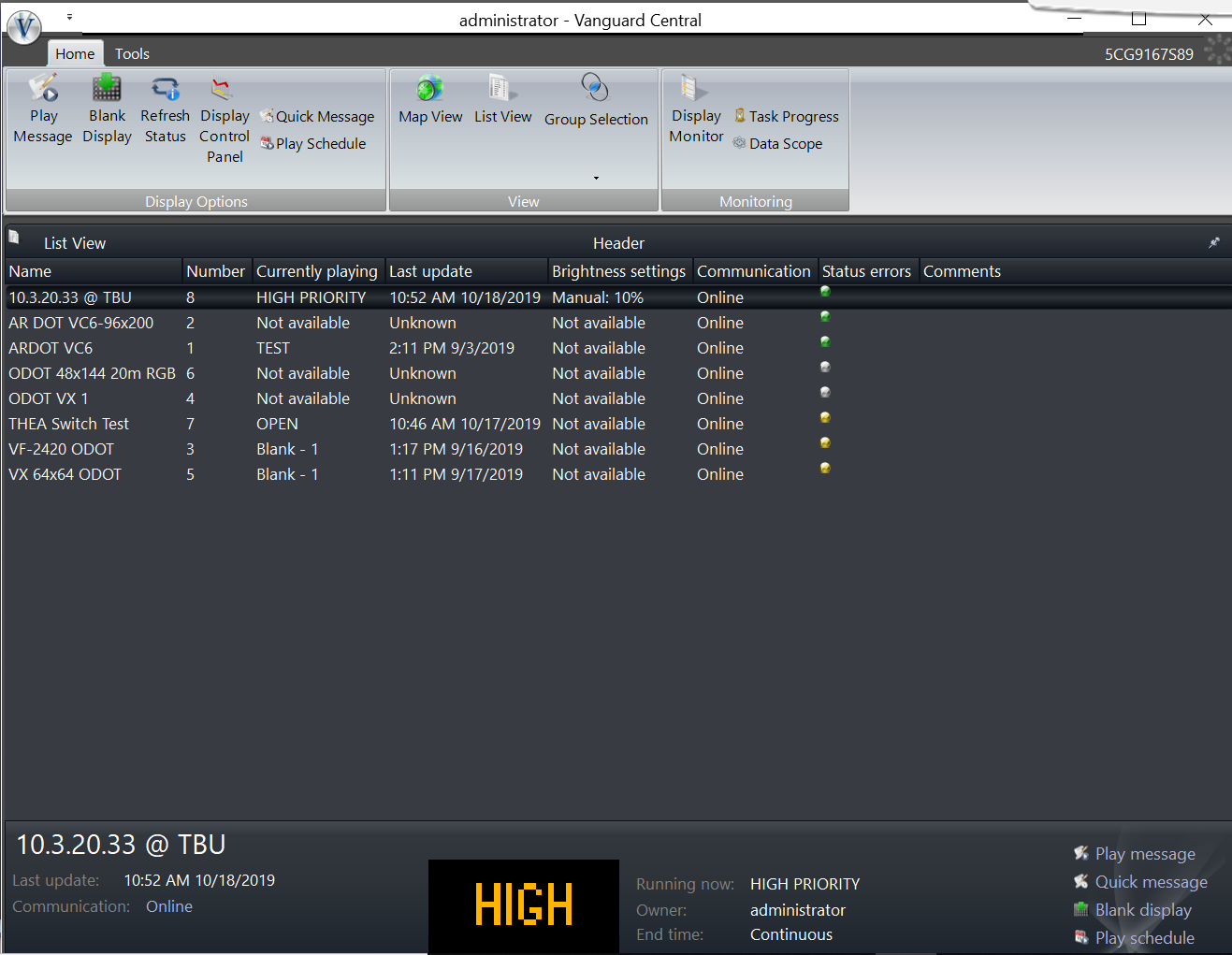

      Capture 3.PNG
  2. To revert back to BCD-activated (local control) message, blank the display in Vanguard Professional software.

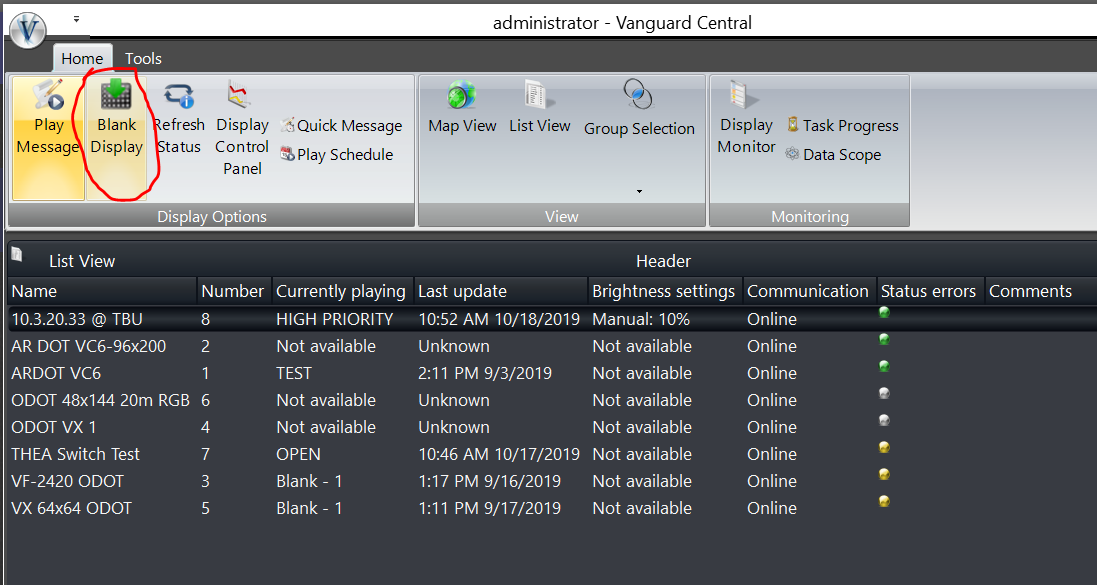

    Capture 4.PNG
  3. Then refresh status to verify BCD-activated message is playing.

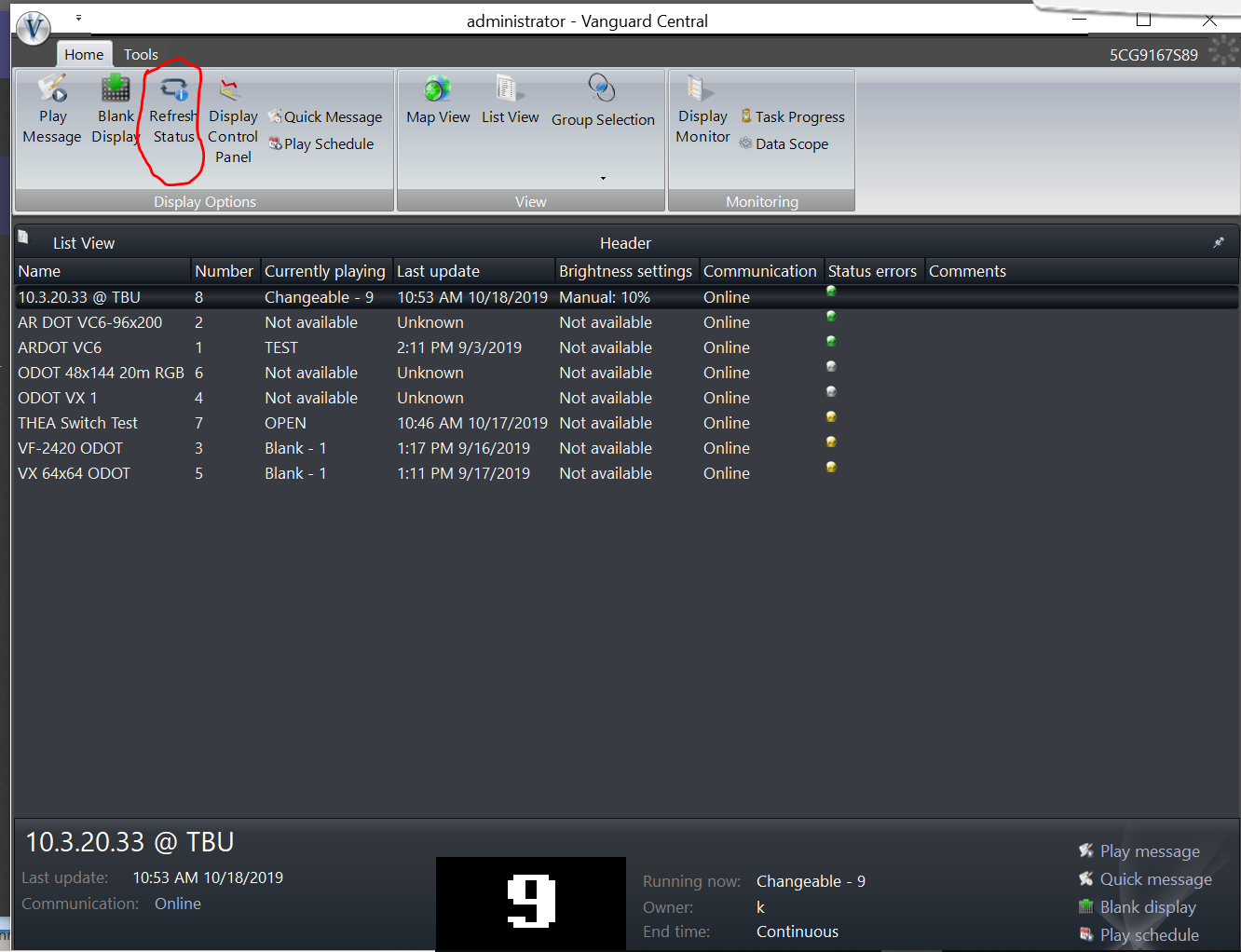

    Capture 5.PNG

KB ID: DD4541088
