Door switch will only show Opened in VIP, Door switch wired incorrectly

Potential Symptoms

  • Door switch will only show Opened on VIP.
  • Display may be blank due to the door showing opened.

IDM Symptom

  • Control Enclosure Opened on the VIP.

Environment

  • Product Family: Billboards
  • Product: Digital Billboards
  • Component: Door Switch
  • Control System:

Cause

  • Door switch is wired incorrectly.

Resolution

  • Wire door switch correctly.
    • Connect red wire to COM. (Common)
    • Connect black wire to NO. (Normally Opened)

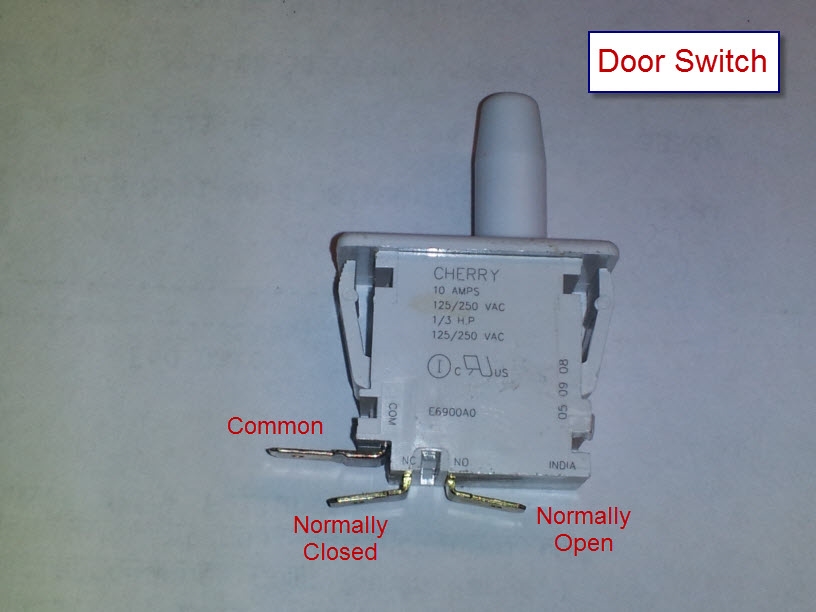

door switch.jpg


KB ID: DD4163923
