How to configure the DMP 8000 to output over multiple video output devices

Topic

  • How do I configure the DMP 8000 to output over multiple video output devices?

Environment

  • Product Family: Control System, Video
  • Product:
  • Components: DMP-8000 V8.11 and newer
  • Control System: Show Control, Display Studio

Steps

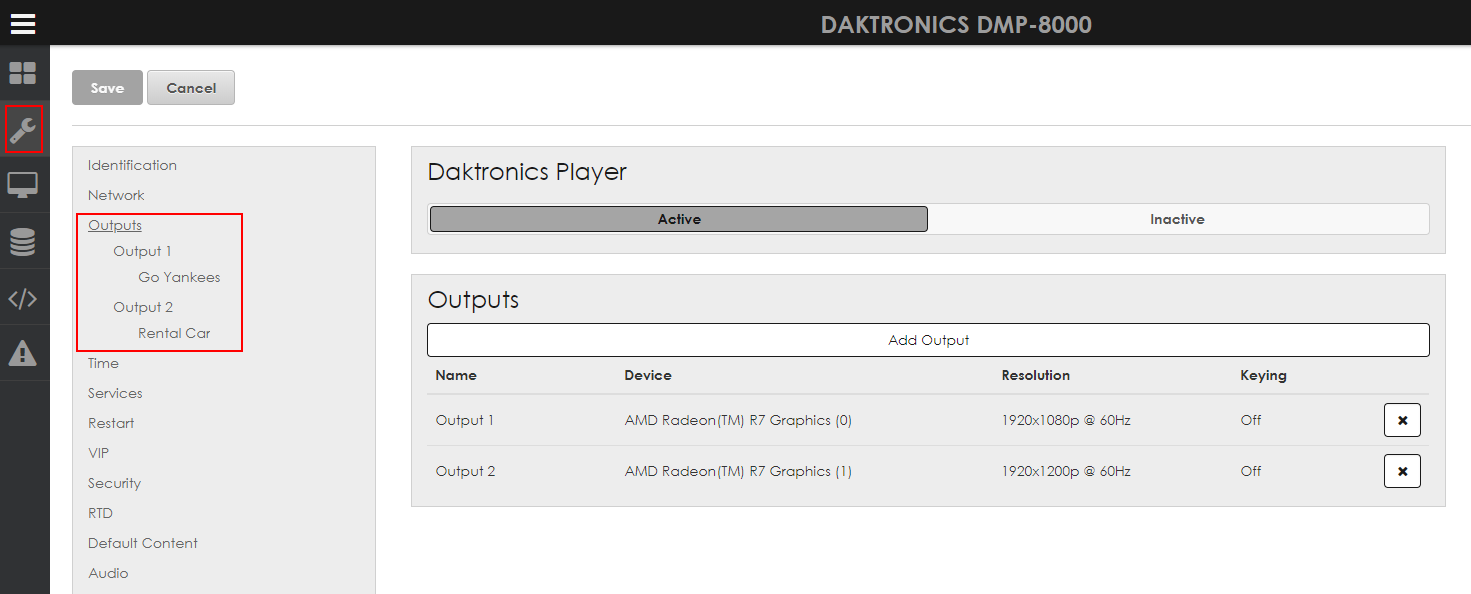

  1. Navigate to the configuration section of the DMP UI and select Outputs.multi-out main.png
  2. Click to the Add Output button to created the additional outputs.
  3. Once added, each new output will need to be fully configured before you will be able to save the configuration to the display.

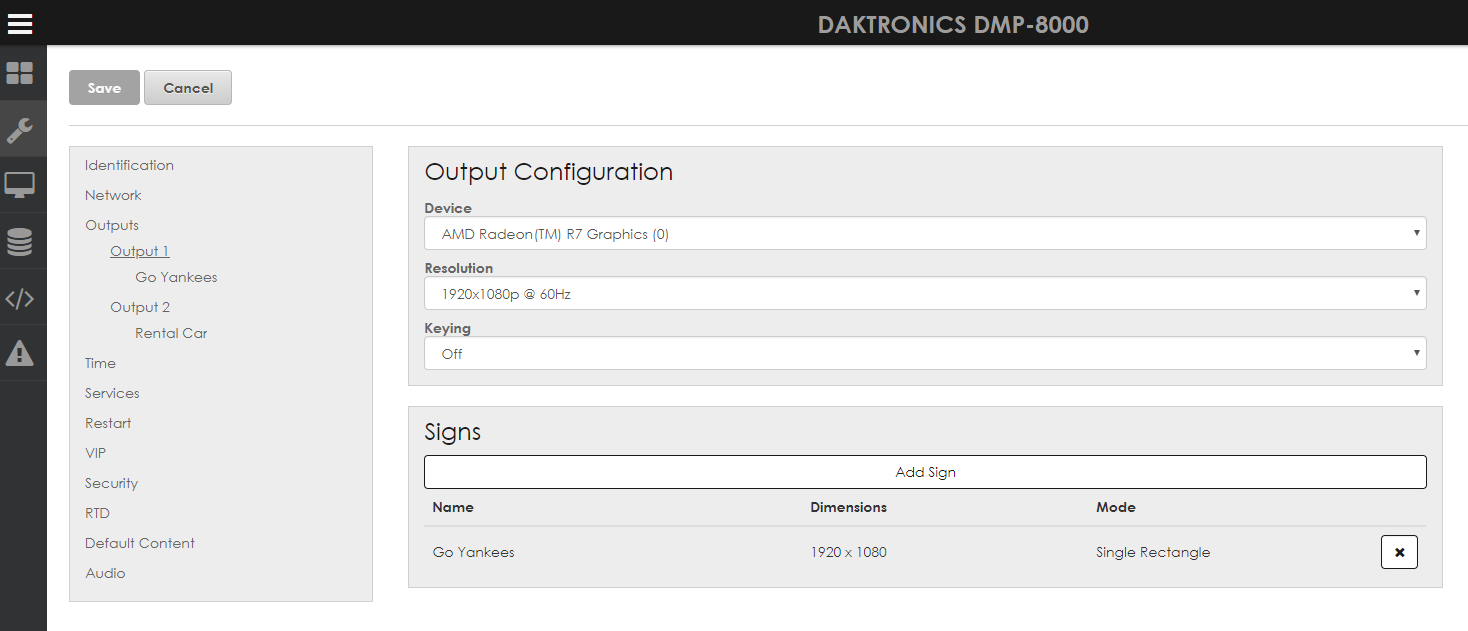

  4. Click the Output 1, Output 2, etc. links to configure each output.out config.png
  5. Select the Device, Resolution, and Keying value from the provided lists.
  6. Click Add Sign for each specific sign needed for each output.

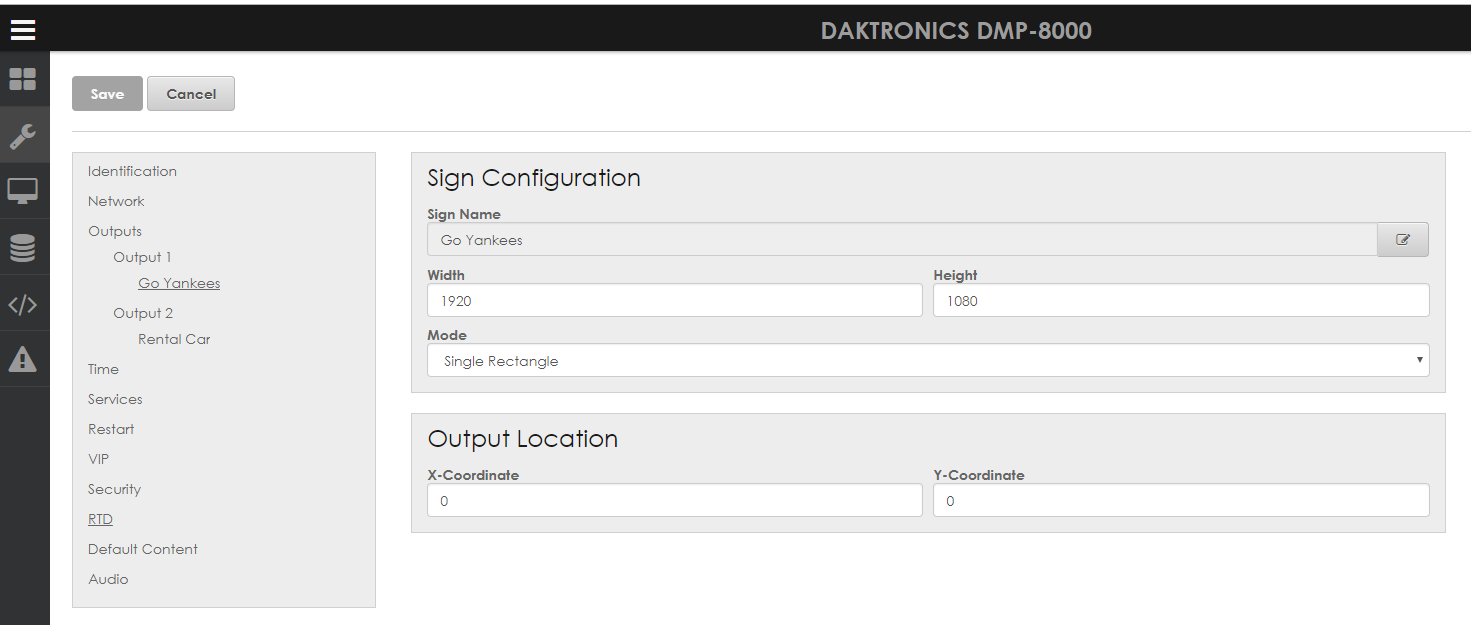

  7. Once added, each new Sign must be fully configured before the updated configuration can be saved to the display.sign config.png
  8. Fill in all required values for each sign.
  9. Once all outputs and signs have been fully configured, save the configuration to the display.
