How do I use diagnostic test patterns to identify Pro Link Router (PLR), SATA cable, and module problems for a GP3?

Potential Symptoms

  • How do I use diagnostic test patterns to identify Pro Link Router (PLR), SATA cable, and module problems for a GP3?

Environment

  • Product Family: Message Displays
  • Product: GP3
  • Component: DMP-4060 (known to work on firmware 1.10.14 or higher)
  • Control System:

Resolution

  1. Connect to the display's web interface page.
  2. Navigate to the Display Control tab.

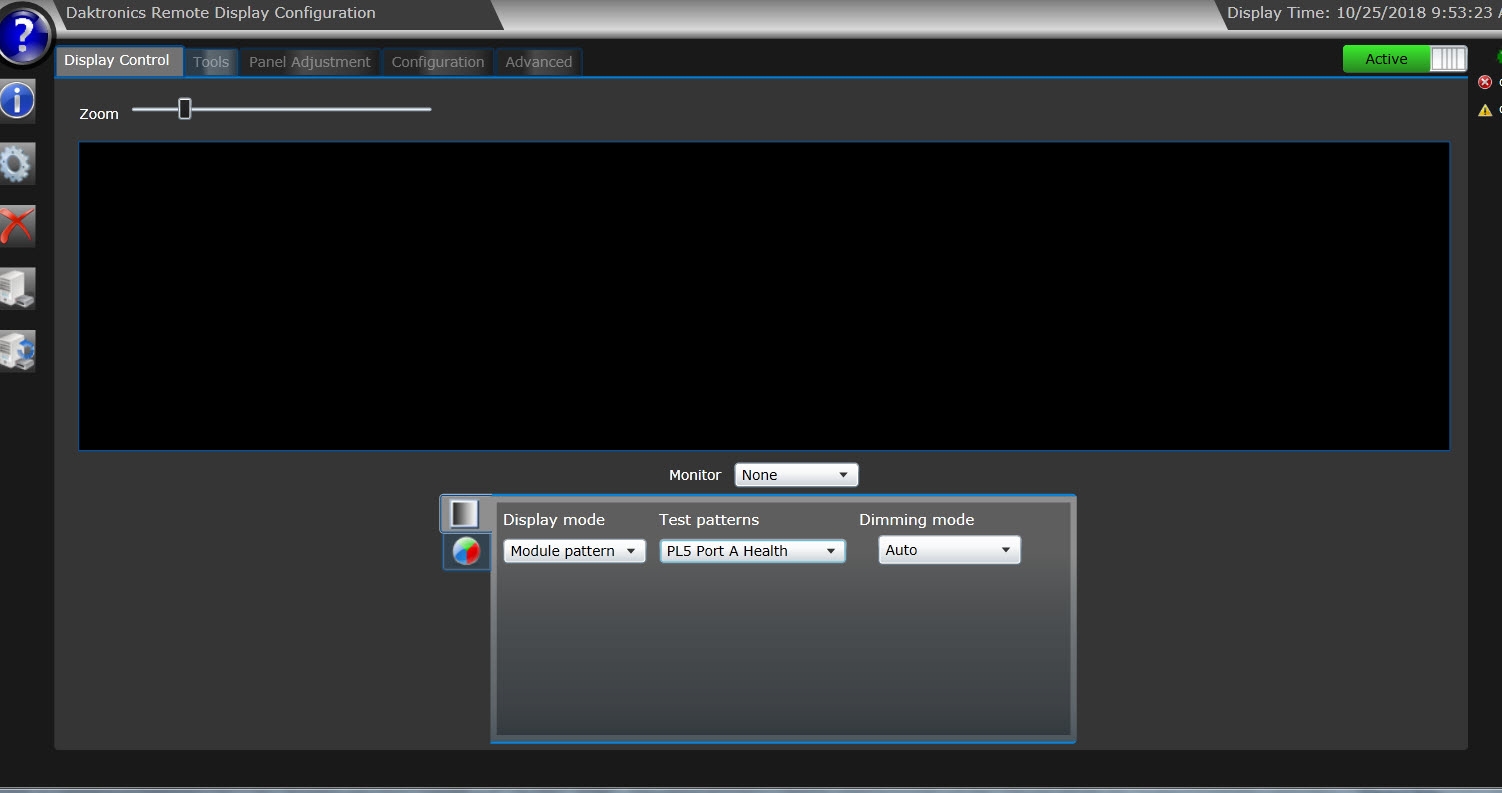

  3. Go to Display Mode and choose Module Pattern.
  4. Under Test Patterns:
    • Choose PL6 Port A Health and PL6 Port B Health to check the fiber connections to the PLRs.
      • Ideally you want the modules to show green. BUT, for a single face GP3, it will normally show red for the Port B Health test. And for a two faced GP3, the mirror side will normally show red for the Port B Health test.

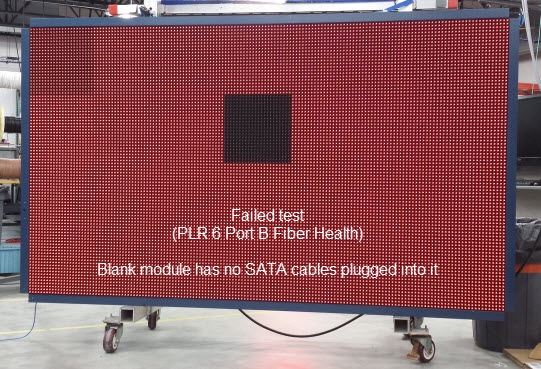

      • Examples:
    • Choose PL5 Port A Health and PL5 Port B Health to check the SATA connections on the modules.
      • Ideally you want every module to be green on both sides. If one is red, that means there is a SATA connection issue on its A or B SATA port.

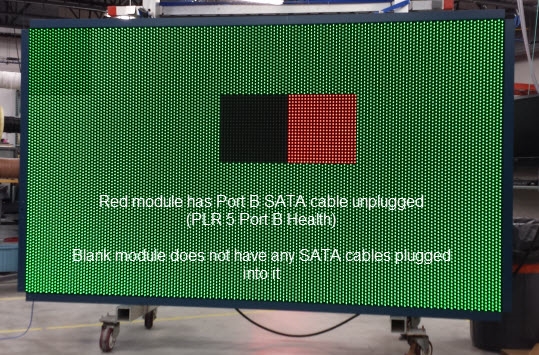

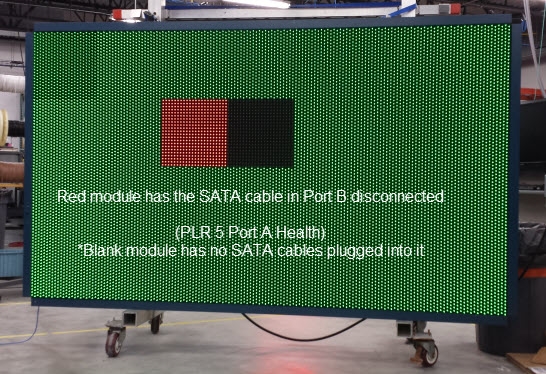

      • Examples:
  5. Set the Display Mode back to Player when you are done.
