Show Control System: How do I add thumbnails from content to a script button?

Topic

  • Add thumbnails to my Display Studio script button
  • Show Control's Display Studio script buttons
  • Scrub through my content to make thumbnails for my buttons in Display Studio
Thumbnails can be added on play, add to playlist, and create playlist commands.  Other script commands can be added via the custom method.  Display Studio: How do I create custom thumbnails for my buttons ?

Environment

  • Product:
  • Components: Display Studio, DMP-8000, DMP-7000
  • Control System: Show Control System (SCS) 2.13+

Steps

For scripting basics, see: Show Control System: How do I create script buttons? .

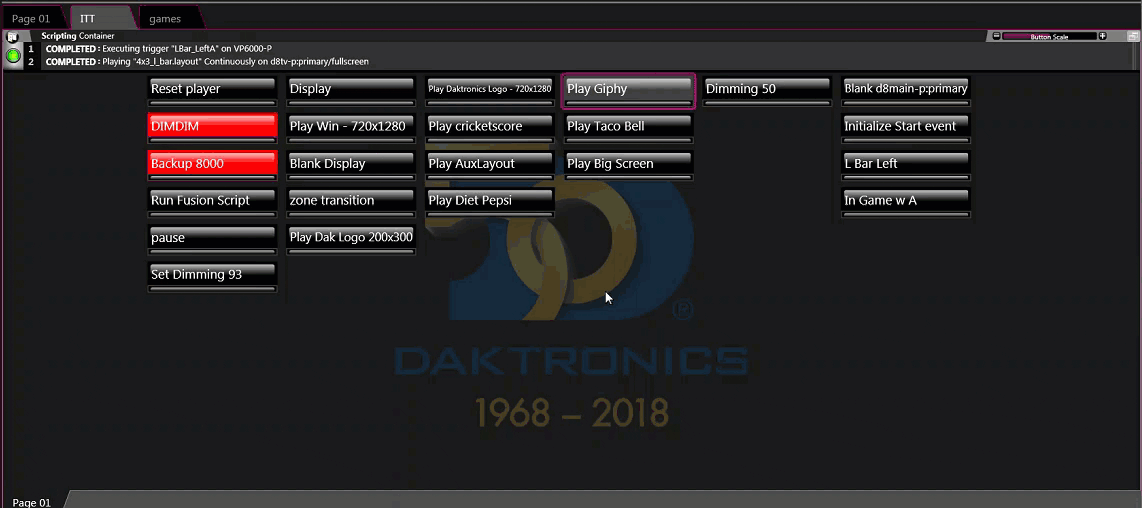

Enable Thumbnails for All Buttons in Container

  1. Right click within the scripting container and pick Properties.
  2. Click on the box next to Visible Thumbnails to enable.
  3. Save.

enable thumbnails.gif
Note: You can also individually choose to show or hide thumbnails by right clicking on a button and choosing Show/Hide Thumbnail.

Create a new or edit a script button.

  1. Create a Script button in Display Studio.
    1. Right click, select New button.
    2. Click on the + to Add Line.
    3. Step 1: Choose DMP-8000 or DMP-7000 Player Control and go to the next step.
    4. Step 2: Place a check in front of the appropriate zones(s) and go to the next step.
    5. Step 3: Select Play and go to the next step. (This works with play, playlist, or create playlist commands.)
    6. Step 4: Click Add. Navigate to the content.

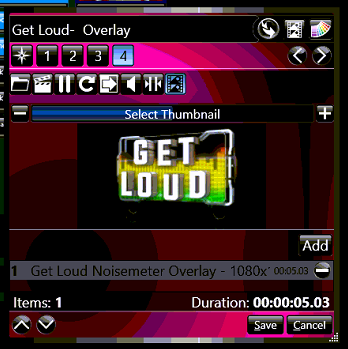

    7. Click on the thumbnail select icon to designate a thumbnail image for the button.
      Display Studio thumbnail 50 percent.PNG
    8. Within the thumbnail preview, use the - or + or hover and grab the scrub bar to navigate through the animation to pick the thumbnail location.  For playlists, this will always be derived from the 1st file.
      Display Studio thumbnail 73 percent.PNG






KB ID: DD4034637
