SportApp: How do I enable scoreboard connectivity?

Topic

  • How do I enable scoreboard connectivity on SportApps?

Environment

  • Product: SportApp
  • Component:
  • Control System: Live Book GFX®
If your LIVEBOOK GFX® is connected to a scoreboard feed, you must select settings to enable this connection.

Steps

To enable the system to receive data from the arena scoreboard system:

  1. Open the Settings Dialog. (bottom right corner)

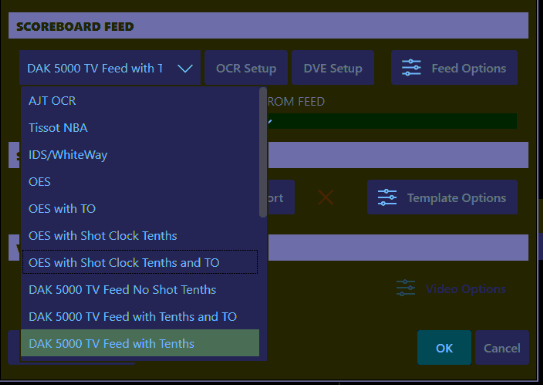

  2. In the Scoreboard Feed section, select the appropriate scoreboard system from the Protocol dropdown.
    OCR clock with LIVEBOOK1.png

  3. Continuing in the Scoreboard Feed section, click the Feed Options button to open the dialog.
    feeds options.png

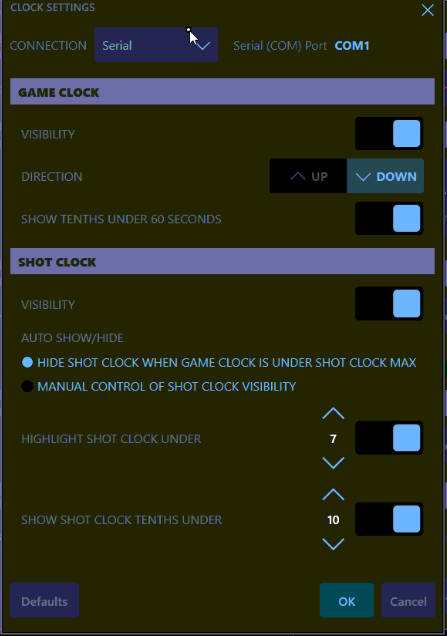

  4. In the Scoreboard Feed Settings dialog, expand the Connection dropdown and specify whether you want the stadium clock to connect to Live Book GFX® via network or serial connection.
    The field to the right of the connection dropdown displays connection port information.
  5. Continue in this window to set up Game Clock and Shot Clock preferences, or click OK to save settings and exit this window.

KB ID: DD3993866
