DMP: How do I configure striping via HTML web interface?

Topic

  • How do I configure DMP Striping via HTML web interface?

Environment

  • Product Family: Software and Controllers
  • Product:DMP-8000 version 7.19 and later
  • Component: User interface, HTML Configuration UI
  • Control System: large video displays
Striped is used for displays that have a width greater than the output width (typically ribbon displays). Display content is broken down into sections smaller than the output width. Refer to contract-specific Schematic Drawings for a description of the number of stripes and their widths and enter this information. For more information, see: What is Striping in a Daktronics Control System?

Steps

  1. Log on to the DMP.  See: How to use the DMP-8000 HTML web user interface. - how to log in, basic info

  2. Edit Display Configuration

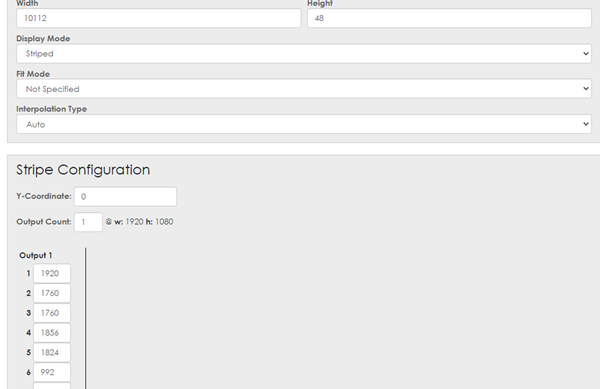

    1. Click on the Wrench Icon in the left side menu.

    2. Scroll down to the Display Configuration section.

    3. Verify the width and height of your full display.

    4. Mode should be Striped.
      to match dwg

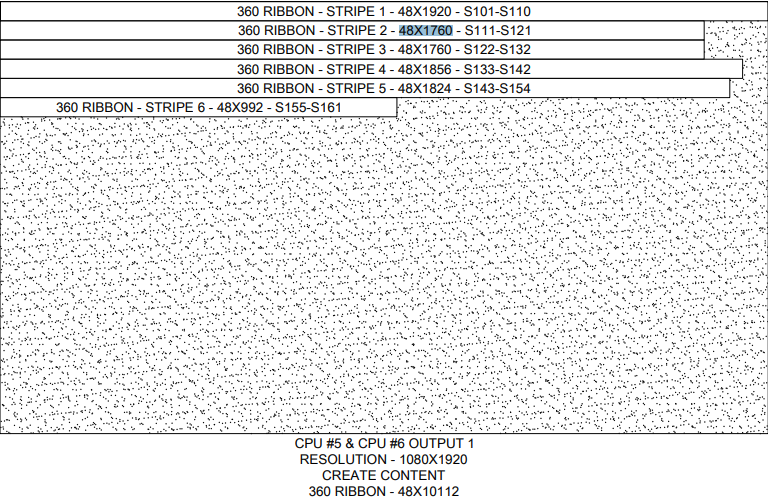

    5. Striping will need to match Create Content box on the Display Control DWG for the display. Will layout display size, striping and how it should look on DMP. This also needs to match the TT on Video Processor for display to show content correctly.

    6. Click Finish to complete the configuration.

KB ID: DD3932167
