My text appears to be cut off or does not shrink to fit in the element in Content Studio

Potential Symptoms

  • Text or data is being cut off

Environment

  • Product Family: Software and Controllers
  • Product: Show Control version 2.0.2 or later and DMP-8000 7.17 or later
  • Components: Shrink text to element feature
  • Control System:

Cause

  1. Text or data string does not fit in the bounding box.
  2. The default text fit and wrapping is normal and word wrap.
    shrink to fit1.png



Resolution

  1. Right click on the data or text field/box.
  2. Choose text fit and wrapping and then shrink text to element.

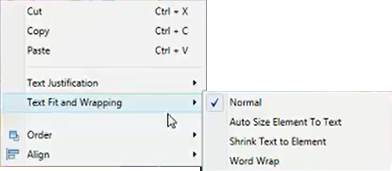

    shrink to fit.png

Note: When the text is shrunk, it will still work with normal editing behavior.  There is currently no limit to how much the text shrinks horizontally to fit in the bounding area.  We recommend previewing content to be sure it is readable on your display.

  shrink to fit2.png

Watch this video to see a demonstration of the shrink to fit feature.



KB ID: DD3618632
