Content Studio: How to Create Media RTD for Top/Bottom Inning Indicator

Topic

  • How do you create MediaRTD for Top/Bottom Inning Indicator in Content Studio?

Environment

  • Product: Content Studio
  • Component: DakStats Baseball, Data Studio Baseball, Content Studio, DMP-8000, DMP 7000
  • Control System: Show Control System (SCS)
This article is meant to show you how to put Media RTD into use. Refer to Content Studio: How do I create media RTD fields?

Steps

 Media RTD fields are fields that display images for real time data fields, instead of data.  Example: I want to use arrows or some other graphic to signify the top or bottom of an inning.

  • DMP-8000 Supported File Types:  VMPL, VMPF, AVI, BMP, JPG, JPEG, PNG, MPG, MPEG, and SWF
    • Images must stored in the MediaRTD folder, located under C:\Program Data\Daktronics\VNET4\Content\MediaRTD
  • DMP-7000 Supported File Types: BMP, JPG, PNG, GIF, and TIF
    • Images must be stored in the Bitmaps folder, located under D:\V7000\Bitmap
  • What the file should be named:
    • The data comes into the Daktronics system as the letters T and B. Therefore, the file for the top indicator should be T.png and B.png for the bottom indicator.

  • What content studio RTD field to use:
    • Game Stats: DakStats BA - Top/Bottom Indicator (T/B)

      TopBottom Indicator.PNG

    • Game Stats: Data Studio Baseball In-Venus Feed - Top/Bottom Indicator (T/B)
      Data Studio Baseball Top Bottom Indicator.PNG

  • What application the stat comes from:
    • DakStats Baseball
    • Data Studio Baseball

  • What the file would look like:
    • Typically, brightly colored arrows or dots placed above or below the inning number are used on top of a solid colored background.

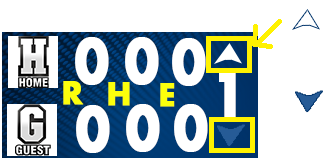

    • The example below would be the Top of the Inning indicator, with the file named T.png
  • The indicator will switch automatically as the innings progress in DakStats or Data Studio Baseball
