How Many Layers Does the Analog Way NeXtage 16 Support?

Topic

  • How Many Layers  (or Channels) Does the Analog Way NeXtage 16 Support?

Environment

  • Product Family: Video Processors
  • Product: Analog Way NeXtage 16
  • Components:
  • Control System:

Steps

  1. The NeXtage 16 supports four (4) scalable layers, and one (1) unscalable background layer.

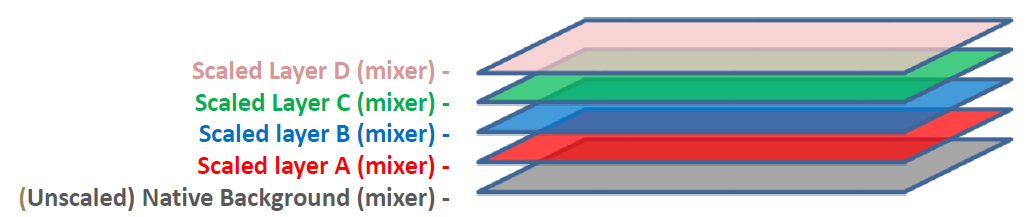

  2. Layers are labeled A, B, C, & D and are ordered with A as the bottom layer and D as the top layer as follows:


KB ID: DD3420311
