New MOXA cable will not connect to my serial j-box, DB9 screw terminals are in the way

Potential Symptoms

  • New MOXA cable will not connect to my serial j-box, DB9 screw terminals are in the way.

Environment

  • Product:
  • Component: Galaxy Serial Communication, MOXA
  • Control System:

Cause

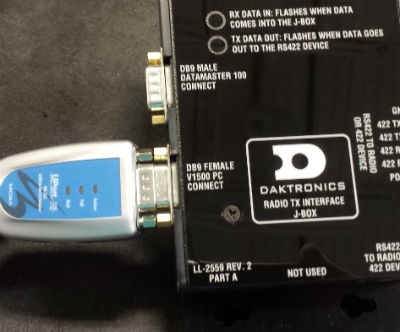

  • Both the MOXA cable and the j-box have screw terminals for a harness to connect to but neither end have screws. These terminals prevent the MOXA from properly seating in the j-box as is seen below.
  • Figure A:
    • ScrewTerminalIssue1.jpg

Resolution

  • Get an additional patch cable or adapter to use as an intermediary attachment for these two devices.
    • The cable or adapter's technical terminology is "DB9 male to DB9 female."
