OmniSport Pro Swimming will not connect to ENet OmniSport 2000

Potential Symptoms

  • Pro Swimming will not communicate with the Ethernet OmniSport 2000 timing console

Environment

  • ENet OmniSport 2000 Timer
  • OmniSport Pro Swimming version 3.0 or higher
  • Hy-Tek Swim Meet Manager version

Cause

  • Pro Swimming computer has the wireless network adapter set as the top priority.

Resolution

  1. Open your network connections by typing ncpa.cpl into the start menu search bar and hitting enter on your keyboard.ncpa dot cpl.jpg

  2. A network connection prompt should open up.

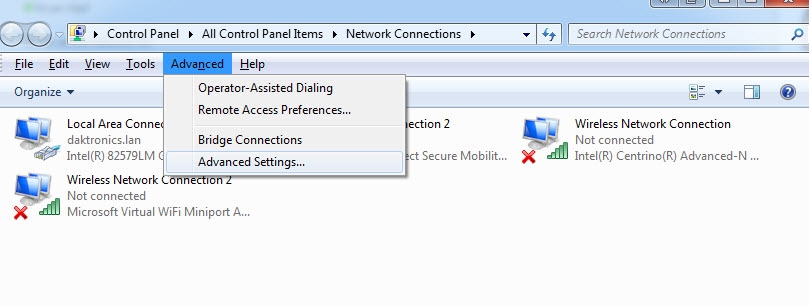

    **Select advanced settings from the tool bar. **If your tool bar is not showing up hit F10 or ALT on your keyboard, you will need to do this for Windows 7.**ncpa advanced settings.jpg

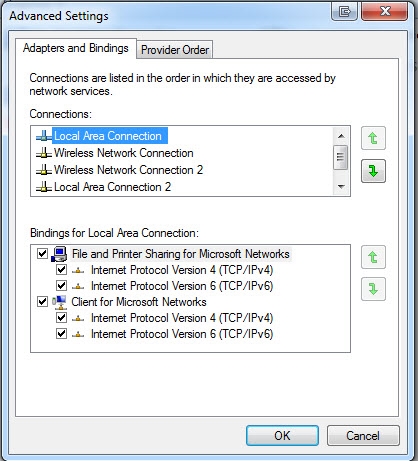

    1. An Advanced Settings window will pop up. Under the Adapters and Bindings tab move the Local Area Connection to the highest priority or the top of the list.
      ncpa adapters and bindings.jpg

  3. Select OK and your Local Area Connection adapter should now take highest priority.
  4. The OmniSport Pro Swimming computer should now connect to the OmniSport 2000 timer via wired network communication.

KB ID: DD2635125
