Content studio receives a fatal error 'Data at the root level is invalid. Line 1, Position 1.'

Potential Symptoms

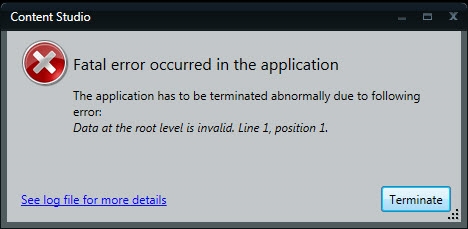

  • When launching Content Studio receive a Fatal error:
    • The application has to be terminated abnormally due to the following error:
    • Data at the root level is invalid. Line 1, Position 1.
    • Datarootlvlerror.jpg

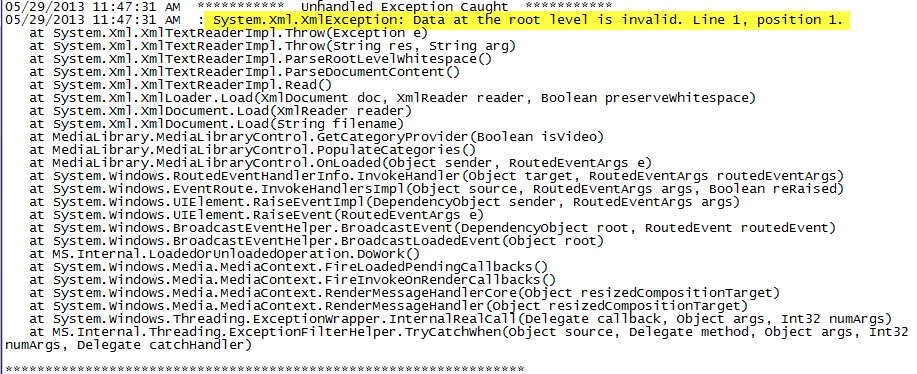

  • When clicking See log file for more details, you see the following error:
    • 5-30-2013 9-38-54 AM.jpg

Environment

  • Product Family: Software
  • Product: Venus 1500 V4.18 and greater
  • Component:
  • Control System:

Cause

  • There is an error when loading the Media Library Categories in Content Studio.

Resolution

  • Delete the Categories.xml file from the Daktronics Library folder.
  1. Launch Windows Explorer/My Computer and go to the following location:
    • Windows XP: C:\Documents and Settings\All Users\Documents\My Daktronics.
    • Windows Vista, 7 or 8: C:\Users\Public\Documents\My Daktronics
  2. Locate the Categories.xml, right-click and choose Open With and select Notepad.

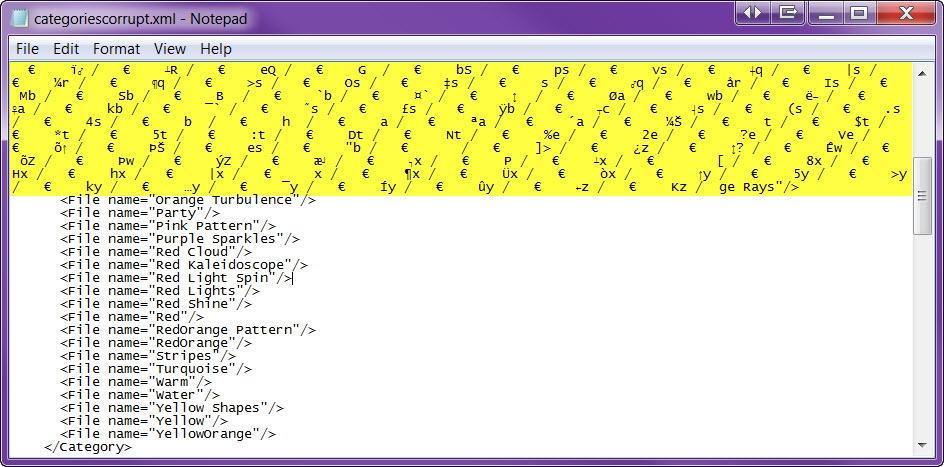

  3. If you see the following strange coding at the top, the categories file is corrupted. (File size could also be 0 KB and be blank).
    1. corruptcatagories.jpg
  4. Select the Categories.xml file and hit [Delete].
  5. Launch Venus 1500 Media Kit again to get a new categories.xml file to appear.
  6. Launch Content Studio again as normal.

KB ID: DD2558704
