How do I test Venus 7000 and DSTI communication

Topic

  • How do I test Venus 7000 and DSTI communication?

Environment

  • Venus 7000
  • DSTI

Steps

Note: Reference How to set up Stat Crew with the All Sport, DSTI, and Venus 7000, DD2167389 for more information on Stat Crew and DSTI setup.

  1. Open Venus 7000 Shell Program
  2. Verify the Venus 7000 Sign Service starts (the globe is spinning).
  3. From the Venus 7000 Shell program, click Diagnostics.

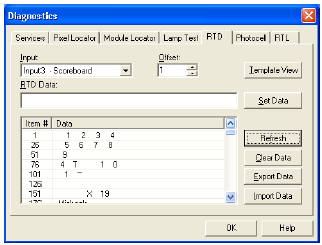

  4. Click the RTD tab.
  5. Select the Stat Crew input (default Input 3) as the Input. Note: Old data may still be present. click Clear Data to remove it.
  6. Open a competition in DakStats or Stat Crew, enter a play.
  7. After a moment, click Refresh to view new data. If communication is successful, data will appear.

  8. Select Template View to see the data in the default template selected for that RTD input.

           Note: This template isn't necessarily the one used in content creation, and is only there as a troubleshooting guide.

KB ID: DD2557300
