VIP-4060: How do I create a Translation Table

Topic

  • How do I create a VIP 4060 Translation table for single or multiple faces?

Environment

  • VIP-4060
  • PST, DVX, DVN

Steps

  • Refer to the images below for instruction. Your table should visually match the corresponding example below.

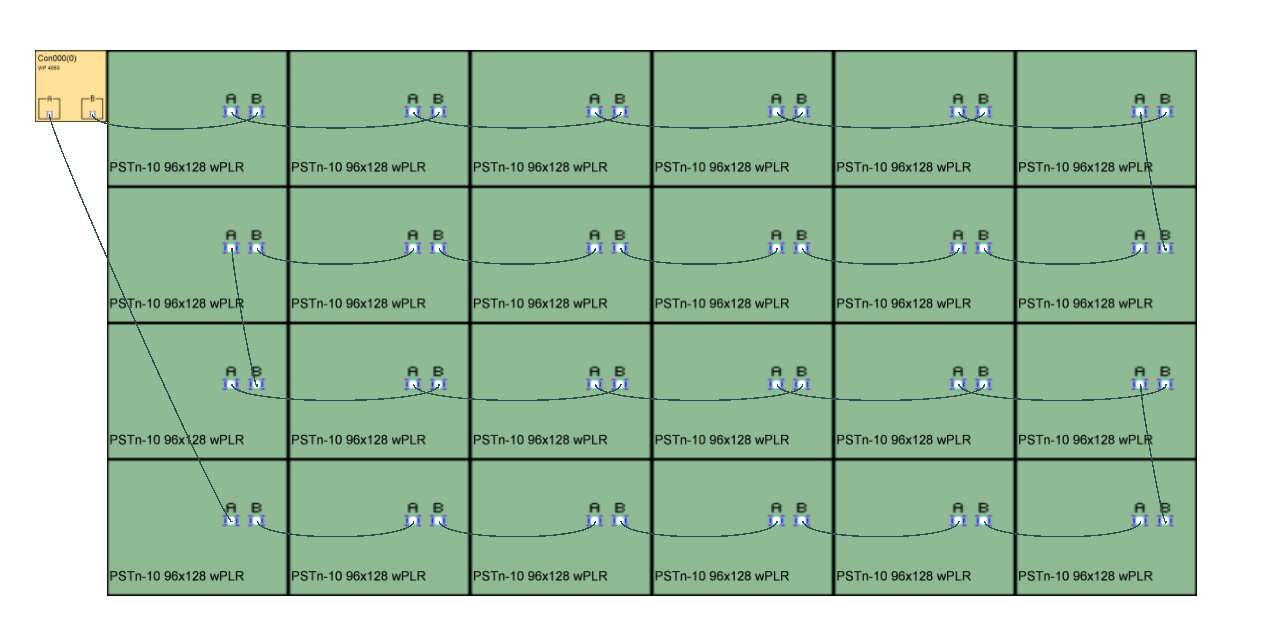

Single VIP 4060 and a Single Display

  • The return cable from the display output B, back to VIP 4060 input B, is used for redundancy and is not mandatory.

1 VIP 1 Display.png

Single VIP and Multiple Display Faces (same content on faces)

  • A change to the number of faces must be done.
  • Only one display will be shown in VTour.

1 VIP 2 Displays.png

Two VIP's and Single Display2 VIP 1 Display.png

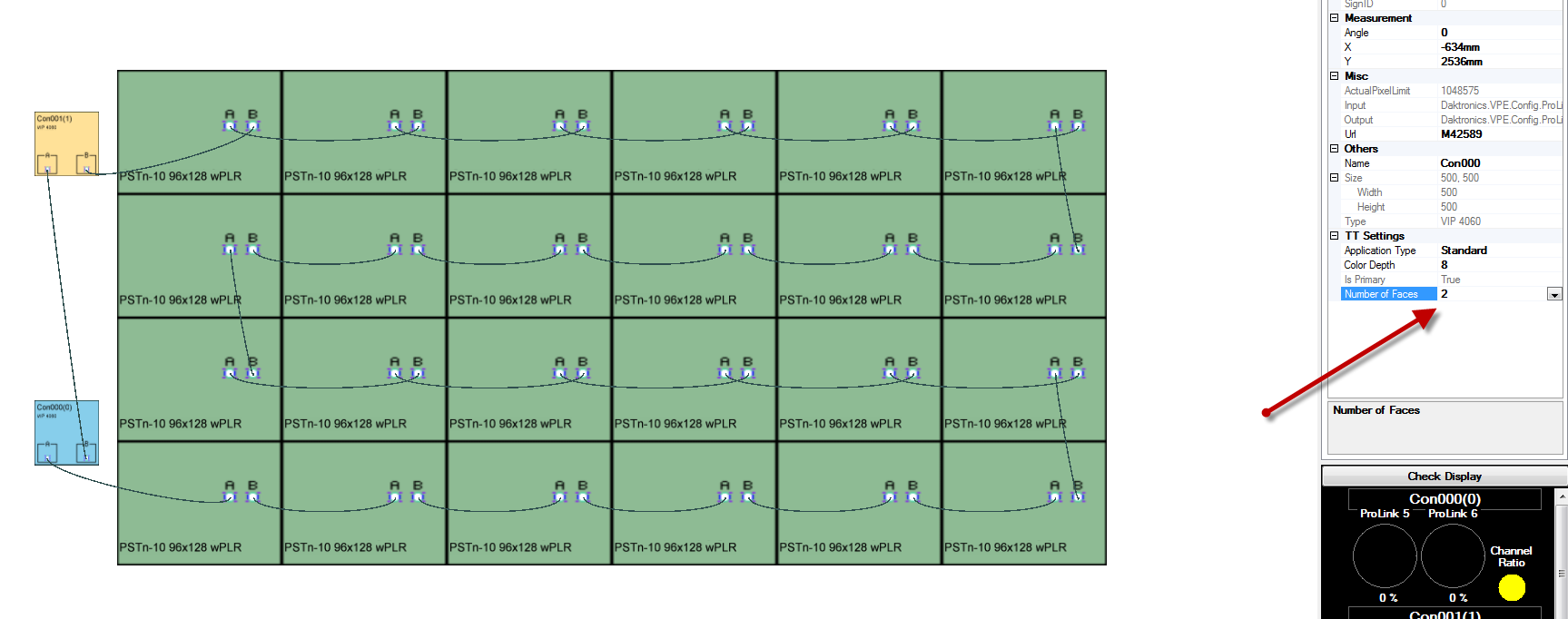

Two VIP's and Two Display Faces (same content on both displays)

  • A change to the number of faces must be done.
  • Only one display will be shown in VTour


2 VIP 2 Displays.png

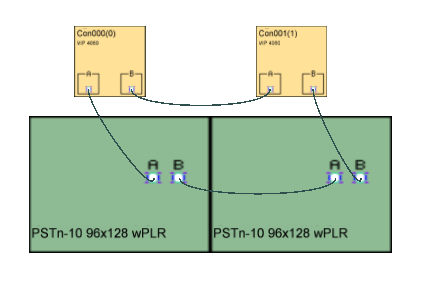

Physical Wiring for Multiple VIPs

 Refer to the images below for a visual example of wiring for systems with multiple VIPs.
What Faces actually looks like.pngHow faces TT is made.png


KB ID: DD2513643
