What Pins Output Power on a 0P-1229-2004 QC Card?
- What pins output power on the round 10 pin J32 connection on a 0P-1229-2004 quick connect (QC) card?
- Where can I measure voltage output on the outside of a QC card?
- What pins on the primary input QC card power an EBR client radio for M2 controller based displays?
- Product Family: Message Displays
- Product: AF-3200, AF-3220, AF-3400, AF-3700
- Components: Quick Connect Input

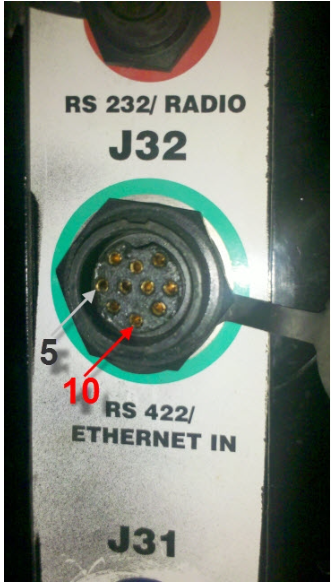

- Pins 5 & 10 on J32 output power (~ 12 VDC).
KB ID: DD2397025
