Fan in the display does not look the same as the replacement fan received
Potential Symptoms
- Fan does not look the same as fan received.
- Fan has a different vendor part number:
- Original fan has manufacturer part number: MA1751H1B01 by Jamicon.

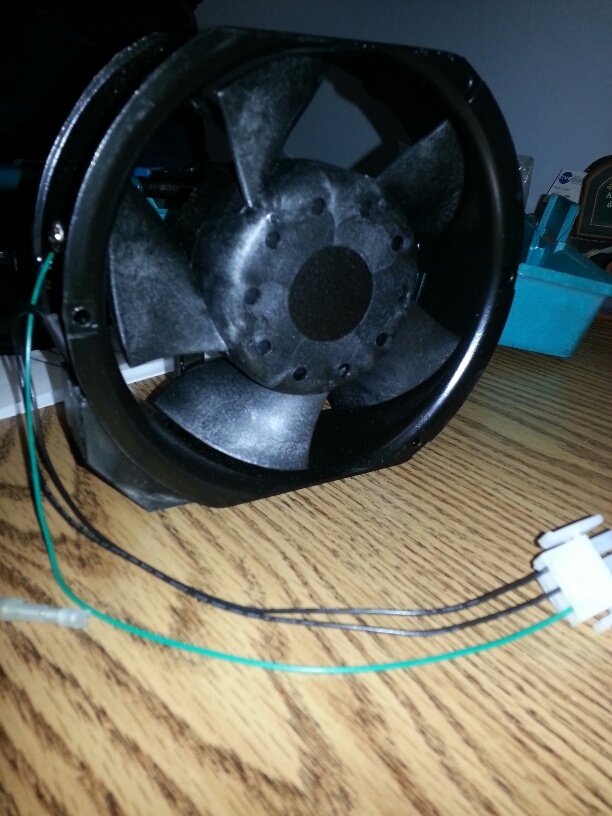

- Received replacement fan has manufacturer part number: UF15KC12 by Mechatronics.
- Fan power connections are not the same:
- Original fan has a 2 prong.
- Received replacement fan has a 3 pin Mate-N-Lok.
- Fan part inside sign is MODEL:UF15KC12 50/60 Hz 39/38 newer fans are too small
Environment
- ProStar Video Display
- Galaxy AF-3500 Display
- GalaxyPro GP4 Display
- Transportation
Cause
- Vendor change from Jamicon to Mechatronics.
Resolution
- Cut off 3-pin Mate-N-Lok connection.
- Use Scotch Locks to attach both the black wires to the existing fan cabling in the display.
- Tie back and secure the green ground wire somewhere out of the way.
KB ID: DD2317480
