How to register a COM Component for Venus 1500 v4
Topic
- How to register a COM Component for Venus 1500 v4
Environment
- Product Family: Software
- Product:
- Component:
- Control System: Venus 1500 V4, Windows Xp, Vista and Windows 7
Cause
- A Venus 1500 v4 V15NetSvr.dll component is not registered properly on the computer.
Resolution
- Close out of the Venus 1500 v4 software or installer.
- Go to Windows Start Menu.
- Windows XP - Click Run, type CMD, click ok.
- Windows Vista or 7 - In Search programs and Files, type CMD, right-click the filtered CMD option, and select Run as Administrator, click yes if prompted.
- In the Command Window type the following command:
- 32 Bit System type: cd C:\Program Files\Daktronics\Common files
- 64 Bit System type: cd C:\Program Files (x86)\Daktronics\Common files
- Hit [Enter] key.
- In the Command Window type the following command: dir
- Hit [Enter] key.
- In the Command Window type the following command:
- 32 Bit System type: regsvr32 "C:\Program Files\Daktronics\Common Files\V15NetSvr.dll"
- 64 Bit System type: regsvr32 "C:\Program Files (x86)\Daktronics\Common Files\V15NetSvr.dll"
- Hit [Enter] key.

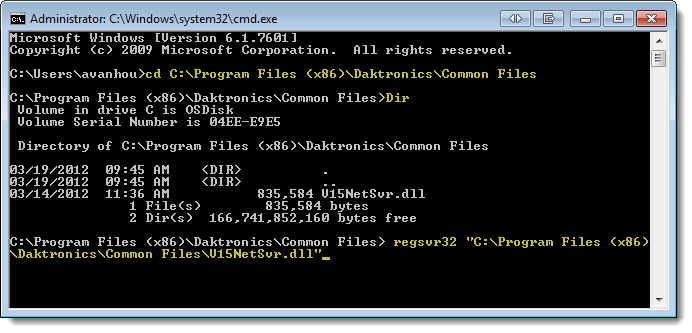

- Screenshot below is for a Windows 64 bit system.

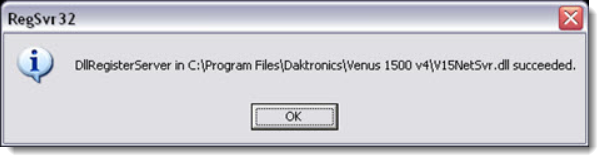

- If successful you will receive the below message:
- DllRegisterServer in C:\Program Files\Daktronics\Venus 1500 v4\V15NetSvr.dll succeeded.
- If not prompted to, restart the computer to complete the registry, then continue software install or connecting to the display.
KB ID: DD2287576
