How to verify correct power for a Panasonic web camera

Potential Symptoms

Verify the correct power for a Panasonic web camera

Environment

Panasonic Web Camera

Resolution

  1. Open the webcam by unscrewing the 2 enclosure screws on the side of the housing.
  2. At the rear of the camera, measure the AC voltage across the AC input screws (24 VAC should be present).
    • 24 VAC present: Correct voltage is getting to the webcam.
    • 24 VAC not present: Continue to next step.
  3. Disconnect the power cable from the rear of the display.
  4. Check for voltage across the 2 pin connection in the rear of the display.
    • 24 VAC present: Replace webcam cable going from display to the webcam.
    • 24 VAC not present: Continue with next step.
  5. Trace the wire inside the display from the 2 pin rear connector to the transformer.
  6. Check voltage directly from the transformer.
    • 24 VAC present: Replace cable going from transformer to 2 pin connector.
    • 24 VAC not present: Continue to next step.

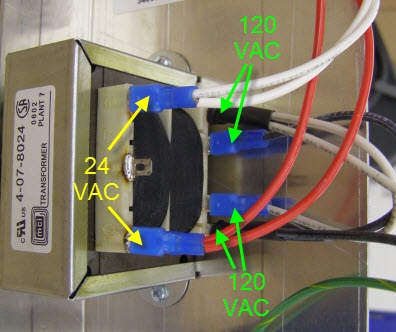

  7. Measure the incoming power to the transformer across the pins show in the picture above.
    • 120 VAC present: Replace transformer.
    • 120 VAC not present: Follow input power wires to the source and troubleshoot where the 120 VAC is being lost.

KB ID: DD2282570
