All Sport 1600: How to adjust dimming level

Potential Symptoms

  • Change the dimming level using an All Sport 1600

Environment

  • All Sport 1600
  • Scoreboard

Resolution

  1. Change dimming settings using a All Sport 1600 by:
    1. Turn on the All sport console and enter the appropriate sport code.

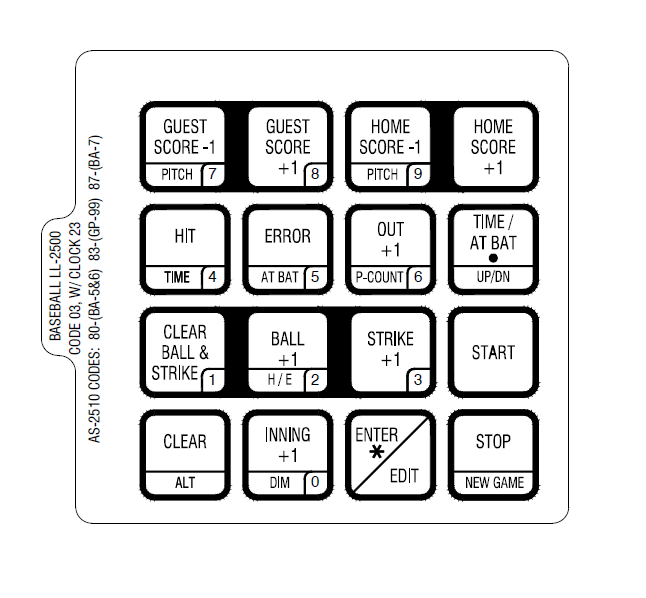

    2. Once on the main menu for the sport, press the Clear/Alt button.
    3. Press the 0 key, takes you to the dim settings menu.
    4. Press <0>zero through <9> to select the intensity for the digits on the scoreboard.
      1. Note: The default dimming level is 0 (zero) and is the suggested level for both indoor and outdoor use.
    5. Press Enter.


Additional Resources



KB ID: DD2268033
