Venus 1500: How do I add or remove a message/presentation or a playlist to or from a display?

Topic

  • How to send/add/create/publish/remove message/presentation to or from display in Venus 1500 V4?
  • How do I schedule messages/presentations to play in Continuous Mode/Scheduled Mode in Venus 1500 V4?

Environment

  • Product:
  • Component:
  • Control System: Venus 1500 V4

Steps

  1. Find the Venus 1500 V4 Software on your Desktop or in your Start Menu and double-click to launch.
  2. Select a Display if a display/group was not automatically selected for you.
  3. Go to the Schedule Tab and adjust the playlists as per your selected Playlist Mode (Continuous or Scheduled).
​​​​​​​​​​​​​​CONTINUOUS PLAYLIST MODE:

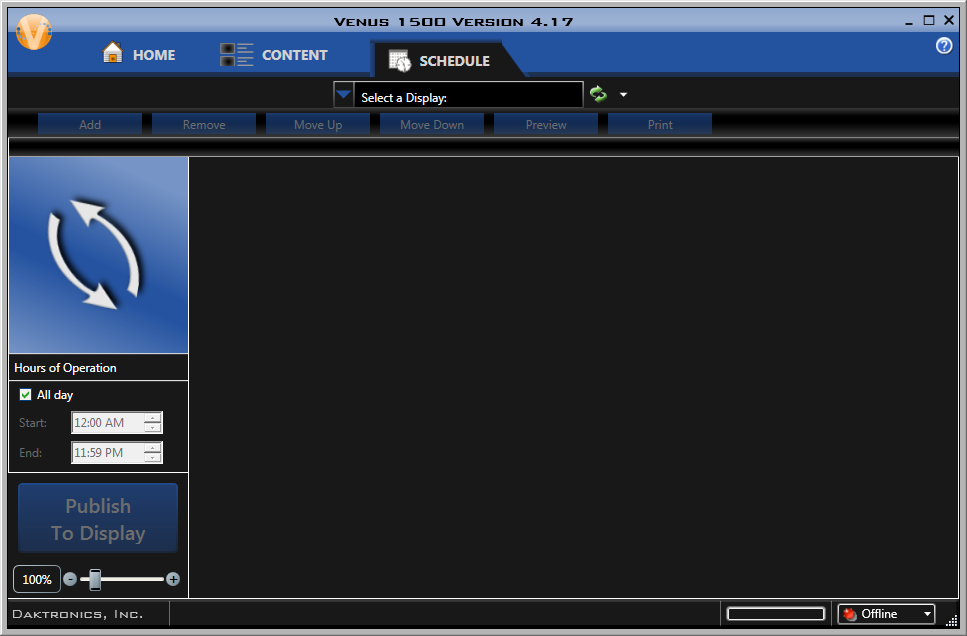

  • You will see refresh arrows on the left side of the Schedule tab:
    •
To Schedule in Continuous Mode:
    1. Add or remove desired presentations by doing the following:
      • Add by clicking the Add button, then browse and select desired presentation(s) to add to playlist.
      • Remove by selecting and highlighting the desired presentation(s) and clicking the Remove button.
    2. Click the Publish to Display button in the bottom left corner.

SCHEDULED PLAYLIST MODE:

    • You will see Calendars on the left side of the Schedule tab:

To Schedule in Scheduled Mode:
  1. Click Add > Playlist to add a new playlist.
    1. Or Double-click on an existing playlist to edit.
    2. Or Double-click on a specific date and time in the calendar.
    3. Add or remove desired presentations by doing the following:
      • Add by using the green [+] Plus sign, then browse and select desired presentation(s) to add to playlist.
      • Remove by selecting and highlighting the desired presentation(s) and clicking the green [-] Minus sign.
    4. Add/Edit the desired Start and End Dates and Times.
    5. Click the OK button to save changes.
    6. Click the Publish to Display button in the bottom left corner.
To view videos relating to scheduling playlists, please click on the following tutorial links:

KB ID: DD2093330
